Modulift CMOD 250 User Instructions

User Instructions
CMOD 250 Spreader Frame
The CMOD Spreader Frame is modular in span and every frame consists of 4 Corner Units,
with intermediate Struts that can be bolted into the assembly to achieve different spans.
CMOD 250 has an assembled span ranging from 2m by 2m to 20m by 20m and all spans inbetween.
Assembled
Frame
β
P1
Strut

CMOD 250 Frame Specification

Rated at a maximum of 300 tonnes WLL.
● ●
Please see Table 2 for WLL at specific spans.
'Sling to Vertical' angle, β, 45 degrees or less.
● ●
Corner Units are rated at 75 tonnes each
● ●
(300 tonnes combined capacity).
Bolt tightening torque: 250Nm. Spanner size required: 36mm.
● ●
Recommended additional equipment: Torque Wrench, Podger Spanner and Ring Spanner.
● ●

WARNING!

Personnel using this system should be suitably trained, competent and have a clear
● ●
understanding of Safe Slinging procedures.
The use of Modulift equipment must be in accordance with the procedures laid down in
● ●
'Lifting Operations and Lifting Equipment Regulations 1998' (LOLER).
Never exceed stated WLL
● ●
The top sling length is critical to the safe use of the spreader
● ●
Modulift UK Ltd tel: +44(0)1202 621511 email: sales@modulift.com www.modulift.com

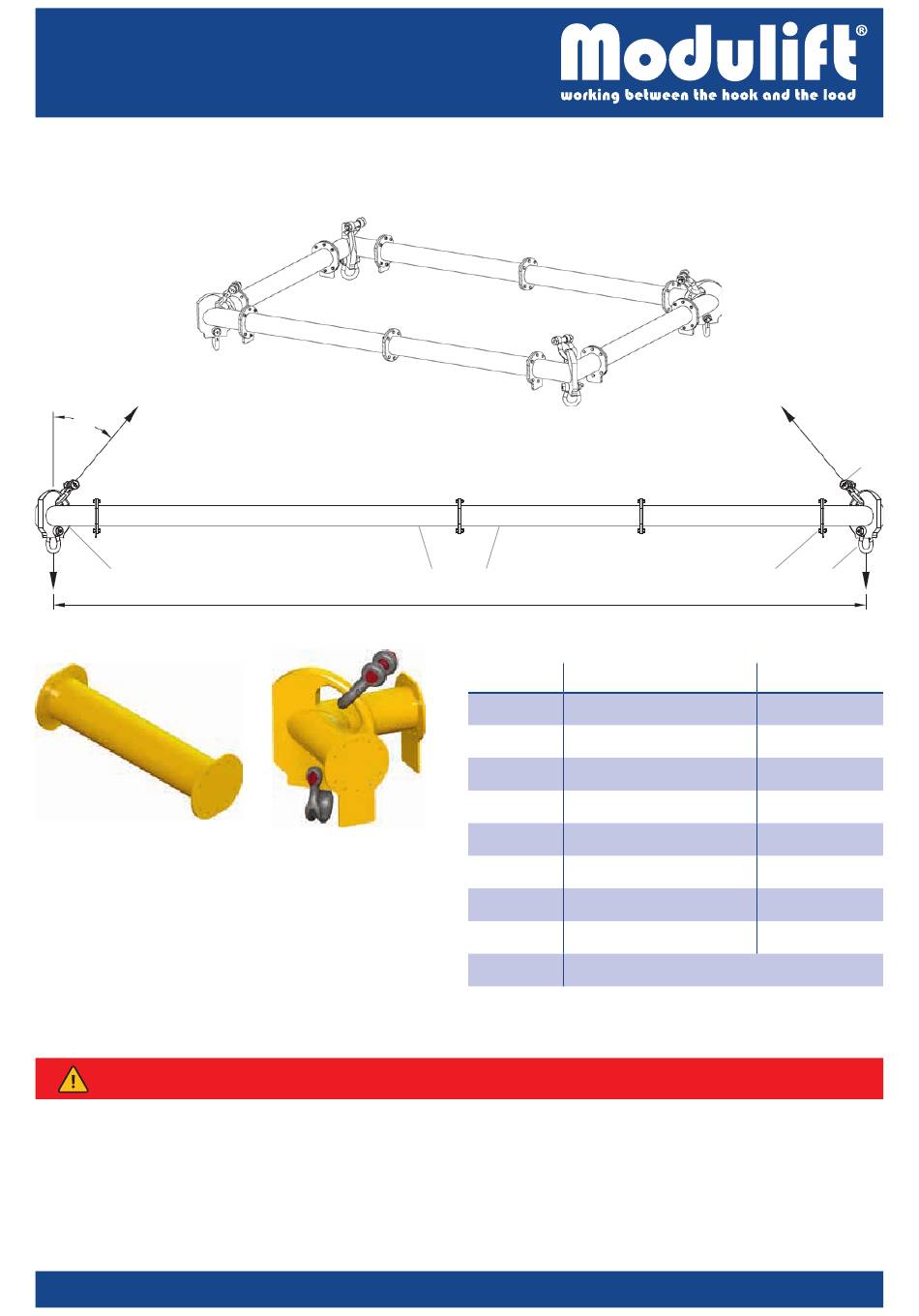

Fig. 1 – Typical CMOD Spreader Frame Assembly
β = Sling to vertical angle (STV)
Span
Corner Unit
– Adhere to WLL in Table 2 for particular sling angle used.
P2–P6
Table 1 – Component List
Part Ref. Description
P1 Corner Unit
P2 6.0m Strut
P3 3.0m Strut
P4 2.0m Strut
P5 1.0m Strut
P6 0.5m Strut
P7 150t Heavy Duty Shackle
P8 125t Wide Body Shackle
P9
M24 x 80, Grade 8.8, HT Bolts, Nuts & Washers
– Ensure you refer to the correct table.
P9 P8
Weight/item
1190kg
(
length 1m each)
860kg
495kg
375kg
255kg
192kg
160kg
92kg
P7
