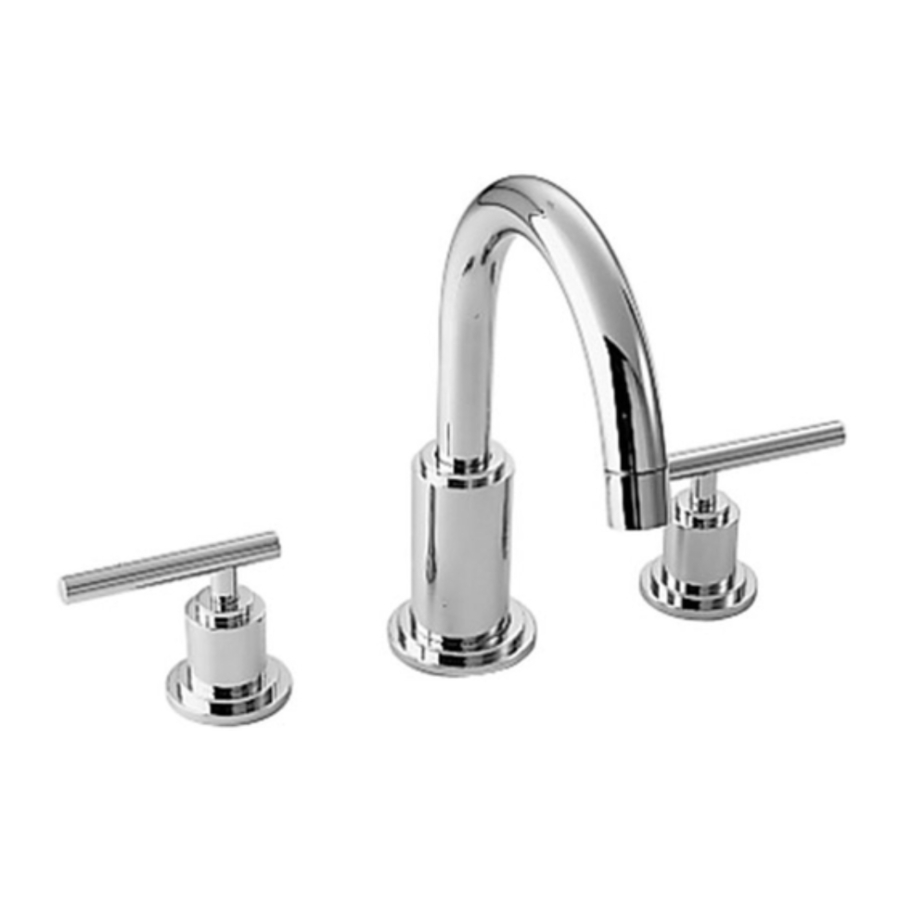

JADO New Haven 826/003, New Haven 826/103 -Faucets Installation Manual

TOOLS REQUIRED

ROUGHING-IN DIMENSIONS

SPOUT ASSEMBLY

Turn off hot and cold water supplies before beginning.

• From underside of faucet body install POP-UP ROD (9) with threaded end up into SPOUT STUD (4) of faucet. Hold POP-UP KNOB (10) in recess of faucet body and thread POP-ROD (9) into POP-UP KNOB (10). See View "A".

• Seat O-RING (1) into groove in SPOUT ESCUTCHEON (2). Insert SUPPLY HOSES (3) AND SPOUT STUD (4) through center hole of lavatory or mounting surface.
• Assemble RUBBER WASHER (5), RETAINING WASHER (6) and LOCKNUT (7) onto threads of SPOUT STUD (4) from underside of lavatory or mounting surface.
• Align SPOUT ASSEMBLY (8) and tighten LOCKNUT (6).

INSTALL VALVE BODIES AND HANDLES

• HANDLE ASSEMBLIES (1, 1A) are installed on VALVE BODIES (2) and must be removed to install VALVE BODIES (2) from under tub deck or mounting surface.
• To remove HANDLE ASSEMBLY (1), unthread HANDLE BASE (3) with LEVER (4) from VALVE BODY (2). Pull HANDLE ASSEMBLY(1) off VALVE STEM (5).
• Unthread and remove MOUNTING RING (6) and SPACER (7).
• Thread LOCKNUT (8) to bottom of VALVE BODY (2). Make sure FIBER WASHER (9) and RUBBER WASHER (10) are installed. Insert VALVE BODY (2) through mounting hole from underside of tub deck or mounting surface.
  Note: VALVE BODY marked Hot is installed in the left Mtg. hole, VALVE BODY marked Cold in the right when facing front of fitting. Maximum mounting surface thickness is 1-3/4".
• From top install SPACER (7) onto VALVE BODY (2). Thread MOUNTING RING (6) on VALVE BODY (2) until seated tightly against SPACER (7). Set VALVE BODIES (2) so that their outlets are facing toward SPOUT STUD (11) and then tighten LOCKNUT (8) using 35mm or adjustable wrench.
• Insert FIBER WASHERS (12) into COUPLING NUTS (13) of SUPPLY HOSES (14) and tighten making water tight connection.
  Important: Loop SUPPLY HOSES (14) as illustrated so they do not kink.

INSTALL HANDLES (LEVER and CROSS)
Turn VALVE BODIES (2) to off position. Install ESCUTCHEON (15) onto VALVE BODY (1). Align HANDLES as shown or as desired and install HANDLE ASSEMBLY (1, 1A) onto VALVE STEM (5). Thread HANDLE BASE (3) onto VALVE BODY (2) until seated tightly against ESCUTCHEON (15).

INSTALL POP-UP DRAIN

• A FOAM SEAL (1) is installed on underside of FLANGE (2). (Plumbers Putty may be used in place of FOAM SEAL (1) if desired.)
• Drop FLANGE (2) into LAVATORY DRAIN (3). From below assemble RUBBER GASKET (4), PLASTIC WASHER (5) and LOCK NUT (6) onto DRAIN FLANGE (2). Do not tighten fully.

• Inspect inside DRAIN BODY (7) that SEAL (8) is installed. Thread DRAIN BODY (7) tight against FLANGE (2) to make a water tight seal.
• The PIVOT ROD OPENING (9) in DRAIN BODY (7) should face the rear of the lavatory. Tighten LOCK NUT (6) on FLANGE (2) to make a water tight connection with channel locks. Do not over tighten.
• Apply sealant or Teflon tape to threads of TAILPIECE (10) and thread into DRAIN BODY (7) making a water tight seal.

• Assemble PIVOT ROD (11), and PIVOT NUT (12) as shown. Install CONCAVE WASHER (19) into PIVOT ROD OPENING (9) if not preinstalled. Hand tighten PIVOT NUT (12). Drop STOPPER (13) into drain. ( To vandal proof drain rotate STOPPER (13) so PIVOT ROD (11) goes through EYE (14) of STOPPER (13). Make connection to "P" TRAP.
• Assemble POP-UP SWIVEL (15) to PIVOT ROD (11) but do not tighten. Drop POP-UP ROD (16) through other hole in POP-UP SWIVEL (15) and tighten SET SCREW (17)
• Adjust STOPPER (13) height by repositioning POP-UP ROD (16) in SWIVEL (15) and tightening SET SCREW (18).

WATER SUPPLY CONNECTIONS

NOTE: FLEXIBLE SUPPLIES OR BULL-NOSE RISERS MUST BE PURCHASED SEPARATELY.

• Connect water supply to VALVE BODIES (1) with 1/2" IPS FLEXIBLE SUPPLIES (3) or 3/8" O.D. BULL-NOSE RISERS (4). Use wrench to tighten connections.
• Do not over tighten. Be careful not to kink copper supply when bending. Use tubing cutter to cut to proper length.

TEST INSTALLED FAUCET AND CONNECTIONS FOR LEAKS

• Remove Aerator from faucet.
• With HANDLES (1) in OFF position, turn on WATER SUPPLIES (2) and check all connections for leaks.
• Operate both HANDLES to flush water lines thoroughly.
• Operate LIFT ROD (3) and fill lavatory with water. Check that DRAIN STOPPER (4) makes a good seal and retains water in lavatory. Adjust stopper height by repositioning Lift Rod (3) and tightening SET SCREW (5).
• Release DRAIN STOPPER (4) and check all drain connections and "P" trap for leaks. Tighten if necessary.
• Replace Aerator.

HELPFUL HINTS FOR CLEANING AND MAINTENANCE

The solid brass product you have just purchased has been designed to give you years of beauty and service. It is important to bring to your attention proper care and maintenance procedures, which will ensure its lasting beauty.

• First and foremost, it is important (as it is with any fine piece of jewelry or furniture) that the product be wiped clean and dry with a soft damp cloth after every use.
• Second, under no circumstances should an abrasive cleaner or combination cleaner/polish be used on JADO products. The abrasive nature of such products will eventually destroy the finish and void the warranty.
• In the event of stubborn blemishes shown on the finish, we recommend use of Windex window cleaner with a soft cloth, but we do not recommend it be used on an everyday basis.
• It is important to note that it is normal to expect signs of usage over time.

Thank you for selecting JADO for your home.
