IMPORTANT INSTRUCTIONS & OPERATING MANUAL
Read and understand this entire owner's manual, including all safety
information, before plugging in or using this product. Fail to do so could
WARNING
result in fire, electric shock, or serious personal injury.
Keep this owner's manual for future reference. If you sell or give away this
CAUTION
product,make sure this manual accompanies this product.

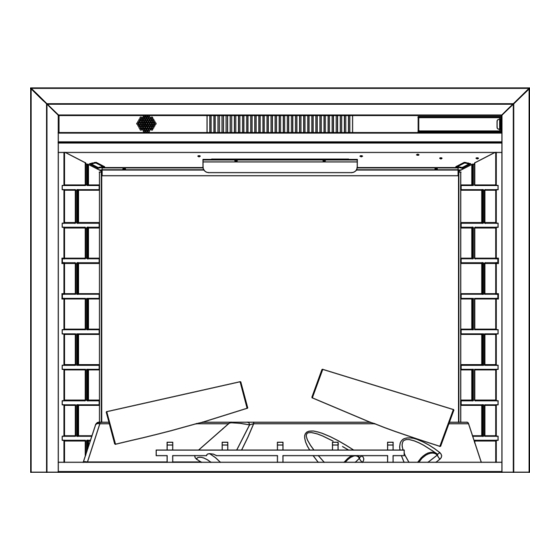

HOUSELUX TRIM 23(EF23T)
HOUSELUX TRIM 26(EF26T)
HOUSELUX TRIM 28(EF28T)
HOUSELUX TRIM 30(EF30T)
HOUSELUX TRIM 33(EF33T)
HOUSELUX TRIM 33W(EF33WT)
NO VENTING REQUIRED
120V AC; 60 Hz; 1500 Watts
