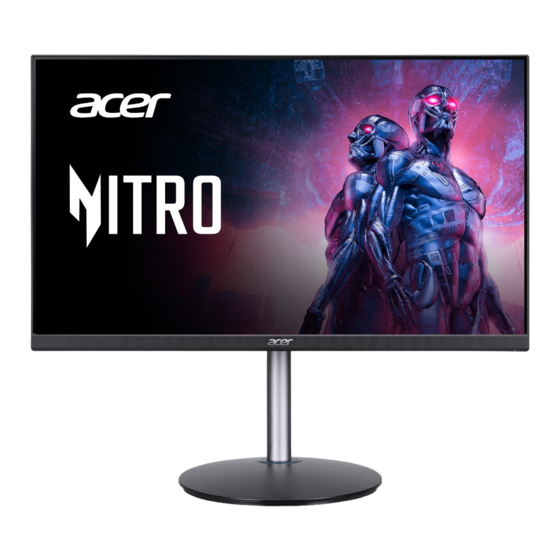

Acer XFA243Y User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for Acer XFA243Y

Summary of Contents for Acer XFA243Y

  • Page 10 DISPLAY DATA CHANNEL(DDC) STANDARD TIMING TABLE...

  • Page 11: Hdmi Cable

    UNPACKING Please check the following items are present when you unpack the box, and save the packing materials in case you will need to ship or transport the monitor in future. * Below items shown here is indicative only. The actual product may be different.

  • Page 12: Attaching/Removing The Base

    ATTACHING/REMOVING THE BASE Note: Remove the monitor and monitor base from its packaging. Carefully place the monitor face-down on a stable surface -- use a cloth to avoid scratching the screen. 1. Attach the monitor stand arm to 2. Ensure that the base is screwed tight the base.
  • Page 13 Follow these instructions to remove the base from the monitor. Note: Carefully place the monitor face down on a flat surface-sue a cloth pad to prevent scratching the screen. 1. Push up the split button to separate 2. Remove the screws that connect to the base from the monitor.

  • Page 14: Screen Position Adjustment

    SCREEN POSITION ADJUSTMENT In order to optimize the best viewing position, you can adjust the height/tilt/Pivot/ Swivel of the monitor. • Tilt Please see the illustration below for an example of the tilt range. -5° • Height Adjustment After pressing the top of the monitor then you can adjust the height of the monitor.

  • Page 15: Monitor Pivot

    • Monitor Pivot Before rotating the display, lift it to the top position and then push it back to the utmost degree. Rotate until the monitor stops at 90°. • Swivel With the built-in pedestal, you can swivel the monitor for the most comfortable viewing angle.
  • Page 17 Type 1:Amber Type 2:LED flashes...
  • Page 19 15-pin color display signal cable Threading Explanations Threading Explanations +5 V Green Logic ground Blue Monitor ground Monitor ground DDC-continuous data DDC return Line sync signal Red-ground Field sync signal Green-ground DDC-continuous clock Blue-ground 24-pin USB Type C cable PIN No. Signal Assignment PIN No.
  • Page 20 Mode Resolution Remark 640x480 60Hz 640x480 72Hz 640x480 75Hz 640x480 66.66Hz VESA 720x400 70Hz 800x600 56Hz 800x600 60Hz SVGA 800x600 72Hz 800x600 75Hz 832x624 74.55Hz 1024x768 60Hz 1024x768 70Hz 1024x768 75Hz 1152x870 75Hz 1152x864 75Hz VESA 1280x960 60Hz 1280x1024 60Hz SXGA 1280x1024 75Hz...
  • Page 21 1. Turn off your computer and unplug the power cord. 2. 2-1 C onnect Video Cable a. Make s ure both the monitor and computer are powered-OF F . b. Connect the VGA cable to the computer. (Optional) 2-2 Connect HDMI Cable (Only HDMI-input model) (Optional) a.
  • Page 22 Note:The location and names of the function buttons and power button on the monitor may vary according to monitor model,and some button may not available for some models. Type1 HotKey 1,2 buttons. Press to activate user defined hotkey function. Type2 Power Type3-1 Type3-2...
  • Page 23 Using the Shortcut Menu The button and the actual functions depend on detail model.Some functions might be grayed if the model can not support . Note:Please select the button function operation according to the actual button type. The button of Type 1 The button of Type 2...
  • Page 24 The button of Type 3 The button of Type 1 The button of Type 2 The button of Type 3 The button of Type 3-2 Open the Function page to select the menu function,and then use the Button Menu/Navi/Ok to adjust the settings you need.When finished, Pull left the Button Menu/Navi/Ok to return to the previous level or exit the menu.
  • Page 25 Adjusting the Setings Use buttons to open the OSD and navigate to the Settings you need. The button of Type 1 Use Buttons 1/2 to select the Settings you need from the OSD. The button of Type 2 Use Buttons 1/2 to select the Settings you need from the OSD. The button of Type 3-1 Using the Navi/Ok button, to select the Settings you need from the OSD.

  • Page 26: Adjusting The Picture

    Adjusting the Picture Mode - Standard Picture Brightness Color Contrast Audio Standard Low Blue Light Black Boost Gaming System Super Sharpness 1. Brightness: Adjust the brightness from 0 to 100. Note: Adjusts the balance between light and dark shades. 2. Contrast: adjust the contrast from 0 to 100. Note: Sets the degree of difference between light and dark areas.
  • Page 27 Mode - Standard Picture Gamma Color Color Temp. Warm Audio R Gain Gaming G Gain B Gain System R Bias G Bias B Bias Mode - Standard Picture Modes Color Space Standard Color Grayscale Mode Audio Gaming 6-axis Hue 6-axis Saturate System Color Space: Select your prefered Color Space.
  • Page 28 Mode - Standard Picture Volume Color Mute Audio Gaming System FreeSync Ultra-Low Latency FreeSync Premium Ultra-Low Latency...
  • Page 29 Freesync Premium Pro Ultra-Low Latency Adaptive-Sync Ultra-Low Latency /Freesync Premium/Freesync Premium Pro/Adaptive-Sync If FreeSync /Freesync Premium//Freesync Premium Pro/Adaptive-Sync is ”OFF”, then the user can set Over Drive to...
  • Page 30 cards only. Freesync Premium: Select On or Off.Freesync Premium is available for AMD supported graphic cards only. Freesync Premium Pro: Select On or Off.Freesync Premium pro is available for AMD supported graphic cards only. Adaptive-Sync: Select On or Off. Adaptive-Sync is available for AMD supported graphic cards only.
  • Page 31 Mode - Standard Picture Language English Color OSD Timeout Audio Transparency OSD Lock Gaming System Note: 1. For Side 9 key，Must press Navi Key in the middle to unlock OSD. 2. For side/Bottom 1/5key，except power key can be unlocked.
  • Page 32 Mode - Standard Picture Input HDMI2 Color Ambient Light Audio Auto Source Gaming Hot Key Assignment Wide Mode Full System PIP/PBP DDC/CI Mode - Standard Picture HDMI Black Level Normal Quick Start Mode Color Audio Power-off USB change Ambient Light:Adjust the lighting effects, color, and style. 6.
  • Page 33 Mode - Standard Picture Color 1280x720 Audio H/V Frequency H:45KHz V:60Hz Gaming Mode Normal Series Number System Information HDMI1[2.0] 1920x1080 H/V Frequency H:55KHz V:60Hz Mode Normal Series Number Exit Move...
  • Page 35 LED flashes...

  • Page 36: Eu Declaration Of Conformity

    EU Declaration of Conformity XFA243Y XFA243Y EN55032:2015+A1: 2020 Class B EN 55035:2017+A11: 2020 EN IEC 61000-3-2:2019+A1:2021 Class D EN 61000-3-3:2013+A2:2021 EN IEC 63000: 2018 Feb. 23,2022 Acer Incorporated (New Taipei City)
  • Page 37 XFA243Y XFA243Y xxxxxx (“x” = 0~9, a ~ z, A ~ Z, or blank)
