Corinex VoIP USB Phone User Manual

Corinex voip usb phone user's guide

Advertisement

Quick Links

Corinex
VoIP USB Phone
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VoIP USB Phone and is the answer not in the manual?

Questions and answers

Summary of Contents for Corinex VoIP USB Phone

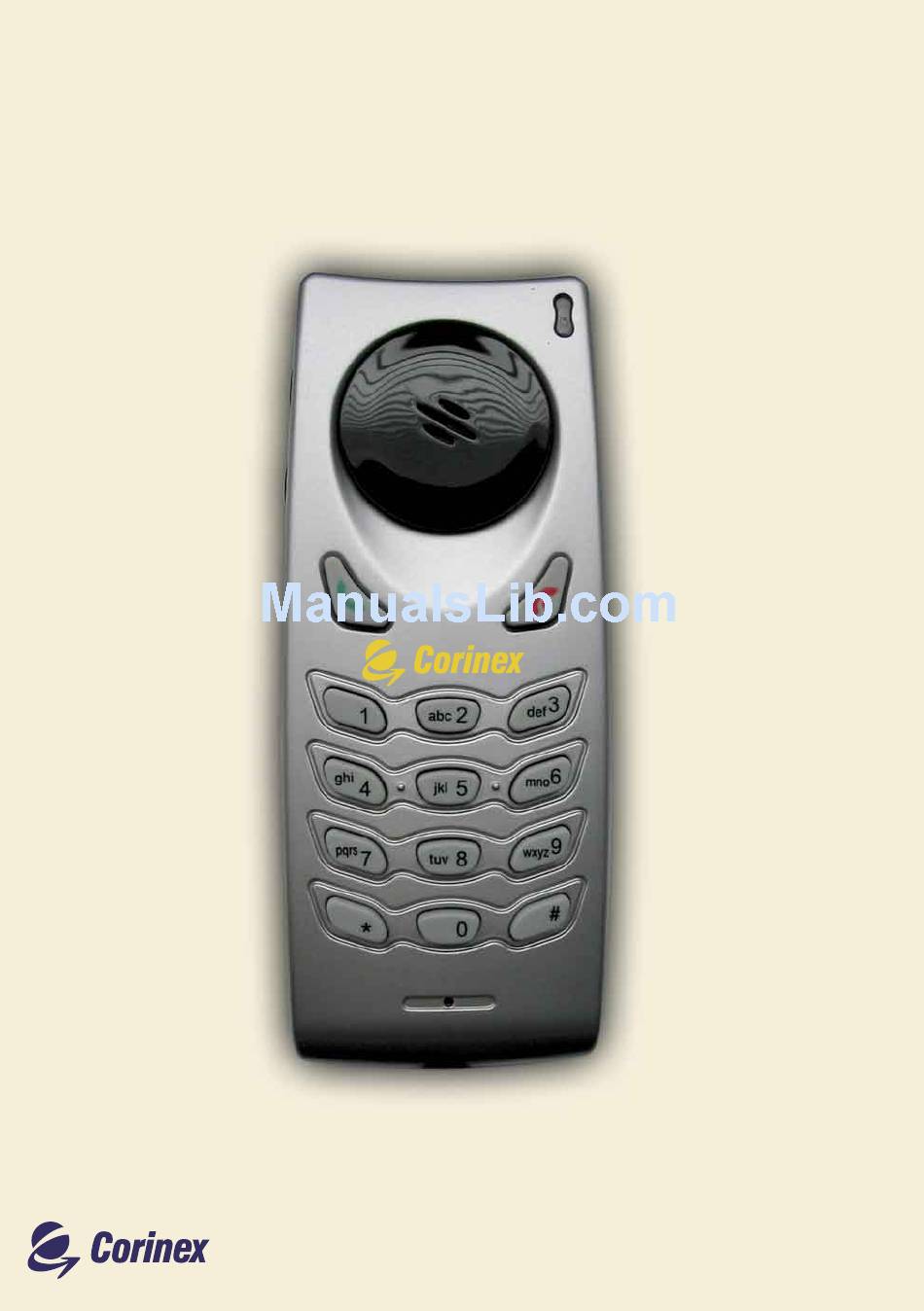

  • Page 1 Corinex VoIP USB Phone User Guide...
  • Page 4: Copyright

    Microsoft Corporation in the U.S.A. and/or other countries. All products or company names mentioned herein may be the trademarks of their respective owners. Copyright (c) 2001-2004 by Corinex Communications Corp. 2004-05-28 ver.1.0 Corinex VoIP USB Phone User Guide...
  • Page 5: Quick Start

    2. Start your voice communication software and set it up to use the phone as the output/input device. You can use an existing service or Corinex softphone that comes on the included CD. 3. You are ready to make calls over the Internet Corinex VoIP USB Phone User Guide Quick start...
  • Page 6: Table Of Contents

    Introduction ... 4 Overview ... 4 Package Content ... 4 System Requirements ... 5 Using Corinex VoIP USB Phone ... 6 Hardware installation ... 7 Using the USB phone with NetMeeting ... 7 Using the USB phone with Skype ... 11 Using the USB phone with Corinex Softphone ...
  • Page 7: Introduction

    SIP protocol, for making PC-to-PC or PC-to-Phone calls. 1.2 Package Content When you receive your Corinex VoIP USB Phone, check to be sure that your package contains: • Corinex VoIP USB Phone with USB Cable • Installation CD containing the Corinex Softphone software and this...
  • Page 8: System Requirements

    • Can be set up to work with any VoIP service provider supporting the SIP-protocol • Direct communication with the Corinex VoIP USB Phone buttons • Call log (outgoing, incoming and missed calls) • Phonebook • Different skins • Customizable WAV ring tones •...
  • Page 9: Using Corinex Voip Usb Phone

    Using Corinex VoIP USB Phone You can use the Corinex VoIP USB Phone in two ways: 1. As an audio input/output device in combination with common 3rd party software supporting voice communication (read more in chapter 2.2 and 2.3) 2. As the interface for controlling the Corinex Softphone software included on the CD, which enables you to use VoIP services of different providers (read more in chapter 3.)
  • Page 10: Hardware Installation

    2.1 Hardware installation This section outlines how to connect your Corinex VoIP USB Phone to your computer. The installation is very simple, all you need to do is to connect the phone’s cable to the USB port of your computer. The red status LED on the phone will be on.
  • Page 11 Using Corinex VoIP USB Phone 1. Start NetMeeting and click on Tools -> Options. Then go to the tab Audio. Corinex VoIP USB Phone User Guide...
  • Page 12 Click Next to continue to the next screen. 3. Here you can select the audio device for input/output. Please select the K1000A device (USB Audio Device in Windows 98/2000) and click Next. Using Corinex VoIP USB Phone Corinex VoIP USB Phone User Guide...
  • Page 13 4. On the next two screens you can adjust volume for playback and recording. After this setting, click Next and finish the configuration wizard. The NetMeeting software is now configured to use the USB Phone for making and receiving voice calls. Corinex VoIP USB Phone User Guide...
  • Page 14: Using The Usb Phone With Skype

    PC speaker for ringing with checking the option Ring PC Speaker. 3. Click Save to accept the changed configuration. Skype is now ready to be used with the Corinex VoIP USB Phone. Using Corinex VoIP USB Phone Corinex VoIP USB Phone User Guide...
  • Page 15: Using The Usb Phone With Corinex Softphone

    Using the USB phone with Corinex Softphone The Corinex VoIP USB Phone comes with a CD including the Corinex Softphone software which enables you to use VoIP services of different providers. In order to use it, you have to sign up to a provider first and get the access information necessary to start making phone calls.
  • Page 16 Fill in the fields your personal information and continue with the Next button. After this, your number and password will be sent to your e-mail address. To start using the service you’ve just signed up to, please proceed to chapter 3.2. Corinex VoIP USB Phone User Guide...
  • Page 17: Addavoice

    Follow the steps on the screen to go through the sign-up process. After submitting all necessary information, your number and password will be sent to your e-mail. To start using the service you’ve just signed up to, please proceed to chapter 3.2. Corinex VoIP USB Phone User Guide...
  • Page 18: Sip Phone

    To sign up to this operator, open your Internet browser application and go to the web site http://www.sipphone.com Then click on the link My SIPphone. Now click on the link Sign up which is located at the middle of the text. Corinex VoIP USB Phone User Guide...
  • Page 19 The appropriate link to continue is located at the bottom of the web page. Click on it (Click here). A security alert may appear. To continue, click on the Yes button. Then fill out the fields with your personal information and click on the Register button. Corinex VoIP USB Phone User Guide...
  • Page 20 Using the USB phone with Corinex Softphone Your number and password will be sent to your e-mail address. To start using the service you’ve just signed up to, please proceed to chapter 3.2 Corinex VoIP USB Phone User Guide...
  • Page 21: Software Installation

    3.2 Software installation In order to be able to use the Corinex VoIP USB Phone with VoIP services from different operators, you have to install the Corinex Softphone client first. 1. Insert the installation CD, it should start automatically. If not, start the application by selecting My Computer, usually found on the desktop or Laptop start up screen.
  • Page 22 Please click on I agree to confirm that you have read and understood the copyright notice. Click on Next to continue to the next screen. 5. The next screen asks you where to install the Corinex Softphone. Click Next to continue. Corinex VoIP USB Phone User Guide...
  • Page 23 7. The installation guide creates a shorcut on your desktop. Once the Corinex Softphone is installed on your computer, you have to start it and make the initial settings described in the next chapter. Using the USB phone with Corinex Softphone Corinex VoIP USB Phone User Guide...
  • Page 24: Using The Corinex Softphone Software

    VoIP service provider. If you have not signed up to any service provider yet, please read chapter 3 or click the link on the bottom Sign up to a VoIP service provider. Using the Corinex Softphone software Corinex VoIP USB Phone User Guide...
  • Page 25: Advanced Configuration

    -User A has IP address 192.168.0.2, SIP port 5060 and RTP port 8000 -User B has IP address 192.168.0.3, SIP port 5061 and RTP port 8001 -The router should forward all UDP packets directed to ports 5060 and Using the Corinex Softphone software Corinex VoIP USB Phone User Guide...
  • Page 26 Free World Dialup as seen below. Now the software is waiting for your input, either using the interface on the screen or using the Corinex VoIP USB Phone. Using the Corinex Softphone software Corinex VoIP USB Phone User Guide...
  • Page 27: Using The Corinex Softphone

    / password. You probably entered them wrong. Please check the configuration. The application was not able to find an authentication server at the address you entered in the settings. Please check the configuration. Corinex VoIP USB Phone User Guide...
  • Page 28 The Softphone is connected and you are able to use the services of the VoIP service provider. Meaning If you dial a number using either the phone keyboard or the Softphone’s buttons, number displayed. Corinex VoIP USB Phone User Guide being...
  • Page 29 The dialed party rejected your call. The dialed number does not exist. The number you are dialing is busy. Along with this message, you will hear a busy tone in the earphone. Corinex VoIP USB Phone User Guide...
  • Page 30: Phone Controls

    Using the Corinex Softphone software During a call, the codec used for communication is displayed. The Softphone sent a request for ending the ongoing call. The call was ended. USB Phone status Minimize Playback volume Cancel Corinex VoIP USB Phone User Guide...
  • Page 31 The USB phone is not connected Functionality of the Dial button Opens the call log with last dialed, received and missed calls Accepts the call Dials the number which is selected Dials the contact which is selected Corinex VoIP USB Phone User Guide...
  • Page 32 Softphone application, in the table below. Using the Corinex Softphone software Functionality of the Cancel button Resets the SIP module Deletes the last typed character Rejects the call Ends the call Returns to the standby mode Corinex VoIP USB Phone User Guide...
  • Page 33: Making A Voip Call

    Deletes the last character Returns to standby mode Returns to standby mode Types character Moves up in the list Deletes contact Deletes the call log Moves down in the list Opens the phonebook Corinex VoIP USB Phone User Guide number selected...
  • Page 34 The Corinex Softphone contains a user customizable phonebook, where you can store numbers of people who you usually call, so you don’t need to remember the numbers. Using the Corinex Softphone software Type of call Outgoing Incoming Missed Corinex VoIP USB Phone User Guide...
  • Page 35 Deleting contacts If you want to delete a contact from the phonebook, select it in the phonebook using the mouse or the phone keys and press the key 3. Using the Corinex Softphone software Corinex VoIP USB Phone User Guide...
  • Page 36: Configuration Of The Softphone

    Login field is greyed-out and you cannot edit it. This means, the provider doesn’t require this information. You may enter your nickname into the Nickname field, which will be your caller ID when dialing a number. Corinex VoIP USB Phone User Guide...
  • Page 37 VoIP provider, except of the local SIP port and local RTP port. Please see the chapter 4.2 for more information on how to set up these ports. Using the Corinex Softphone software Corinex VoIP USB Phone User Guide...
  • Page 38 The sound which will be played in the USB phone’s speaker when dialing a number. Any sound file in WAV format can be used by clicking the ‘…’ button and selecting the file in the Open File dialog. Corinex VoIP USB Phone User Guide...
  • Page 39 The sound device which is used for voice communication. cannot be changed and is set to the K-1000A device by default. Codec which will be used for voice communication. Corinex VoIP USB Phone User Guide This field...
  • Page 40 Softphone will switch into the magnified mode. Otherwise, the interface will be displayed with the standard size. If you want to enable this automatic setting, please choose Autosize. For more skins, please have a look at http://www.corinex.com/voip Corinex VoIP USB Phone User Guide...
