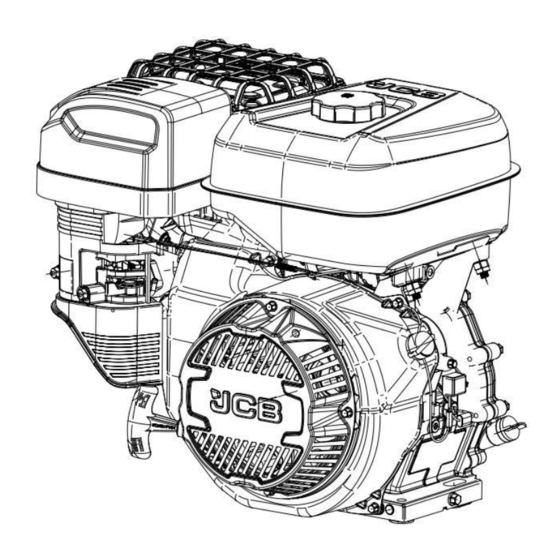

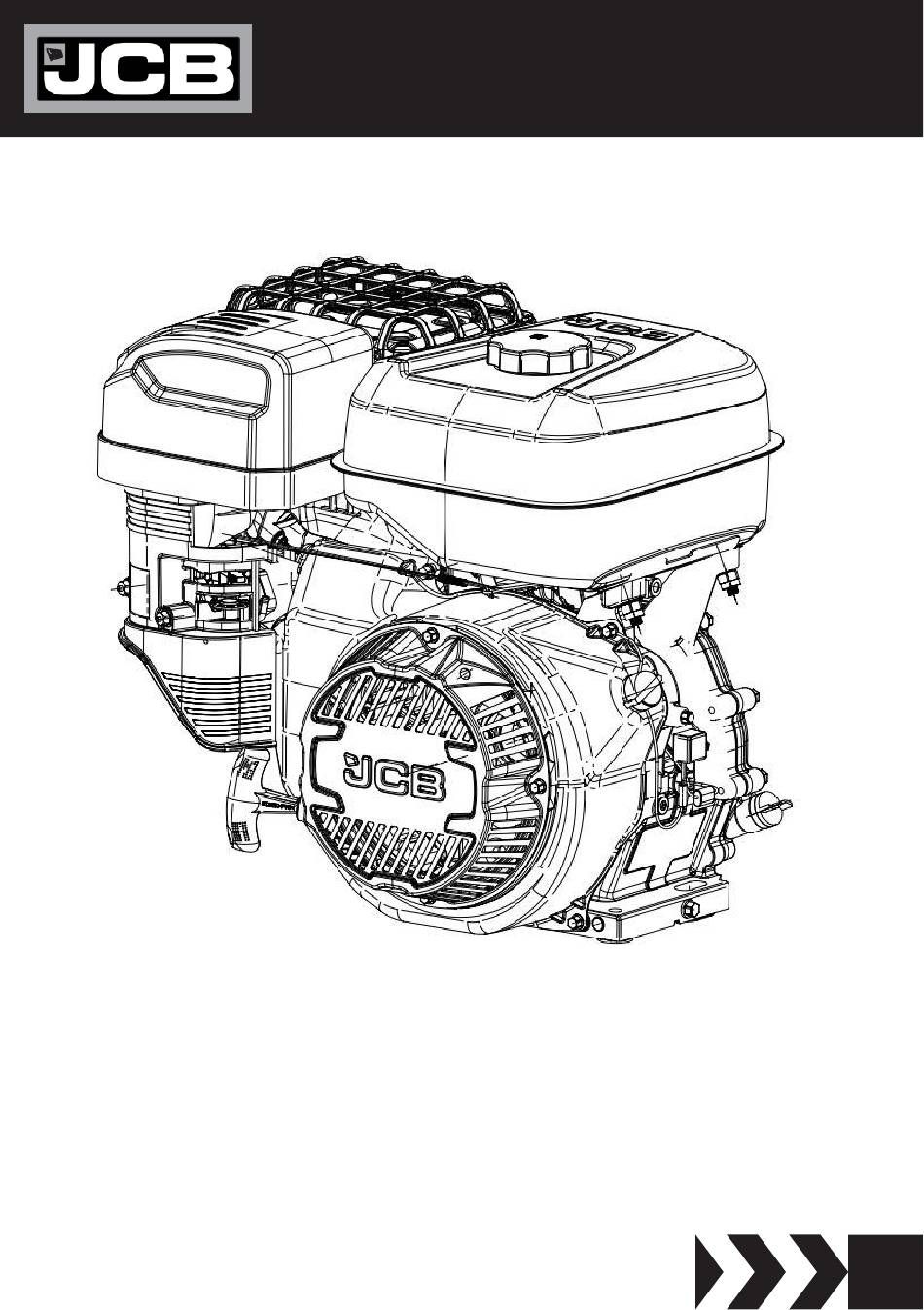

- Page 1 457cc PETROL ENGINE INSTRUCTION & USER MANUAL JCB-E460P Original Instructions IM-E460P-EN...
-
Page 2: Table Of Contents
Troubleshooting Engine Will not Start & Engine Lacks Power Recycling and Disposal & Environmental Protection Specification & Torque Settings and Tolerances Warranty, Manual Updates, Returns, Reviews & Spare Parts Contact Us CE Declaration of Conformity JCB-E460P Instruction & User Manual... -
Page 3: Introduction
The safety precautions and warnings are to ensure your safety and protect you from harm or damage to the product. The information contained in this manual was accurate at the time of production, however Genpower Ltd & JCB may make modifications to the product without notification. JCB-E460P... -
Page 4: General Warnings & Disposal
As the fuel is flammable this is a possible ignition source of fire. Smoking and Drugs Warning: NEVER smoke whilst operating the machine due to close proximity of flammable liquids. Also NEVER operate the machine under the influences of drugs including smoking and alcohol. JCB-E460P Instruction & User Manual... -
Page 5: Safety Information
ALL MAINTENANCE other than that listed in this manual, should be carried out by professionally trained and • certified personnel. When using this machine for the first time and before actual work, you MUST learn how to handle the machine • from an experienced or skilled person. JCB-E460P Instruction & User Manual... -
Page 6: Personal Safety
The operator or user must take all necessary precautions to ensure their own safety and that of others, especially on slopes or rough, slippery and unstable ground. JCB-E460P Instruction & User Manual... -
Page 7: Inspect Your Machine
Keep the machine in good operating condition. Operating the machine in poor or questionable condition could • result in serious injury. Be sure all safety devices are in working order and warning labels are in place. These items are installed for your • safety. JCB-E460P Instruction & User Manual... -
Page 8: Work Area & During Use
NEVER use inside a confined space such as but not limited to a house, garage, large vehicle, boat or tent. • Never operate the machines near other machines which use flammable liquids as a fuel source. • Only use the machine outside far away from open windows, doors and vents. • JCB-E460P Instruction & User Manual... -
Page 9: Fuel Safety
When fuel is spilled on yourself or your clothes, wash your skin and change clothes immediately. • ALWAYS clean up spills promptly using absorbent granules and a lidded bin. • JCB-E460P Instruction & User Manual... -
Page 10: Fuelling/De-Fuelling & Storage
(such as a water heater, furnace, or clothes dryer). Allow the engine to cool before storing in any enclosure. Replace all fuel tank and container caps securely and wipe up spilled fuel. Never operate the unit without the • fuel cap securely in place. JCB-E460P Instruction & User Manual... -
Page 11: Pre-Operation Checks
WARNING! Operating the engine without an air filter, or with Carburettor a damaged air filter, will allow dirt to enter the engine, body causing rapid engine wear. This type of damage is not covered by the Distributor’s Limited Warranty. JCB-E460P Instruction & User Manual... -
Page 12: Check Fuel Level & Recommended Fuel
Petrol/Gasoline is highly flammable, volatile and corrosive. You can be burned or seriously injured when handling fuel. NEVER fill above the Maximum Fuel Level. Maximum Fuel Level Recommended Fuel Type Standard grade E10 and E5 available at fuel stations is suitable for this machine. JCB-E460P Instruction & User Manual... -
Page 13: Operation
To start a cold engine, move the choke lever to the CLOSED position. To restart a warm engine, leave the choke lever in the OPEN position. > Move the throttle lever away from the SLOW position about 1/3 of the way toward the FAST position. Fuel Valve Lever Choke Lever Throttle Lever JCB-E460P Instruction & User Manual... - Page 14 Engine output is controlled by adjusting engine speed. Moving the throttle lever in the FAST direction will increase engine output, and moving the throttle lever in the SLOW direction will decrease engine output. Ignition Switch Recoil Starter Grip Throttle Lever Choke Lever Slow Fast Open JCB-E460P Instruction & User Manual...
-
Page 15: Stopping
> Move the throttle lever to the SLOW position. > Turn the ignition switch to the OFF position. > Turn the fuel valve lever to the OFF position. Throttle Lever Slow Ignition Switch Fuel Lever JCB-E460P Instruction & User Manual... -
Page 16: Maintenance
> Carbon monoxide poisoning from engine exhaust. > Be sure there is adequate ventilation whenever you operate the engine. －Burns from hot parts. > Let the engine and exhaust system cool before touching. －Injury from moving parts. JCB-E460P Instruction & User Manual... -
Page 17: Maintenance Schedule
Maintenance Maintenance Schedule JCB-E460P Instruction & User Manual... - Page 18 Place the O-ring in the fuel valve, and install the sediment cup. Tighten the sediment cup securely. > Move the fuel valve to the ON position, and check for leaks. Replace the O-ring if there is any leakage. Fuel Valve Lever O-Ring Washer/Gasket Drain Bolt Sediment Cup JCB-E460P Instruction & User Manual...
-
Page 19: Spark Plug
After properly seated, fully tighten using spark plug wrench. > When the washer has started to compress tighten to the following instruction: 1. New Sparkplug – a 1/2 Turn tight 2. Re-used Spark Plug – a 1/8 to 1/4 Turn tight JCB-E460P Instruction & User Manual... -
Page 20: Oil Servicing
SJ, SL, or equivalent. SAE 15W-40 is recommended for general use. Other viscosities shown in the chart may be used when the average temperature in your area is within the indicated range. JCB-E460P Instruction & User Manual... -
Page 21: Storage
Pull the starter grip several times to distribute the oil around the cylinder walls. > Reinstall the Sparkplug. Pull the starter cord until resistance is felt. This ensures the valves are closed preventing moisture build up. > Return the recoil grip gently. JCB-E460P Instruction & User Manual... -
Page 22: Troubleshooting
3. Take engine to an Fuel filter clogged, carburettor Replace or repair faulty authorized servicing dealer, or malfunction, ignition components as necessary. Refer to shop manual. malfunction, valves stuck, etc. JCB-E460P Instruction & User Manual... -
Page 23: Recycling And Disposal & Environmental Protection
> You must comply with local regulations for the disposal of waste materials after mowing. > When disposing, do not pollute the environment with the machine, but hand it over to a disposal centre, in accordance with the local laws in force. JCB-E460P Instruction & User Manual... -
Page 24: Specification & Torque Settings And Tolerances
Specifications Model JCB-E460P Displacement (cc) Power @3600rpm (hp) 17.4 Emission Standard eUV-2 Bore x Stroke 92x69 Recoil Start Method Fuel Tank Capacity (L) Low Oil Sensor Ignition System Dimensions (mm) LxWxH 480x420x460 550x450x490 Packaging Dimensions (mm) LxWxH Tightening Settings and Tolerances Inlet Valve Clearance (mm) 0.08~0.12... -
Page 25: Warranty, Manual Updates, Returns, Reviews & Spare Parts
We would be delighted if you left us positive feedback! To leave a review, please go to: uk.trustpilot.com Ordering Spare Parts You can find the spare part you are looking for at power-spares.co.uk JCB-E460P Instruction & User Manual... -
Page 26: Contact Us
Our friendly aftersales team will be more than happy to help you. Phone Call our team on 01646 687 880 Email aftersales@.co.uk Post JCB Tools, Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW. Support Website Go to www.jcb-tools.co.uk JCB-E460P Instruction & User Manual... -
Page 27: Ce Declaration Of Conformity
The person authorized to compile this technical file: Date: 01/12/2022 Signature Name/ title: Roland.J.Llewellin / Managing Director JCB Tools are a Licensee of J.C.Bamford Excavators ltd, operated via Genpower ltd. Address: JCB Tools, Isaac Way, Pembroke Dock, SA72 4RW JCB-E460P...
