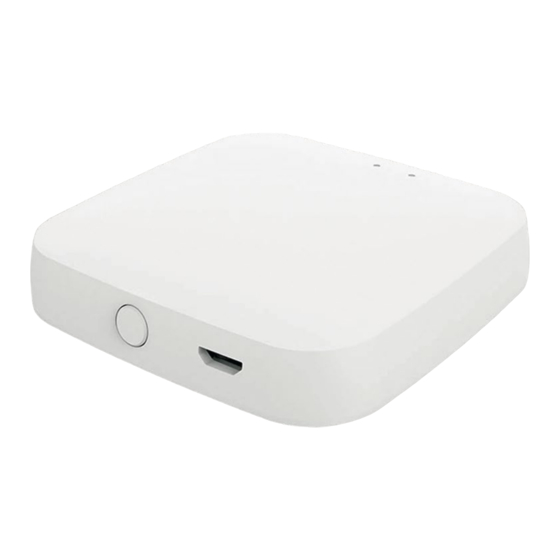

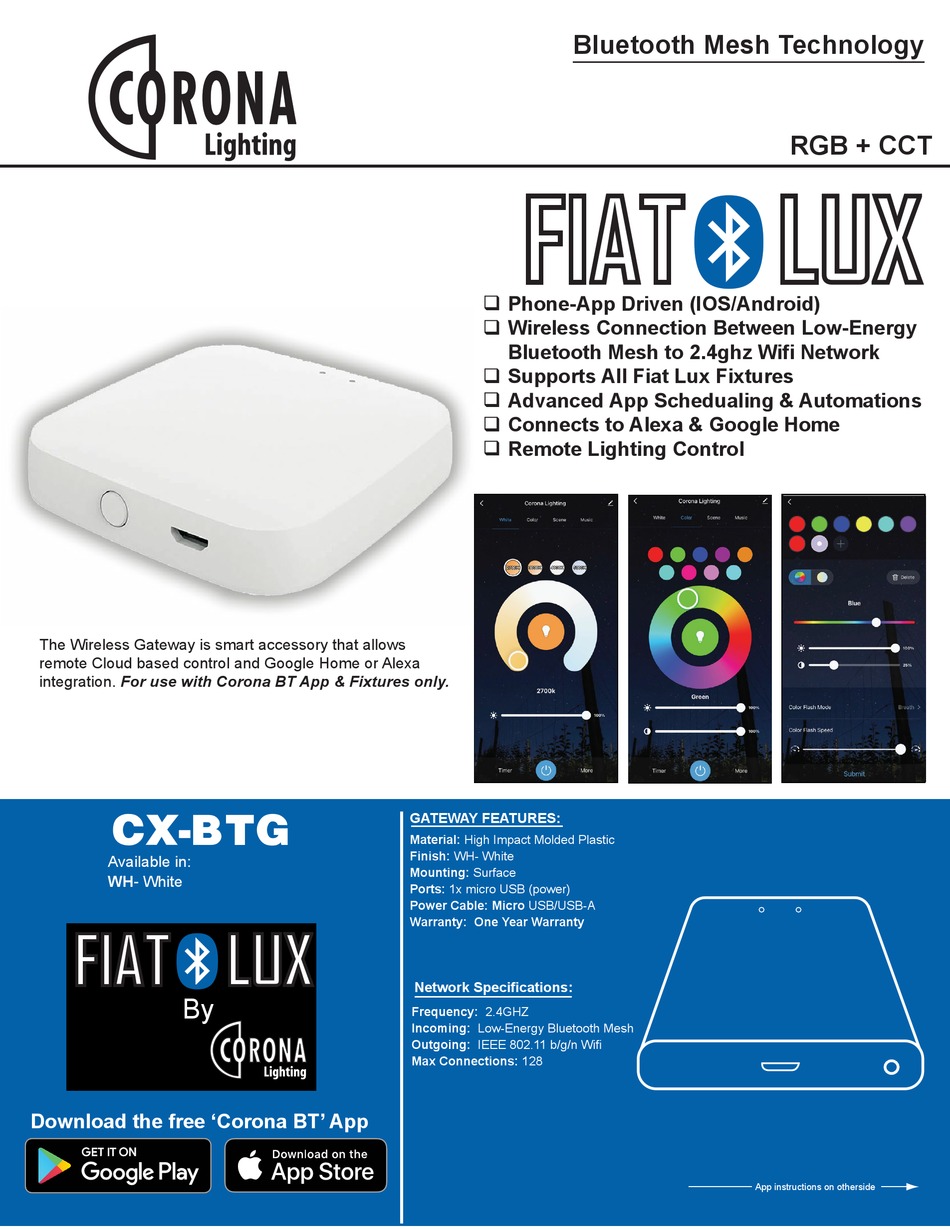

The Wireless Gateway is smart accessory that allows
remote Cloud based control and Google Home or Alexa
integration. For use with Corona BT App & Fixtures only.
CX-BTG
Available in:
WH- White
FIAT LUX
By
Download the free 'Corona BT' App
Bluetooth Mesh Technology
FIAT LUX
Phone-App Driven (IOS/Android)
Wireless Connection Between Low-Energy
Bluetooth Mesh to 2.4ghz Wifi Network
Supports All Fiat Lux Fixtures
Advanced App Schedualing & Automations
Connects to Alexa & Google Home
Remote Lighting Control
GATEWAY FEATURES:
Material: High Impact Molded Plastic
Finish: WH- White
Mounting: Surface
Ports: 1x micro USB (power)
Power Cable: Micro USB/USB-A
Warranty: One Year Warranty
Network Specifications:
Frequency: 2.4GHZ
Incoming: Low-Energy Bluetooth Mesh
Outgoing: IEEE 802.11 b/g/n Wifi
Max Connections: 128
RGB + CCT
App instructions on otherside
Advertisement
Table of Contents
Summary of Contents for Corona Lighting CX-BTG
- Page 1 The Wireless Gateway is smart accessory that allows remote Cloud based control and Google Home or Alexa integration. For use with Corona BT App & Fixtures only. GATEWAY FEATURES: CX-BTG Material: High Impact Molded Plastic Finish: WH- White Available in:...
- Page 2 A. Place your CX-BTG Gateway near a 2.4ghz Wireless router or modem. Next connect the usb power cord to your CX-BTG, and into a standard outlet with a power brick. Once powered, the red Wifi LED indicator should flash, while the blue BLE indicator should remain solid.
