Summary of Contents for Sedna SE-3360MP-N
-

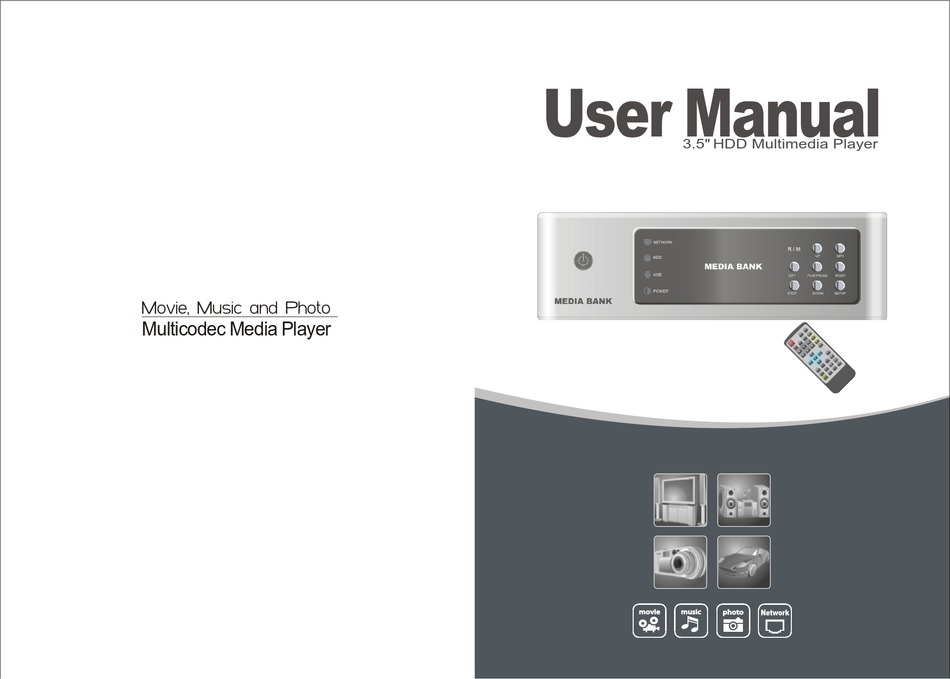

Page 1: User Manual
User Manual 3.5" ’ HDD Multimedia Player Multicodec Media Player... -
Page 2: Table Of Contents
CONTENTS Part One Introduction Features Specifications Pre-cautions Installation Part Two | Installation and Connection Connection with composite TV output Connection with S-Video output Connection with component output Connection with 2ch of normal TV Connection with coaxial output Connection with optical output Connection with computer Connection with DVI output &... -
Page 3: Features
Part One Introduction FRONT VIEW Power Network LED HDD LED USB LED POWER LED BACK VIEW 1 Y (green) 2 Pb (blue) 3 Pr (red) 4 Coaxial (black) 5 Video (yellow) 6 R(Audio) (red) 7 L(Audio) (white) 8 S-Video (black) Part One Feature PLAY... -
Page 4: Specifications
Part One Specification Video MPEG1/2,Div3.11.div4.0.div5.0.divx,Xvid,DVD(IFO,VOB),VCD(DAT),M2V Audio Supported File AC3.MP2,MP3,DTS pass through Ogg,WMA.MPGA, MPA Photo JPEG USB2.0(Cypress chipset) Component Video: RCAY,Pr,Pb Composite Video: RCA and S-Video Input & Output Audio: RCA L/R/ Coaxial .Optical IR-Ext DVI- I(Digital Visual interface, Support analog signals and digital signals) LAN (10/100Mbps, auto MDIX) Full featured IR-Remote control User Interface... -
Page 5: Installation
Part One Installation 1 Screw off 2 Open the back cover 3 Connect power cable 4 Connect IDE cable Part One Installation 5.Insert HDD 6.Close the back cover 7. Screw on 8.OK... -
Page 6: Part Two
Part Two Installation and Connection Connection with ordinary (Composite) TV output Connect t the yellow video cable .Turn on t player video input mode on your TV until you can get the initial t Connection with S-Video output Connect t S-Video cable .Turn on t select appropriate video input mode on your TV until you can get the initial... -
Page 7: Connection With Computer
Part Two Installation and Connection Connection with Coaxial output Coaxial Cable When you have a multi channel decoder / amplifier with coaxial input , you can enjoy 5.1CH high quality sound through coaxial cable . The illustration on the top shows how to connect with coaxial cable Connection with Optical output Optical Cable Part Two... -
Page 8: Remote Controller Descriptions
Part Three Remote Controller Descriptions SETUP Enter/Exit the setup menu. VOL- VOLUME DOWN VOL+ VOLUME UP MUTE Mute ON/OFF POWER Power ON/OFF Tvout Change the display mode ( NTSC/S-VIDEO, PAL/S-VIDEO, 480p, 720p...) Part Three Remote Controller button Descriptions INFO Popup the video information OSD during Video Play. SEARCH Popup the random access OSD. -
Page 9: Part Four
Part Four Setup Menu Video Setup 1) Video Out :Support NTSC/S-Video ,YPbPr480i, YPbPr480p. YPbPr720p, YPbPr1080i, DVI/480P, DVI/720P, DVI/1080i, PAL/S-Video , YPbPr/PAL. 2) TV Type : Support 4 3 ,Letter Box 16:9 3) Brightness:You can control the brightness in the range 0 100 4) Contrast : You can control the contrast in the range 0 100. - Page 10 Part Four Setup Menu Network Setup (2) Network Setup (3) 1)IP setting Type: Dynanic IP Address 2) Press "setup" to save your configuration 3) Press "OK" than you can get the menu as below. Part Four Setup Menu Network Setup (4) Network Setup (5)
-
Page 11: Skin Setup
Part Four Setup Menu Skin Setup 1)Skin Type:Default Skin Misc Setup 1) Language : Multilingual 2) Sys Default : You can change the setting of the sys default 3) Subtitle Size :You can select the subtitle font size (Middle/Large) 4) Subtitle Color: You can change the color of the subtitle and its outline (Black /White ,Black/Yellow, White/Yellow) 5) Auto Run: by name, by random, off 6) Auto Play: from First, from select bar, Random. -
Page 12: Play All Kinds Of Media Of File
Part Four Setup Menu Play All Kinds of Media Files(default) 1) You will see a full list of all kinds media files saved on the player. 2) Use up/down key on your remote to select the files you would like play and press[OK] Play Video Files Select [Media] ->Movie ->... -
Page 13: Part Five
Part Five Firmware Upgrade Firmware Upgrade Firmware version check Firmware version check 1.Connect the player to your TV and turn on the player 2.Navigate with buttons to move to F/W menu and check your current firmware version. 3.Check the latest firmware version of the player from seller's website How to download firmware 1.Download the latest firmware from seller's website to your PC.
