Product Fiche And Specifications - JVC LT-32C780B Instruction Manual

Technical Information and Help
9

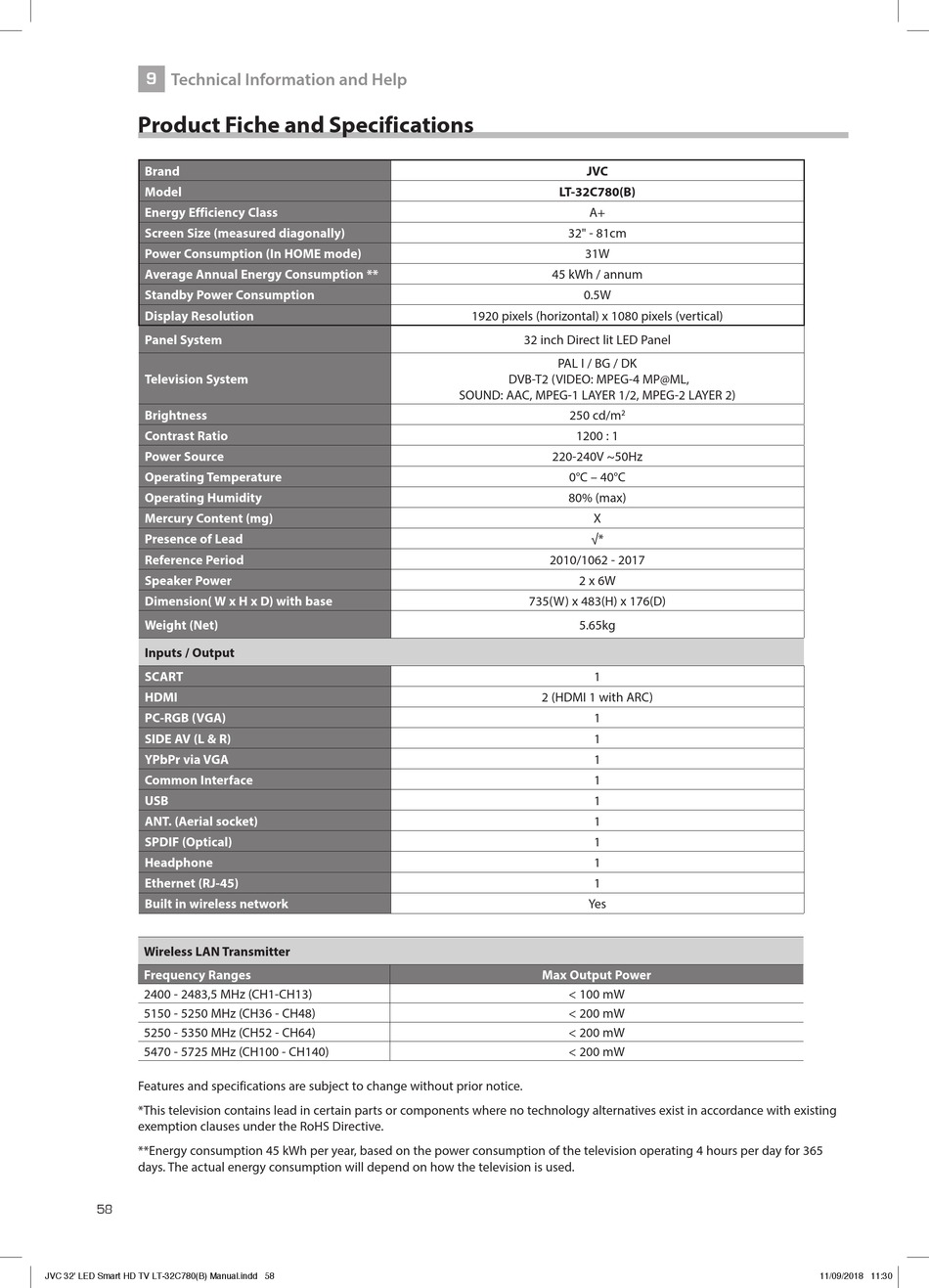

Product Fiche and Specifications

Brand
Model
Energy Efficiency Class
Screen Size (measured diagonally)
Power Consumption (In HOME mode)
Average Annual Energy Consumption **
Standby Power Consumption
Display Resolution
Panel System
Television System
Brightness
Contrast Ratio
Power Source
Operating Temperature
Operating Humidity
Mercury Content (mg)
Presence of Lead
Reference Period
Speaker Power
Dimension( W x H x D) with base
Weight (Net)
Inputs / Output
SCART
HDMI
PC-RGB (VGA)
SIDE AV (L & R)
YPbPr via VGA
Common Interface
USB
ANT. (Aerial socket)
SPDIF (Optical)
Headphone
Ethernet (RJ-45)
Built in wireless network
Wireless LAN Transmitter
Frequency Ranges
2400 - 2483,5 MHz (CH1-CH13)
5150 - 5250 MHz (CH36 - CH48)
5250 - 5350 MHz (CH52 - CH64)
5470 - 5725 MHz (CH100 - CH140)
Features and specifications are subject to change without prior notice.
*This television contains lead in certain parts or components where no technology alternatives exist in accordance with existing
exemption clauses under the RoHS Directive.
**Energy consumption 45 kWh per year, based on the power consumption of the television operating 4 hours per day for 365
days. The actual energy consumption will depend on how the television is used.
58
JVC 32' LED Smart HD TV LT-32C780(B) Manual.indd 58
JVC
LT-32C780(B)
A+
32" - 81cm
31W
45 kWh / annum
0.5W
1920 pixels (horizontal) x 1080 pixels (vertical)
32 inch Direct lit LED Panel
PAL I / BG / DK
DVB-T2 (VIDEO: MPEG-4 MP@ML,
SOUND: AAC, MPEG-1 LAYER 1/2, MPEG-2 LAYER 2)
250 cd/m
2
1200 : 1
220-240V ~50Hz
0°C – 40°C
80% (max)
X
√*
2010/1062 - 2017
2 x 6W
735(W) x 483(H) x 176(D)
5.65kg
1
2 (HDMI 1 with ARC)
1
1
1
1
1
1
1
1
1
Yes
Max Output Power
< 100 mW
< 200 mW
< 200 mW
< 200 mW
11/09/2018 11:30
