Summary of Contents for Bai cells EP3011

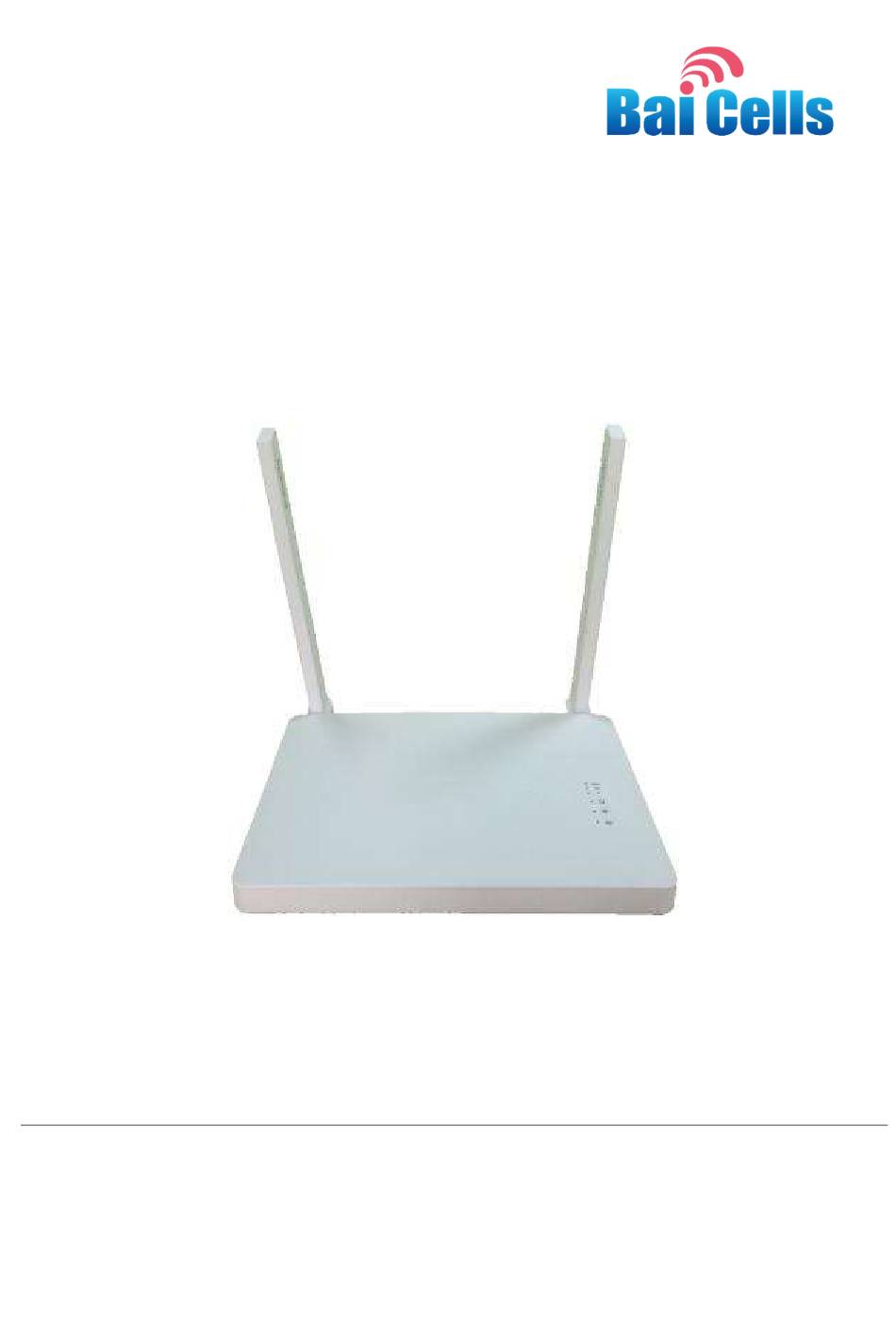

- Page 1 EP3011 Quick Installation Guide...
-
Page 2: Product Overview
1. Product Overview Interface (1) Interfaces (2) LEDs Interface & Button Description Power On/Off POWER 24VDC, 1A 1 RJ45, WAN 10/100/1000 auto-sensing, auto-MDX, 24V 0.5A PoE Long press over 10 seconds to restore factory settings 2 RJ45, LAN 10/100 auto-sensing, auto-MDX Name Status Description... - Page 3 Name Status Description Steady On The more the lights on, the stronger the signal No signal or weak signal Signal (if Only the first LED on the left is connect Scanning the LTE network blinking to LTE Blinking The two LEDs on the left are Attaching to the LTE ODU) blinking...
-
Page 4: Specifications
2. Specifications Item Description Standard IEEE 802.11b/g/n/ac(WA) or 802.11bgn(WN) Channel Bandwidth 20MHz, 40MHz or 20MHz, 40MHz, 80MHz Frequency 2.4GHz, 5GHz or 2.4G only TXRX 2T2R MIMO 2×2 802.11b: 11Mbps 802.11g: 54Mbps Peak Rate 802.11n: 300Mbps 802.11ac: 866Mbps Modulate DSSS/CCK, OFDM -64 dBm@65Mbit/s, typical for 802.11n/ac Sensitivity -65 dBm@54Mbit/s, typical for 802.11g... - Page 5 3. Installation Guide Support Materials Before installation, prepare the following support materials: Item Description Ethernet cable Outdoor Shield CAT5E Shorter than 330 feet Ground wire 16mm² yellow-green wire Installation CAUTION NO OTHER DEVICES ARE ALLOWED TO BE CONNECT WITH IDU’s WAN PORT EXCEPT BAICELLS’ OUD PRODUCTS (EG7035E/L and EG7010A/C) Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
-
Page 6: Configuration Guide
4. Configuration Guide 4.1 Log in The EP3011 manages, configures, and maintains the device by web management page. The steps to log in are as follows: In the address column of browser, type in http://192.168.150.1, then press “Enter”, login in page is shown in Figure 4-1. - Page 7 Figure 4-2 View Status 4.3 Basic Configuration 4.3.1 LTE Setting To set the LTE Network, perform the following steps: 1. Choose LTE. 2. In the LTE Setting area, configure the LTE network. 4.3.2 Set Connection Method To set the LTE network connection method, perform the following steps: 1.
- Page 8 2. In the connection Method area, set the connection method 3. There are two methods to connect the LTE network, it is needed to choose a method between Auto and Manual, if you want to auto connect to the LET network you should choose the Auto, otherwise you should choose Manual.
-
Page 9: Regulatory Compliance
Regulatory Compliance FCC Compliance This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 10 Le présent appareil est conforme aux CNR d'Innovation, Science et Développement économique Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
