Summary of Contents for Xoro TelePAD 10A3

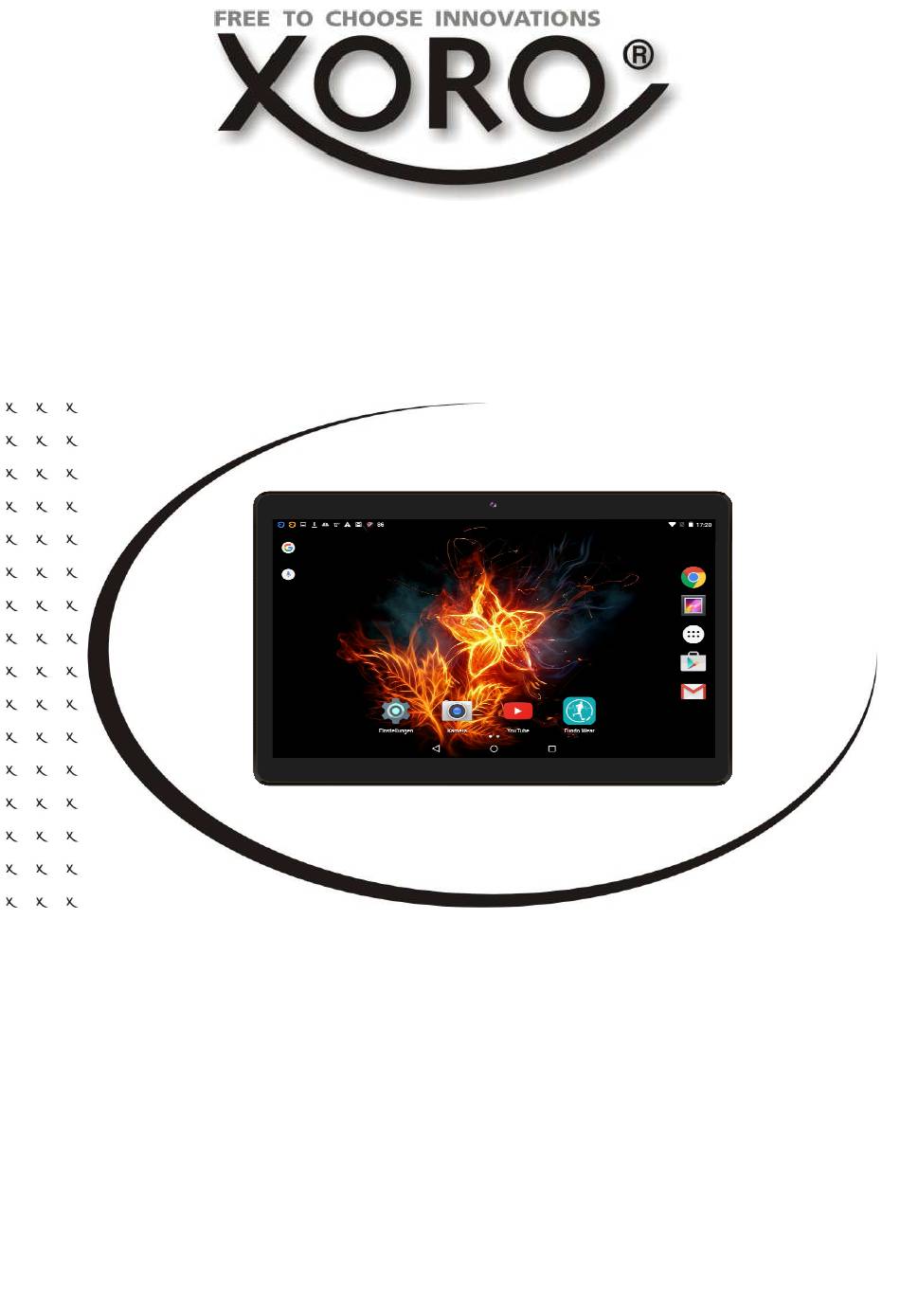

- Page 1 TelePAD 10A3 QUICK START GUIDE (ENG)
-
Page 2: Table Of Contents
GooglePlay Store, installation / uninstallation applications .......... 23 Music Playback, Picture Playback ................24 Movie Playback, installed applications................. 25 File Manager, Navigation, Voice commands..............26 Troubleshooting ......................27 Warranty & Recycling Information ................28 Licenses & Disclaimer ....................29 TelePAD 10A3... -
Page 3: Safety Information
Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer. • A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. TelePAD 10A3... - Page 4 SDHC cards are supported up to a size of 32 GB Notes: Unfortunately, there are a variety of different SD card on the market, so that a compatibility of all the storage media can not always be guaranteed. TelePAD 10A3...
-
Page 5: First Steps
In device turned off, press and hold the power button (1) for a few seconds. The system is started as soon as the Xoro logo or Android operating system logo appears on the display. In operation, press the power button briefly to turn the unit into the standby mode or the operating mode to enable. -
Page 6: Device
First Steps Device of TelePAD 10A3 Power button Volume + button Volume - button Earphone jack USB/OTG/Charing MicroSD & SIM card cover Rear Camera (2M pixel) Speaker Reset microphone TelePAD 10A3... -
Page 7: Power Supply, Usb, Memory Cards
Power supply / charging the device The device can also charge the battery from a USB 2.0 port of a connected computer. Alternatively use the supplied power adapter to charge your Xoro TelePAD 10A3. Please read the information on the nameplate of the power supply. -
Page 8: Definition, Sim Cards
Because the operating system is very complex, only the basic features and key programs are explained in this manual. That Xoro TelePAD 10A3 had a setup wizard that guides you quickly and safely after the first run through the most important system settings and the equipment set up to your liking. -
Page 9: Desktop
To delete an icon or a widget from the desktop must be pressed the corresponding icon or widget long and drawn on appearing at the top of the image X . In the process, only the link is deleted, the associated application . TelePAD 10A3... -
Page 10: Virtual Keyboard, Toolbar / Statusbar
First Steps Virtual Keyboard The Xoro TelePAD has a touch-sensitive display (touchscreen) and will operate with your fingers. For any text input virtual keyboard will therefore automatically appear. Tap to write on the letter you want. Enter capital letters by first tapping the button... -
Page 11: Toolbar / Statusbar, Manage Contacts
Contacts which are placed on the SIM card adapt limited. In order to be able for example to add a contact photo , the contact must be copied to the device. TelePAD 10A3... -
Page 12: Send & Receive Calls
Video calls require internet connection and only work if the other person has a capable for this function terminal. • Not in any mobile network all the listed features of the device are available. Please inform yourself to the effect on your wireless service provider. TelePAD 10A3... -
Page 13: Send & Receive Short Messages
Please note that text messages are limited to 160 characters in length. The device can split longer messages automatically when shipping and assemble when receiving long text messages . There are when sending to the actual fees ! TelePAD 10A3... -
Page 14: Connect With Computer, Lockscreen
First Steps Connect to computer You can Xoro TelePADconnect to a computer to transfer data between the device and the PC . The device is detected on your computer as a USB mass storage device. The device must be switched on for it! •... -
Page 15: Camera
First Steps Camera The Xoro TelePAD10A3 4G features on the front and on the back each have a camera, the front camera is mainly used for video calling and the back camera for Picture & Video recordings. To start the camera press the icon in the program overview. -
Page 16: System Settings
Enter the password and tap the wireless network on "Connect". The password is stored in the device and the network automatically establishes the connection when it is in range. By clicking the icon at the right top of the screen, you can configure advanced connection settings. TelePAD 10A3... -
Page 17: Bluetooth, Data Usage
In the menu item "Tethering & portable hotspot" you can configure the device as a wireless hotspot if you want , for example, share a set on the machine UMTS internet connection with other WiFi - enabled devices via Bluetooth or USB connection. TelePAD 10A3... -
Page 18: Audio Profiles, Display
. Use of Hibernate can significantly reduce the battery consumption. The Xoro TelePAD is compatible with devices that support Wi-Fi Certified Miracast ™ protocol for wireless transmission. To activate the function for wireless transmission tap the "Cast screen" menu and make a connection to a compliant device . -
Page 19: Storage, Apps
Select an application from the " Downloads ", " On SD Card" , "Active" or "All" . You can then select one of the management functions. System services and apps may not be capable to uninstall or stop . TelePAD 10A3... -
Page 20: Location Access, Security, Language & Keyboard
Allows you to set and config the d e f a u l t i n p u t m e t h o d Pointer Speed Allows you to set the total speed of the mouse pointer . TelePAD 10A3... -
Page 21: Backup & Factory Reset, Date & Time
24-hour format. Choose date format Determines in what format the date display is Settings / System / Sheduled power on & off In this menu you can specify times when the device should automatically turn on or off. TelePAD 10A3... -
Page 22: Accessibility, Developer Options
Settings / System / About tablet At this point, information about the software installed on the Xoro Telepad firmware are displayed. If you want to contact the Xoro Customer Service, please write down next to serial number and the software version. -
Page 23: Applications
"Device" "Apps" option. Now you will see a list of downloaded applications and can view more information by clicking on the application. Now select to remove "Uninstall" to delete the program from your device. TelePAD 10A3... -
Page 24: Music Playback, Picture Playback
If you play music in the background, the music can be used when watching in the background! Available buttons and functions of the remote control in this application, see above. More options for image reproduction can be found in the application menu Supported file formats: JPEG, BMP, PNG, GIF TelePAD 10A3... -
Page 25: Movie Playback, Installed Applications
Make your selection and confirm with "OK" Installed Applications The Xoro TelePAD Android operating mode is already equipped with the main application, which are explained in the following. For more information on the individual applications use the appropriate documentation by the manufacturer of the software on the Internet. -
Page 26: File Manager, Navigation, Voice Commands
You can edit the file, move, send, or delete now by pressing the respective symbols! Google Maps / Navigation The Xoro TelePAD has a built in GPS receiver and thus can determine your location using GPS satellites in orbit and navigate with it to any desired location. -
Page 27: Troubleshooting
• Turn up the volume until you hear the sound again • Check if the wireless router is working properly. No Internet Connection • Check whether the parameters on Xoro TelePAD are set correctly. Take, for example, on the setting DHCP. • Run the automatic search for networks again. -
Page 28: Warranty & Recycling Information
The material recycling symbol on the plastic parts denotes that they are recyclable. Do not dispose them in household waste. Green Dot The “Grüne Punkt” denotes that the MAS Elektronik AG pays a duty to the “Society for Waste Prevention and Secondary Resource Generation”. TelePAD 10A3... -
Page 29: Licenses & Disclaimer
Licenses & Disclaimer We would like to point out that the firmware of the Xoro TelePAD contains open source software, which is licensed under the GNU General Public License (GPL) and Lesser General Public License (LGPL). To ensure a GPL / LGPL compliant use of the programs, please refer to the license terms of the GPL / LGPL.
