Theory of operation:

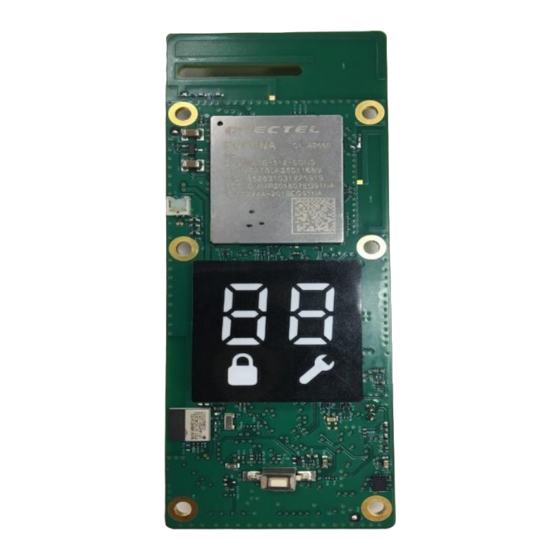

This is a Wireless Headlight Controller (WHC) with multi-functional device including Cellular, Bluetooth, and
NFC communications interfaces.
The device will remain in a sleep mode while in a stationary position. The device can wake up from either of
the following scenarios.
In scenario 1, the device will wake up and go into a "Stolen Mode", meaning the device has been moved
without authorized consent from the home server. In this mode the tracker will begin broadcasting location
and sensor information to home server, so the correct actions can be taken to retrieve the stolen device.
In scenario 2, the device obtains authorized consent to be moved and goes into a "Trip" mode. In this mode
the device logs and broadcasts sensor and location information so the user's trip can later be analyzed, after
the user has deactivated the tracker.
Via the LTE CAT1 network or BLE, the device will go back into a sleep mode to conserve power.
The device will draw the majority of its power from the trackers host asset, which is a much larger supply.
However, there will be a smaller onboard Li-Po battery attached to the tracker, just in case the host's supply
runs out. There is no physical on/off switch on this device, but there is a button that will wake up the device
from sleep mode. Once it is connected to a supply it will begin to run, unless, a BLE or cellular command
gives the tracker a shutdown command.
