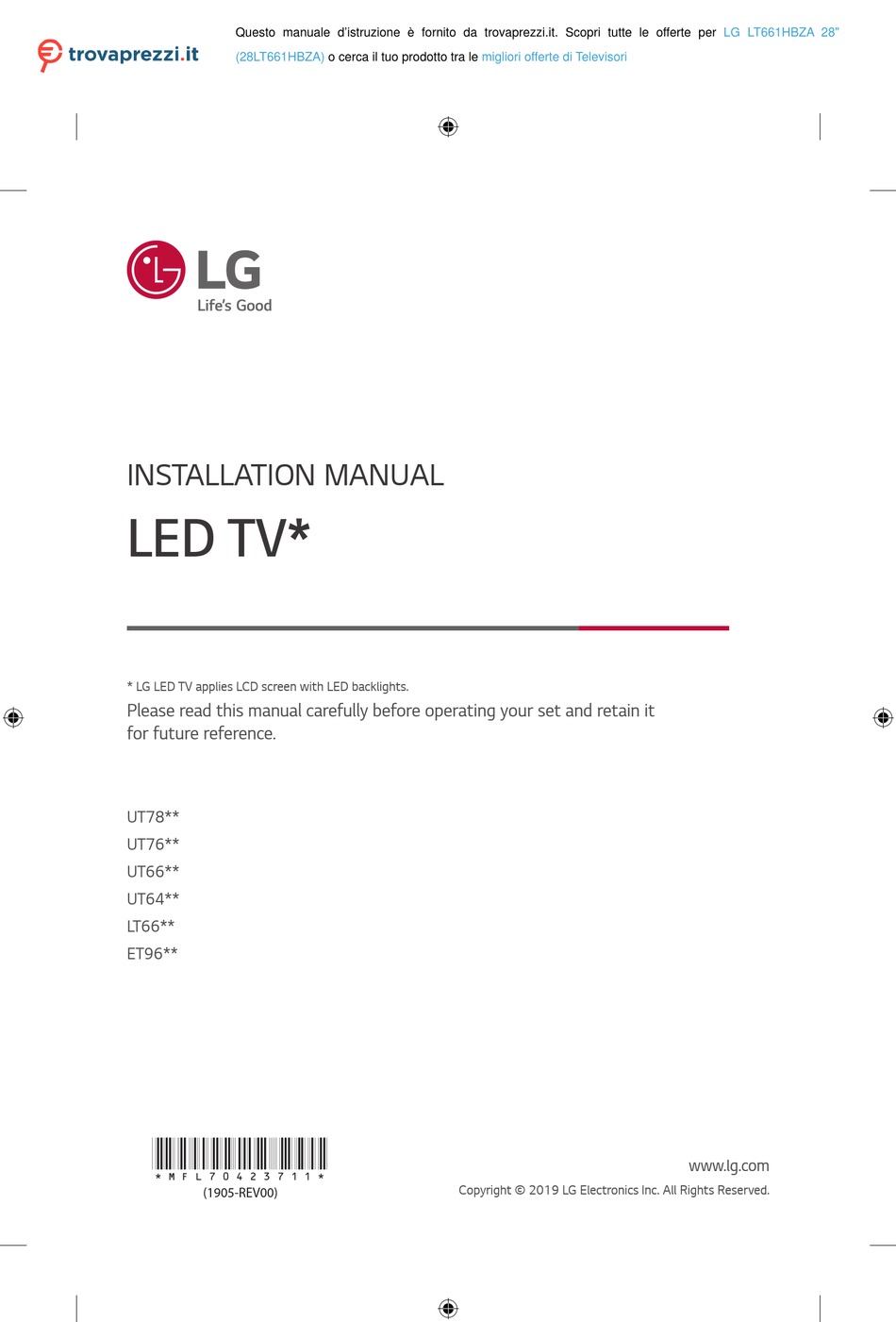

INSTALLATION MANUAL
LED TV*
* LG LED TV applies LCD screen with LED backlights.
Please read this manual carefully before operating your set and retain it
for future reference.
UT78**
UT76**
UT66**
UT64**
LT66**
ET96**
*MFL70423711*
(1905-REV00)
o cerca il tuo prodotto tra le
migliori offerte di Televisori
Copyright © 2019 LG Electronics Inc. All Rights Reserved.
LG LT661HBZA 28"
www.lg.com
