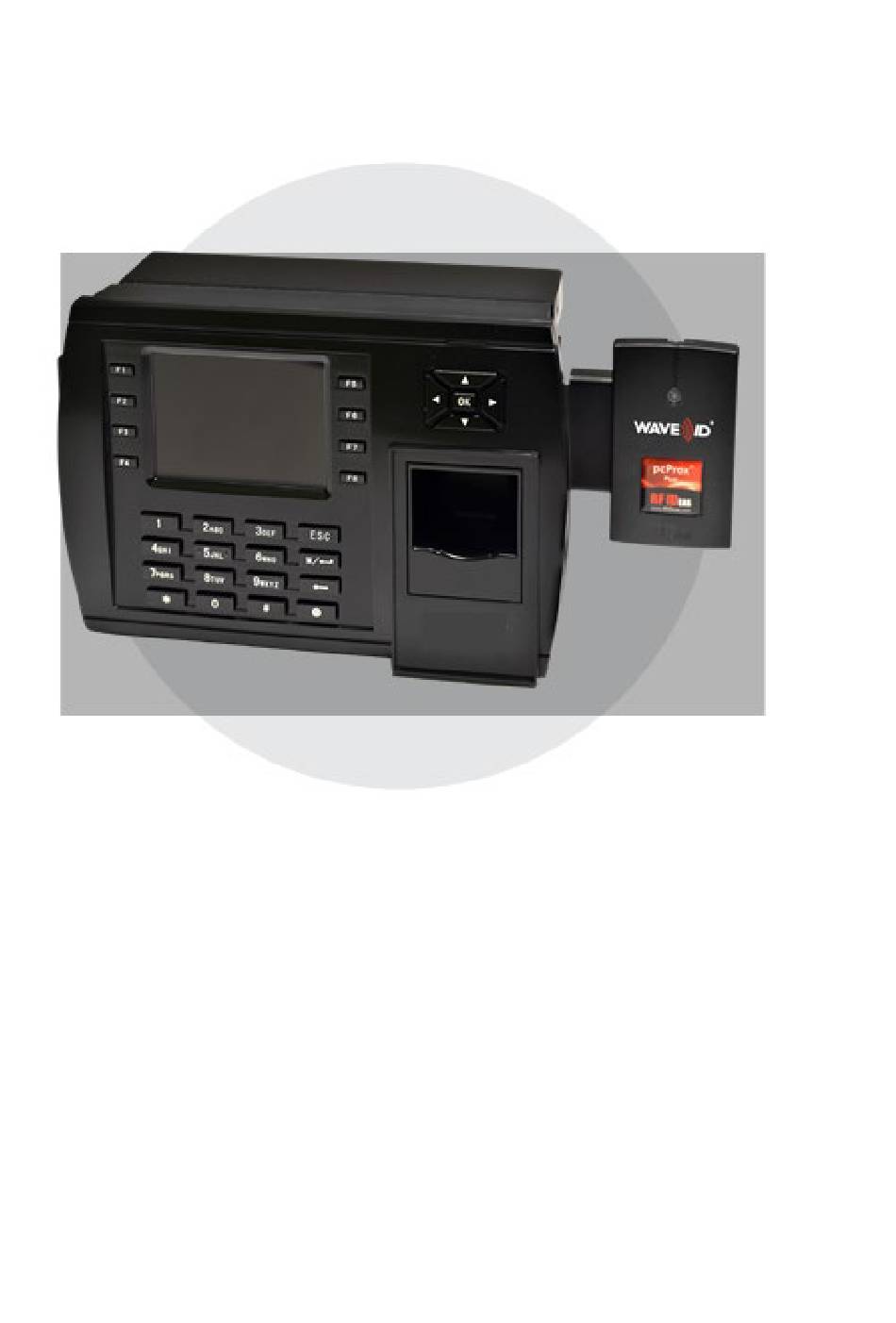

- Page 1 UKG Pro TimeBase Mounting Box Installation Guide For more information, scan QR code on the back page of this guide.
-
Page 2: Table Of Contents
CONTENTS PURPOSE OF THIS GUIDE Two versions of the Mounting Box are available: This guide describes how to install the TimeBase mounting box and mount the • 0550-0730-1 Mounting Box Kit for TimeBase Only with Hardware TimeBase clock. • 0550-0731-1 Mounting Box Kit for TimeBase and attached Badge Reader Mount &... -
Page 3: Contents
• A set of drywall anchors and mounting screws wingnuts provided, as shown. Step 2. If you are mounting a TimeBase device with no peripheral readers, skip ahead to Step 11. If you are mounting a TimeBase with a barcode reader, skip ahead to Step 8. -
Page 4: Perform The Barcode Reader Installation
Leave mounting box using some slack on the USB extender so that it may be the indicated holes connected to the TimeBase. and M3.5 screws. Do not overtighten the screws securing the reader. - Page 5 Align mounting reference the mounting guide sticker onto the plate with the wall where you wish to four holes on the install the TimeBase. mounting box, and install using Install the four drywall anchors using the the four flathead guide.
- Page 6 Step 18. If you have no peripheral readers mounted, you are now done assembling the TimeBase mounting box kit. If you have a peripheral reader, continue with the following steps. Step 19. Connect the...
