Summary of Contents for Oasis Aquatics PLT Series
-
Page 2: Table Of Contents
EMPTYING THE HAIR AND LINT POT ................... 7 SYSTEM TROUBLESHOOTING ....................8 SPECIFICATION DETAIL ......................10 WARRANTY ..........................11 WARRANTY REGISTRATION ....................12 TECHNICAL SUPPORT ......................12 PLT SERIES POOL & SPA PUMP - INSTALLATION AND OPERATION MANUAL Page 1 of 13... -
Page 3: Important Warnings & Safety Instructions
Do not use or operate swimming pools, spas or spa baths if a suction cover is broken, missing or loose • Suction covers and inlets must be installed as per Australian Standards guideline and provided for every pump to avoid suction entrapment PLT SERIES POOL & SPA PUMP - INSTALLATION AND OPERATION MANUAL Page 2 of 13... - Page 4 The fittings on this product are constructed of ABS. Some PVC jointing compounds are incompatible with ABS. Check compound suitability before use • Oasis Aquatics recommends that all installations are fitted with earth leakage or residual current protection devices •...
-
Page 5: General Overview

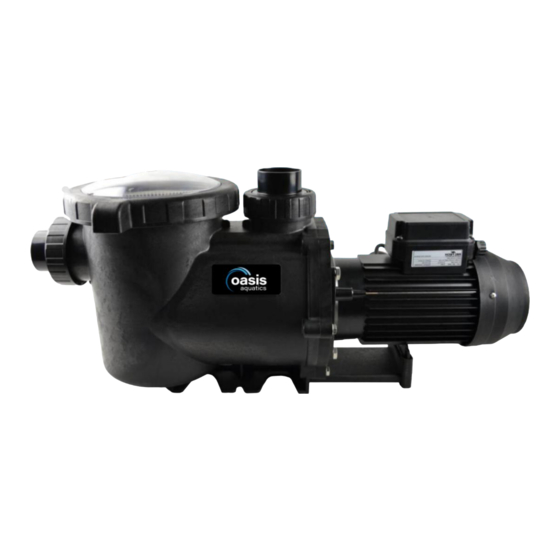

PLT150 PLT200 PLT300 The Oasis Aquatics PLT Series Pool & Spa Pump has been designed to circulate swimming pool and spa water in conditions set out in the Australian Standard for swimming pool water quality (AS 3633) Oasis Aquatics designs its own electric motors specifically for its pumps. The matched motor and “pump wet end”... -
Page 6: Installation & Operating Instructions
Enclosures should be ventilated to allow a free flow of air for the fan cooled motor. POWER CONNECTION Oasis Aquatics PLT Series Pool & Spa Pump are suitable for connection to a nominal 240-volt 50Hz power supply. The motor is equipped with a flex and 3-pin plug. If a power outlet is not available within 2 meters of the pump, a 3-pin power point in a safe, dry place may need to be provided by an electrician. -
Page 7: Starting The Pump
Saturation Index, with a pH level of between 7.2 and 7.8 and is regularly treated with a chlorine sanitizing agent with the level not exceeding recommended chlorine levels. Please consult your local pool shop regularly to have your water tested. PLT SERIES POOL & SPA PUMP - INSTALLATION AND OPERATION MANUAL Page 6 of 13... -
Page 8: Emptying The Hair And Lint Pot
6. Replace the lid and ensure that it seals on the large rubber o-ring. Firm hand tightness only is required. • The o-ring & thread can be lubricated with silicone grease. PLT SERIES POOL & SPA PUMP - INSTALLATION AND OPERATION MANUAL Page 7 of 13... -
Page 9: System Troubleshooting
SYSTEM TROUBLESHOOTING If you suspect for any reason your Oasis Aquatics PLT Series Pool & Spa Pumps are not performing or running as it should be, here are some handy troubleshooting tips that may assist you. If the pump does not operate, one of the following conditions may apply: •... - Page 10 • Barrel unions need to be hand tightened. No sealant, glues or silicones are required • When making any enquiries about your Oasis Aquatics PLT Series Pool & Spa Pump be certain to quote the model number from the nameplate located on motor •...
-
Page 11: Specification Detail
Durable, reliable, safe & designed to last • User friendly & functional • Powerful, quiet & energy efficient • The PLT Series is covered by a limited 3 year warranty against defects in materials and workmanship Specifications Horse Flow Rate Volts Full Load Watts... -
Page 12: Warranty
7 days of the recognised fault. Oasis Aquatics will at its option, repair or replace any defective parts. Component failure must be due solely to a defect in materials or workmanship. The manufacturer will not be held liable for damage caused by, but not limited to, corrosion, scaling or stress. -
Page 13: Warranty Registration
WARRANTY REGISTRATION Registering your Oasis Aquatics products is fast and easy, providing peace of mind that you’ve got great backup support for the life of your pool heating! • Go to sunloverheating.com.au/service-request/warranty- registration or scan the QR code • No Need to create an account •... - Page 14 Seven Hills NSW 2147 Upper Coomera QLD 4209 Australia Australia Australia T: 03 9887 2131 T: 02 9838 0000 T: 07 5679 6821 oasisaquatics.com.au info@oasisaquatics.com.au PLT SERIES POOL & SPA PUMP - INSTALLATION AND OPERATION MANUAL Page 13 of 13...
