QUICK START GUIDE
Space-Magnetic Field Visualization System
EPS-02EMFv2
NOISE LABORATORY CO., LTD.
Edition 2.00
AEA00096-00E-1
Contents
1. INTRODUCTION
2. INCLUDED ITEMS
3. SYSTEM REQUIREMENTS
4. SETUP MEDIA CONTENTS
5. SETUP PROCEDURE
6. SUPPORT NETWORK
NOTICE
• The content of this guide is subject to change without prior notice.
• The reproduction or transfer of this guide in any form whatsoever is
prohibited without the prior written permission of the Noise Laboratory
Co., Ltd. (NoiseKen).
• Please contact NoiseKen if you find any unclear points, errors,
omissions, or other inconsistencies.
• NoiseKen will not be liable for any damages that occur due to improper
usage of this product by the customer, failure to follow the information
in this product manual, or repair or modifications performed by a third
party other than NoiseKen or a party designated by NoiseKen.
The trademarks and company names appearing in this guide are
•
trademarks or registered trademarks of their respective companies. In
this guide, the trademark symbol (TM) and registered symbol (R) are
omitted.
1. INTRODUCTION
1
Thank you for purchasing the EPS-02EMFv2 Space-Magnetic Field
1
Visualization System. The setup procedure is described below.
2
Also, please read this guide together with the instruction manual in
2
the setup media.
3
4

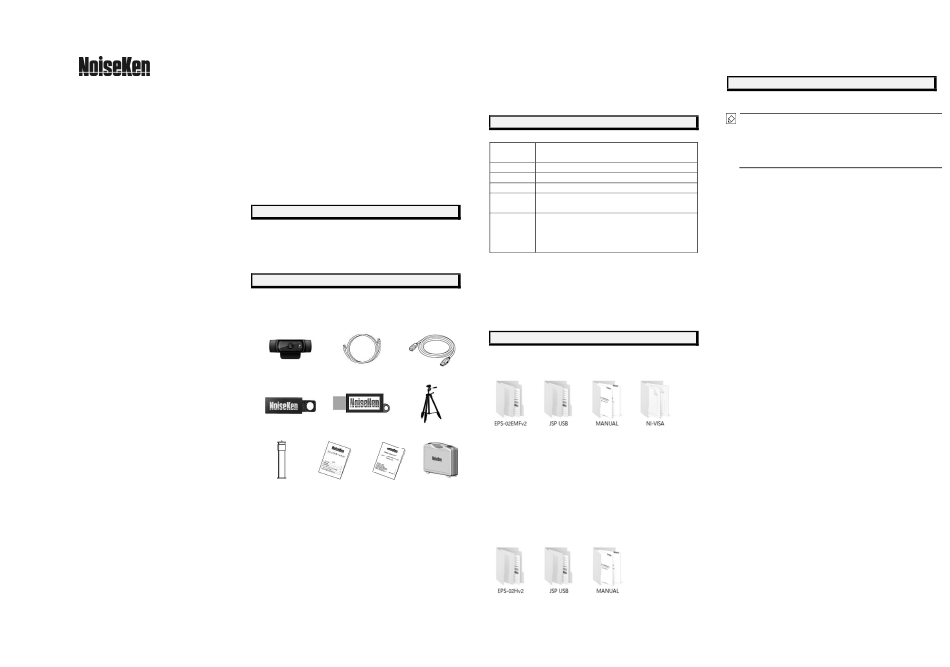

2. INCLUDED ITEMS
Before starting use, check that the parts and accessories below are
included with the product.
A B
D E
G
H
A: Web camera
・
Main Part · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
・ Warranty · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
B: LAN cable (2 m) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
C: USB extension cable (2 m) · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
D: Setup media (EPS-02EMFv2 / EPS-02Hv2) · · · · · · · · · · · 1
E: USB protect key · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
F: Camera tripod
・
Main Part · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
・
Storage bag · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
G: Extension pole · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
H: Japanese Quick Start Guide · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
1
I: English Quick Start Guide (This guide)
J: Storage case · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1
* The key of A, D, H and I are included in the upgrade version, and
the key of D is disk media.
* The key of D, E, H and I are included in the secondary license
version, and the key of D is disk media.
3. SYSTEM REQUIREMENTS
Check the following system requirements before setup.
OS Microsoft Windows 10 (Japanese / English version)
Microsoft Windows 11 (Japanese / English version)
CPU Dual Core 2.4 GHz or faster recommended
Memory 8 GB or more recommended
Storage 5 GB or more
Display 1366 × 768 dots or more
1920 × 1080 dots recommended
Other ・ Operation cannot be guaranteed when using
online storage or software that uses cloud
services.
・
2 empty USB ports
* The upgrade version and the secondary license version require a DVD
drive for installation. When using EPS-02Hv2, the magnetic field
measuring instrument driver require a DVD drive for installation.
* If software with high CPU utilization is running, the operation may
become unstable.
* Refer to the manufacturer's website for the latest operation warranty of
each device such as camera.
C
4. SETUP MEDIA CONTENTS
The contents of the setup media are as follows.
[Setup Media (EPS-02EMFv2)]
F
I J
(1) EPS-02EMFv2 folder
The EPS-02EMFv2 installers are stored.
(2) JSP USB folder
The USB protect key drivers are stored.
(3) MANUAL folder
The PDF files of the instruction manual for EPS-02EMFv2 are stored.
(4) NI-VISA folder
The NI-VISA installer is stored.
[Setup Media (EPS-02Hv2)]
(1) EPS-02Hv2 folder
The EPS-02Hv2 installers are stored.
(2) JSP USB folder
· · · · · · · · · · · · · · · · 1 The USB protect key drivers are stored.
(3) MANUAL folder
The PDF files of the instruction manual for EPS-02Hv2 are stored.
Log on to Windows with an ID that has administrator privileges and
follow the steps below to setup.
＜In the case of upgrade version＞
Follow steps (1), (5), and (7) to upgrade. It is not necessary to uninstall
the EPS-02EMF or EPS-02H software beforehand. When the
EPS-02EMF or EPS-02H software is not needed, uninstall it using
"Uninstall or change a program" in "Control Panel".
[EPS-02EMFv2, EPS-02Hv2]
(1) Installation of the USB protect key driver
①
Insert the USB protect key into the USB port of the PC.
②
Select "unknown devices" or "HardKey" of "other devices" in
Device Manager and install the driver. The driver file is located
in the [JSP USB] folder of the setup media.
[EPS-02EMFv2]
When using EPS-02EMFv2, follow the steps below to setup.
(1) Network Address Setting
①
Set the IP address of the PC. From the "Control Panel",
select "Network and Sharing Center", and click "Change
adapter settings" from the list on the left side.
② The adapters that can be connected to the network are
displayed. Double-click the adapter (local area connection)
that is connected to the oscilloscope to display its properties.
Select "Internet Protocol Version 4" and click "Properties".
③
Set the IP address to "192.168.99.3" and the subnet mask
to "255.255.255.0", and click OK. This completes the IP
address setting of the PC.
④
Set the IP address of the oscilloscope. Start the
oscilloscope and press the "SETUP" button. When the
"SYSTEM" screen appears, select "Network". Click "Change
adapter settings" from the list on the left side.
⑤
Select "Local Area Connection". Select "Internet Protocol
Version 4(TCP/IPv4)" and click "Properties".
⑥
Set the IP address to "192.168.99.100" and the subnet mask to
"255.255.255.0", and click OK. This completes the IP address
setting of the oscilloscope.
*When setting the IP address of the oscilloscope, also refer to the
instruction manual of the oscilloscope. If the operation method is
different, give priority to the instruction manual of the oscilloscope.
(2) Installation of NI-VISA
①
Load the setup media and open the [NI-VISA] folder. Execute
[Install.exe].
②
The installation program will start. Follow the instructions on the
screen to install. When installing, make sure that the
installation items include NI-VISA.
(3) Installation of the EPS-02EMFv2 software
①
Load the setup media and execute [EPS-02EMFv2_En.msi] in
the [EPS-02EMFv2]-[English] folder.
②
The installation program will start. Follow the instructions on the
screen to install.
2
