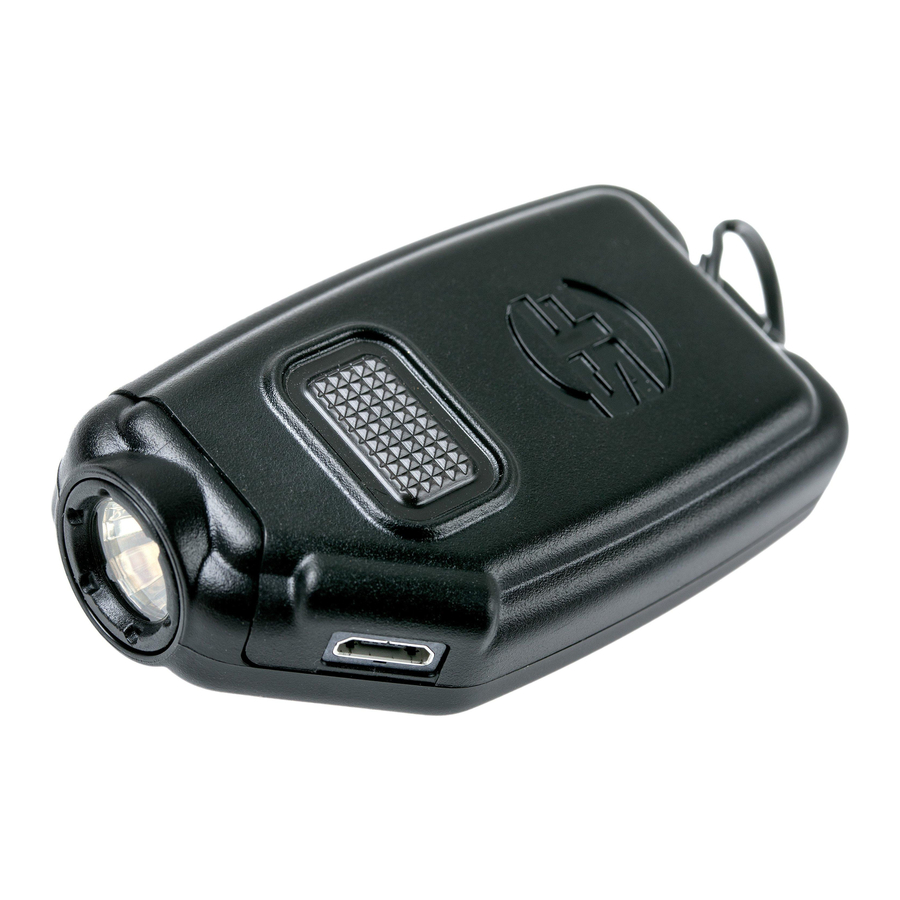

Surefire SIDEKICK, SIDEKICK-A - Ultra-Compact Keychain Light Manual

Specifications

All measurements as per ANSI standard.

WE BUILD THE BEST

This innovative SureFire illumination tool was designed, engineered, and manufactured in America—using the best components sourced worldwide—to provide you with a trouble free service and easy attachment to your keys. Please be sure to review this manual to ensure optimal performance.

KIT CONTENTS

• Sidekick
• 6 inch Micro USB to USB cable
• Key ring
• Mini carabiner clip

LIGHT OPERATION

Fully press activation button until light clicks on; this will provide constant-on output in the low setting. Click off and on again, within one second, for medium setting. Repeat for high-output setting. If Sidekick has been off for more than one second, it will default to its lowest setting on first click. See figure 1.

RECHARGING

Insert the micro-USB end of the included cable into the port on Sidekick then insert the USB end into a wall (AC) or car (DC) using appropriate connector. The light will continuously flicker while connected to a power source to signal a proper connection. Full charge cycle may take up to 3 hours. The LED will constantly illuminate at the low output setting when fully charged. See figure 2.

MAINTENANCE

Use a clean, dry cloth to wipe off body and window.
For additional tips on maintaining your SureFire illumination tool, visit www.surefire.com/faqs-maintenance.

PROGRAMMING SIDEKICK'S ACTIVATION SEQUENCE

Sidekick's default activation sequence goes from low to medium to high output and then off; however, it can also be programmed by the user to reverse this sequence— high-med-low-off—to accommodate personal preference. Sidekick must be plugged into its charger to program the activation sequence. Once programmed and removed from its charger, the activation sequence will not change unless Sidekick is reprogrammed to its default sequence.

To reverse Sidekick's default activation sequence

1. Plug Sidekick into its charger
2. Press and release the pushbutton three times until high output is activated
3. Wait 5 or more seconds, then press pushbutton once more, turning Sidekick off
4. Remove Sidekick from its charger and test activation sequence— it should now be high-med-low-off

To restore Sidekick's activation sequence to its default setting (low-med-high-off), repeat the above procedure with the following exception in Step #2: Press and release pushbutton three times until LOW output is activated.

ACCESSORIES

SureFire makes a full line of accessories for most of its illumination tools. For a complete listing, visit www.surefire.com/parts-accessories.

LIGHTKEEPER ™ Belt Clip Key Reel

HEADBAND V94 Adjustable Headband.
