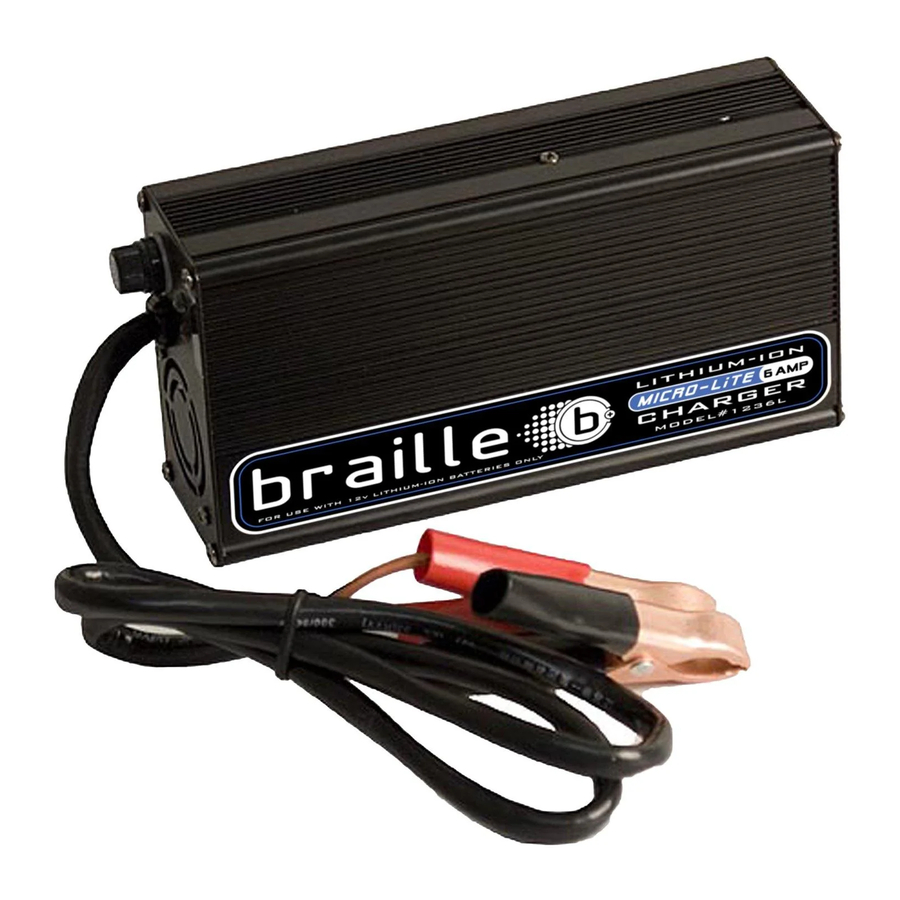

Braille Battery 1236L - 12 Volt Lithium Charger Quick Guide

Features

1. Short circuit protection, charge out put not active and will not spark if touched together
2. Overload protection, current-‐limited
3. Reverse polarity protection, connecting battery in reverse does not damage charger
4. Automatic multi- rate charging, CCCV profile
5. 2 LED display, LED 1 Red (power on), LED 2 Red (charging) and Green (full)
6. Low voltage protection, charger does not start if battery's voltage is too low

Operation

1. Connect charger to 110VAC/220VAC wall socket
2. Turn on power switch on back panel
3. Connect DC output cord to battery terminals
4. When LED2 turns green, battery is fully charged

Notes

1. Charger will make clicking sounds when battery is almost fully charged, this is normal and can last a few minutes
2. Designed for Braille 12V lithium racing batteries only, not for charging any other type of battery.
3. Always place the charger in a well ventilated and dry environment
4. The chargers aluminium housing is the heat sink, don't cover it, or the fan opening
5. External Fuse on DC output side is unused and not active
6. To calculate charge time you must take the battery amp hour and divide it by the Charger Amp hour output which will equal the amount of time to full charge based on a 0% level of battery.
   Example: (10 amp battery / 2 amp charger = 5 hours to full charge from 0%)

Charger Specifications

Model: 1236L

DC Output
DC Output voltage, nominal: 12V
DC Output current, maximum: 6A

AC Input
AC Input voltage range: 90-132VAC
AC Input voltage nominal: 110VAC/220VAC
AC Input frequency: 50-60Hz

Mechanical
Dimensions: 5.5 x 3.5" x 2" (140 x 90 x 50 mm)
Net weight: 2.5lbs (1.13kg)
Operating Temperature: 14F - 113F (-10C - 45C)
Storage Temperature: -40F - 158F (-40C - 70C)
AC Input: US plug, EIC320/C13 connector, 1.5 meter
DC Output: Alligator clip, 1.5 meter

Regulatory
Safety standart: CE listed, UL compliant
Safety-Europe: EN60335-2-29:2002

Packing List
1x charger; 1x user manual; 1x AC power cord
