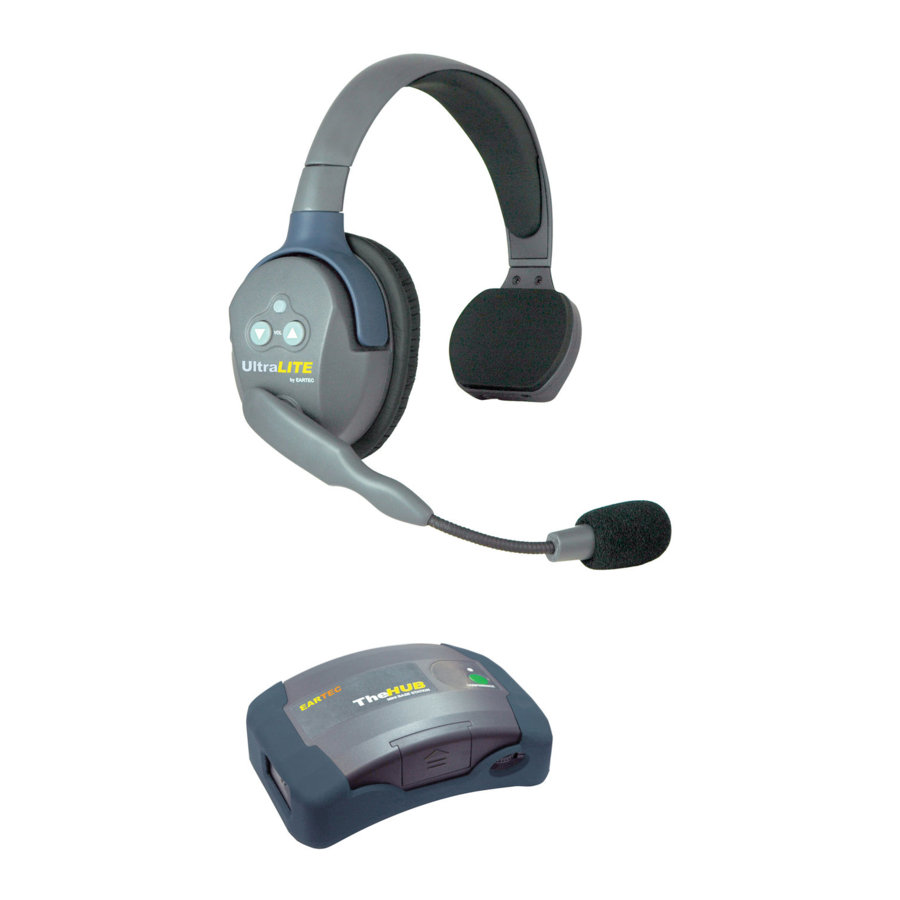

Eartec The HUB Series, UltraLITE Series - Headset Manual

EXCELLENT PERFORMANCE
Effective range up to 1/4 mile.

WEAR ON LEFT OR RIGHT EAR
Mic boom swivels 270 degrees.

LITHIUM BATTERIES
Provide continuous 6 hr operation and are field replaceable.

DECT TECHNOLOGY
(DIGITAL ENHANCED CORDLESS TELECOMMUNICATION)

The HUB must be turned "ON" to link the corresponding REMOTE headsets.

Battery

The HUB and all UltraLITE headsets are powered by a Lithium Polymer battery that will operate 6 hours when fully charged.

Charging

1. Batteries are charged via the multi ‐charger.
2. Insert the batteries making sure the contacts are properly aligned.
3. RED: Charging; GREEN: Fully Charged.

Installation

1. The HUB: Slide battery compartment open, insert battery and click closed.

2. Headsets: Press the release button located on the b ottom of the battery compartment.

3. Insert the battery into the compartment (arrow indicates proper direction) and snap door closed.

Low Indicator

A repetitive beep (every 20 seconds) indicates low power – battery should be charged or replaced.

Battery Care

To preserve optimum charge level remove battery from headsets when system not in use.

The HUB

Operation

SYSTEM STARTUP

1. Select AC Adapter or battery, then power up The HUB by rotating the ON ‐OFF/Volume dial clockwise. LED confirms power is on.
2. Turn ON each UltraLITE headset by pressing the power button located above the volume controls. A flashing blue LED on the earcup confirms the headset is in search mode.
3. Flashing LEDs change to solid blue to indicate that headsets have successfully connected.

SET VOLUME

UltraLITE headsets feature 5 volume settings. Select the desired volume by slowly clicking the UP or DOWN buttons. An audible tone reflects volume VOLUME UP / DOWN level. A double tone indicates low or max volume has been reached.

Note: If using a wired headset with the HUB, adjust sound level with volume dial.

CONFERENCE MODE

Each time The HUB is turned ON the default setting will be dual channel. Up to 3 headsets can communicate privately on ChA & ChB. Pressing the green CONFERENCE button connects the channels to link all 6 headsets (LED turns red).

SHUT DOWN

Rotate The HUB ON- OFF/Volume dial until it clicks off. Press and hold power button on UltraLITE headsets for 4- 5 seconds to turn off.

Note: To preserve optimum charge level remove battery from headsets when system not in use.

Headset Adjustments

Position microphone one- finger width from your mouth. Speak into the front- indicated by TALK.

Boom swivels so headset can be worn on left or right.

Microphone mutes when boom is in "UP" position.
