Precision Power PP36PB-12 - Power Supply Manual

Review the following important safety warnings to avoid bodily injury or damage to equipment during installation or operation of this device. Read ALL instructions before attempting to install or operate this device. This device is intended for indoor use only. To prevent the risk of fire or electrical shock, install in dry location free from damp or wet environment, or potentially damp or wet environment. Adhere to all acceptable operating environment limitations as listed to prevent the risk of of fire or electrical shock (see user specifications within User's Manual) NO user-replaceable parts within this device. To avoid bodily injury, risk of fire or electrical shock do not attempt to remove cover of device. Device is not designed for use with any alternate connection to AC power than as stated within user specifications of this user's manual.

NOTE: The reference to "PB36" within this User Manual refers to Precision Power Model PP36PB-12 and all package accessories as listed below.

CONTENTS OF NXGM PACKAGE

NOTE: Please verify all standard contents are accounted for upon receipt of PB36

STANDARD: (1) DC Power Supply; (3) Cable Ties; (1) 3- Pin Connector; (1) User's Manual

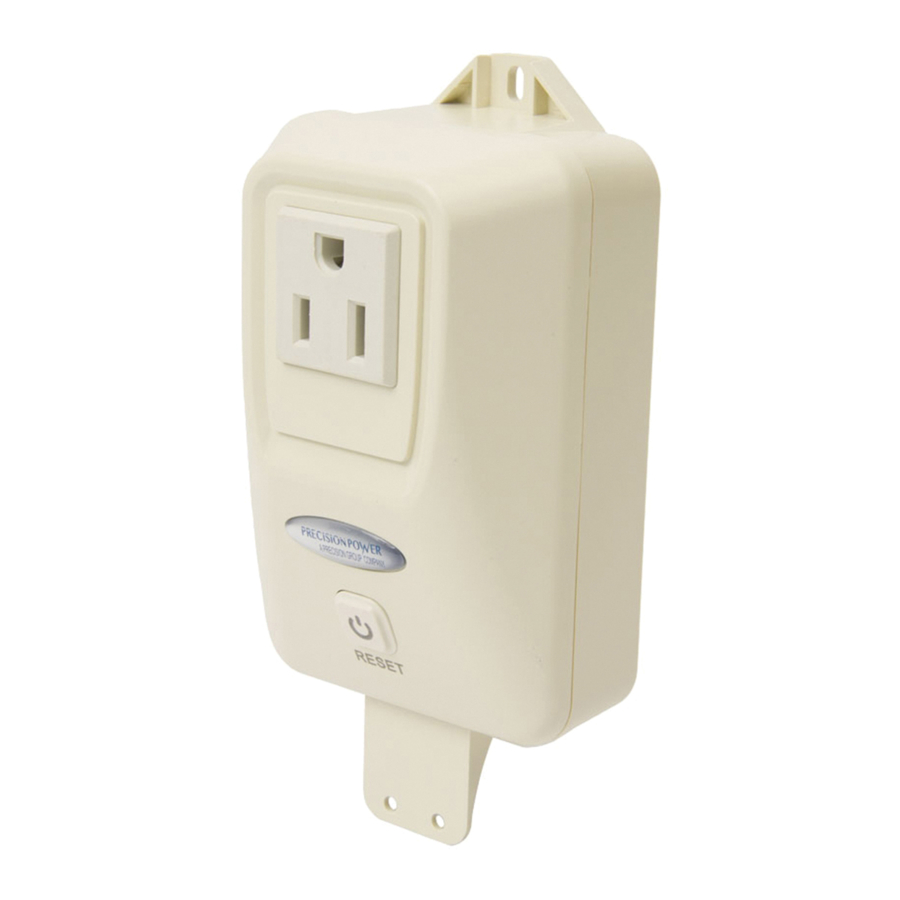

OVERVIEW

1. PASS THROUGH AC INPUT OUTLET
2. SCREW FOR MOUNTING TO WALL PLATE
3. NETWORK INTERFACE RESET BUTTON
4. 3 PIN CONNECTOR AND CABLE GUARD
5. DC/CONTROL TERMINAL OUTPUT

PB36 INTRODUCTION

PB36 is designed and intended for use as a compact outlet mount DC power supply device for Indoor and Outdoor 12Vdc Optical Network Terminals (ONT) as well as wireless local loop applications. The PB36 is designed to provide constant supply of 12Vdc DC output power during normal operating conditions. The PB36 is equipped to supply direct DC power to ONT or to inline Battery Backup Unit. The PB36 also provides customer facing Network Interface Reset Intelligence to provide integrated ONT reset technology designed to reduce Provider OPEX.

Network Interface Reset Button - Allows for reset of DC power output when pushed and held for 2 seconds. This provides reset/ reboot option for Optical Terminal Network without having to unscrew the PB36 from wall plate mount, unplug and replug at AC outlet in order to reset DC power output.

INSTALLATION

1. Inspect the PB36 for any visible damage before proceeding to following steps. If the PB36 shows visible signs of any damage at time of unpacking, then device should not be installed.
2. Plug 3-Pin Connector with attached cable into DC/ Control Terminal Output.
3. Using provided cable ties, secure cable to cable guard running cable through provided holes in cable guard.
4. Remove AC wall plate screw.
5. With wall plate still in place over AC wall outlet, plug the PB36 into AC outlet and use provided PB36 screw to secure the PB36 to the AC outlet.

NOTE: Precision Power reserves the right to change or correct the contents of this document and does not assume any responsibility for omissions or errors.

TECHNICAL SPECIFICATION
