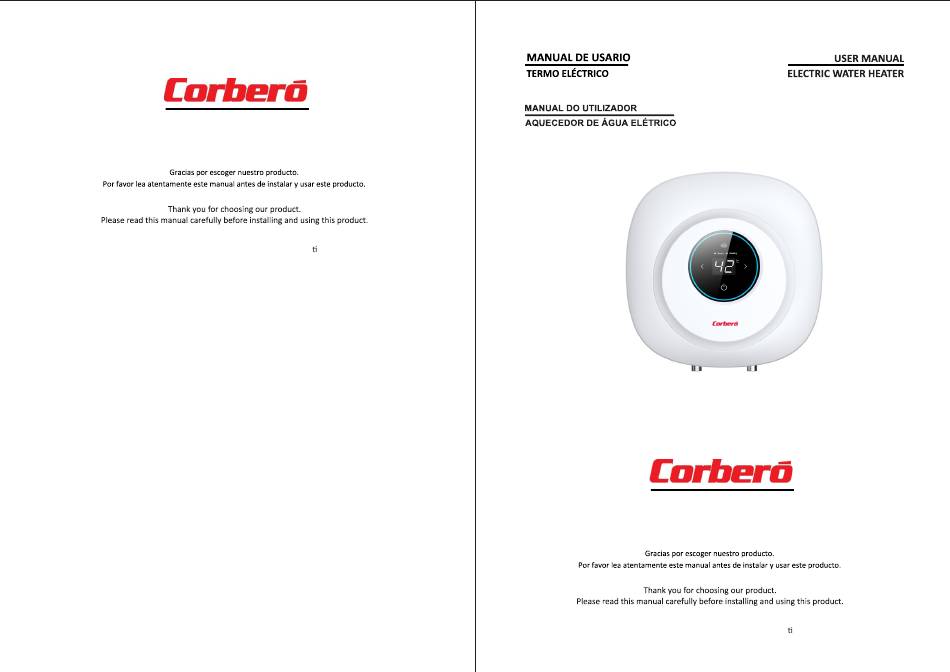

- Page 1 CTWG15CD / CTWG30CD Obrigado por ter escolhido o nosso produto. Por favor, leia atentamente este manual antes de instalar e u lizar este produto. CTWG15CD / CTWG30CD Obrigado por ter escolhido o nosso produto. Por favor, leia atentamente este manual antes de instalar e u lizar este produto.
- Page 3 Smart Light Heating Indicator Light ELCB Control Panel Outlet Pipe(red) Inlet Pipe(blue)
-
Page 4: Installation Precautions
Installation Precautions The wall for mounting the appliance shall be able to withstand at least fourfold of the total mass of the appliance when filled with water. Take reliable reinforce- ment measures when necessary. Appliance should be installed as close as possible to frequent water points to reduce heat loss from pipelines. - Page 5 Warning: The appliance must be hung securely to prevent personal injury and property damage from falling. Tube Connection CTWG15CD CTWG30CD The specification of inlet and outlet water interface of this appliance is GI/2. Connect pipes according to the following figure.
- Page 6 Multiple Outlet Connection If the user wants to implement a multi-pipe supply system, please refer to the method shown on the drawing for connection. Operador Sensor de temperatura Water Inlet Joint L-entrada Castanho Ground Connection Amarelo/verde Drain Handle Safety Valve Azul Thread Screw Controlador...
- Page 7 Warning The pressure relief temperature of the safety valve may cause scalding. Scalding may occur if the temperature is set to more than 50℃. It must be mixed with cold water before use. The appliance uses 220-240V~/50-60Hz power supply. Do not pull or plug the power cord with wet hands. Do not close the water inlet valve, and do not turn on the power supply when the appliance is not filled with water, so as not to damage the Caution...
-
Page 8: Method Of Usage
Method of Usage Water Injection When the water heater use at the first time or used again after outage for a long time, should inject water. Open all valves in pipeline, and then turn on the hot water tap. When the water continuously flow, it replies that water heater have been filled with water. - Page 9 Description of Usage (1) “ ” key: Repeatedly operate this key and the system will enter power-on-wait. (2) “ ” key: repeatedly operate this key to enter and exit the “Smart” mode in the power-on state. (3) “ ” key and “ ”...
- Page 10 Identify and Deal with Common Faults If water heater broke down during normal use, please immediately cut off the power, check according to the following content. fault phenomenon Approach cause of issue ①Whether there is no water outside ①Whether there is no water outside or the water pressure is too low or the water pressure is too low no water...
- Page 11 Wiring Diagram Cleaning Use dry cloth or wet cloth to dip a little of neutral cleaner to wipe water heater surface, do not use gasoline or other solvents, mustn't spray water. Descaling According to the local water quality condition, when water heater using a certain time (usually 1 months), need to remove dirty scale: first turn off the water heater, close the inlet valve, separate the connection between inlet and outlet, empty inner tank water.
-
Page 12: Product Specifications
Caution blocked. If blocked, please repair in time. Drainage must be within the container under the water temperature below 40 ℃, avoid scald. Product Specifications Model CTWG15CD CTWG30CD Parameter Rated Capacity Net Weight(anhydrous condition) 11.2kg Rated Power... - Page 13 Panel de control...
- Page 14 Indicador de aquecimento Tubo de saída (vermelho)
- Page 15 CTWG15CD CTWG30CD 11.2kg 1500W 380x380x325mm 440x440x390mm 220-240V~ / 50-60Hz 0.75MPa 30 to 80℃...
- Page 16 Operador Disyuntor térmico L-entrada L-salida Controlador Sensores de temperatura...
- Page 18 45...80...
