Summary of Contents for MIXER 35

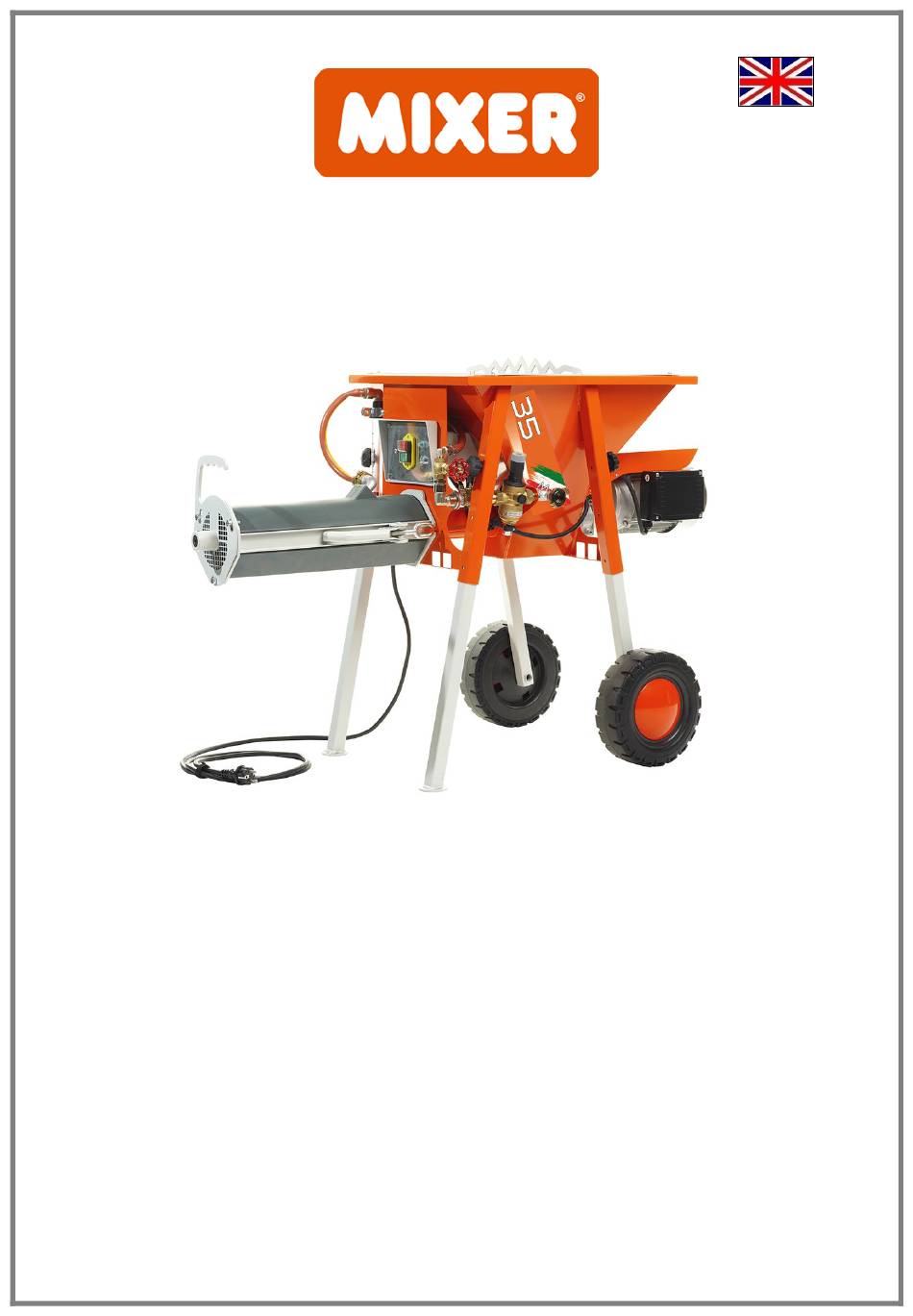

- Page 1 MIXER 35 MANUAL INSTRUCTIONS ORIGINAL INSTRUCTIONS Revision n…… of …… MIXER TECHNOLOGY srl Via dei Carabinieri, 45, 36040 Torri di Quartesolo (VI) Italy www.mixersrl.com...
- Page 2 CHECKS BEFORE SWITCHING ON ............. 13 MACHINE PREPARATION ................. 14 CLEANING OF CHAMBER MIXING ............. 15 SWATER DRAINAGE DURING WINTER PERIOD ........... 16 RESEARCH OF MALFUNCTIONS ..............17 ROUTINE MAINTENANCE ................. 17 WARRANTY ................... 18 MIXER 35 manual instructions Mixer Technology srl pag.2...
-
Page 3: Reserved Rights
RESERVED RIGHTS The contents on this manual can’t be reproduced and disclosed (totally or partially) without written authorization of the Manufacturer. MIXER 35 manual instructions Mixer Technology srl pag.3... - Page 4 Power supply 230 / 50 Volt / Hz Motor power 6 o 12 Mixing capacity l /min Hopper capacity l (liters) Mixing chamber weight Hopper weight Total weight of the machine Noise level MIXER 35 manual instructions Mixer Technology srl pag.4...
-
Page 5: Dimensions Of The Machine
DIMENSIONS OF THE MACHINE MIXER 35 manual instructions Mixer Technology srl pag.5... - Page 6 MIXER 35 manual instructions Mixer Technology srl pag.6...
-
Page 7: Parts List
Pressure reducer Wheel Gear motor Hopper frame Water adjustment tap Water inlet in the mixing chamber Back frame support Water drain Joint moteur Powder dosing screw Pastrous products mixing axis Protection grid MIXER 35 manual instructions Mixer Technology srl pag.7... - Page 8 • 6 l (liters) dosing screw: for glues, smoothers and low thickness products (water- repellent with difficulty in mixing); • 12 l (liters) dosing screw: for premixed mortars and gypsum, lime / gypsum, lime / cement-based plasters; MIXER 35 manual instructions Mixer Technology srl pag.8...
-
Page 9: Safety Instructions
Don’t introduce objects thought the hopper protection grating. Don’t use the machine with the open grating. Don’t step or pull tubes and the electrical connections. MIXER 35 manual instructions Mixer Technology srl pag.9... -
Page 10: Residual Risks
However, the machine presents residual risks, risks that can’t be eliminated at the source and involving a training and the operator’s attention. RESIDUAL PREVENTIVE ZONE DANGER RISKS MEASURES Cutting hazard in Hopper case of contact protection Education, training. with the bag grating cutting blade MIXER 35 manual instructions Mixer Technology srl pag.10... -
Page 11: Water Connection
All the electrical connections (plugs - sockets) must be CEE industrial type with protection degree IP67. The use of extension cords is admitted only if made in safety standards (cross- section of conductors, insulation, earthing, etc..) MIXER 35 manual instructions Mixer Technology srl pag.11... -
Page 12: Electrical Panel
ELECTRICAL PANEL REF. COMMAND FUNCTION Red button Stop machine Green button Run machine Thermal Warning light on: presence of voltage in the Voltage led panel MIXER 35 manual instructions Mixer Technology srl pag.12... -
Page 13: Checks Before Switching On
Make sure that the plug of the power supply cable is connected to the plant supplier and that the main electric switch is off. Make sure that the water hose is well stretched avoiding any constriction. Use the compulsory personal protective devices provided by own employer. MIXER 35 manual instructions Mixer Technology srl pag.13... -
Page 14: Machine Preparation
Increase or decrease the water flow rate incoming in the trunket acting on the related adjustment valve till obtaining the wished consistency; c. Stop the machine by pressing the red button on the electrical panel; MIXER 35 manual instructions Mixer Technology srl pag.14... - Page 15 Open the lever (see figure below pt. 1) and slide off the mixing chamber from the hopper; Extract pastrous products mixing axis (see figure below pt. 2) clean it with the metallic brush (standard supplied); MIXER 35 manual instructions Mixer Technology srl pag.15...
- Page 16 SWATER DRAINAGE DURING WINTER PERIOD 1) Disconnect the water hose from the machine; 2) Disconnect the water inlet hose from the mixing chamber 3) Open the tap of the system water drain; MIXER 35 manual instructions Mixer Technology srl pag.16...
-
Page 17: Routine Maintenance
3) clean the mixing chamber. ROUTINE MAINTENANCE The operations of routine maintence must be done only by competent and experienced staff. The replacement of the machine components must be carried out only with original spare parts. MIXER 35 manual instructions Mixer Technology srl pag.17... -
Page 18: Warranty
8) It is explicitly agreed upon, that the manufacturer shall not be held responsible for any liability following any possible damages that the purchasers may suffer resulting from loss of or diminished production due to possible construction defects subject to this warranty. MIXER 35 manual instructions Mixer Technology srl pag.18... - Page 19 Thank you for choosing our product MIXER TECHNOLOGY srl Via dei Carabinieri, 45, 36040 Torri di Quartesolo (VI) Italy www.mixersrl.com MIXER 35 manual instructions Mixer Technology srl pag.19...
