Summary of Contents for Playcraft Brazos River

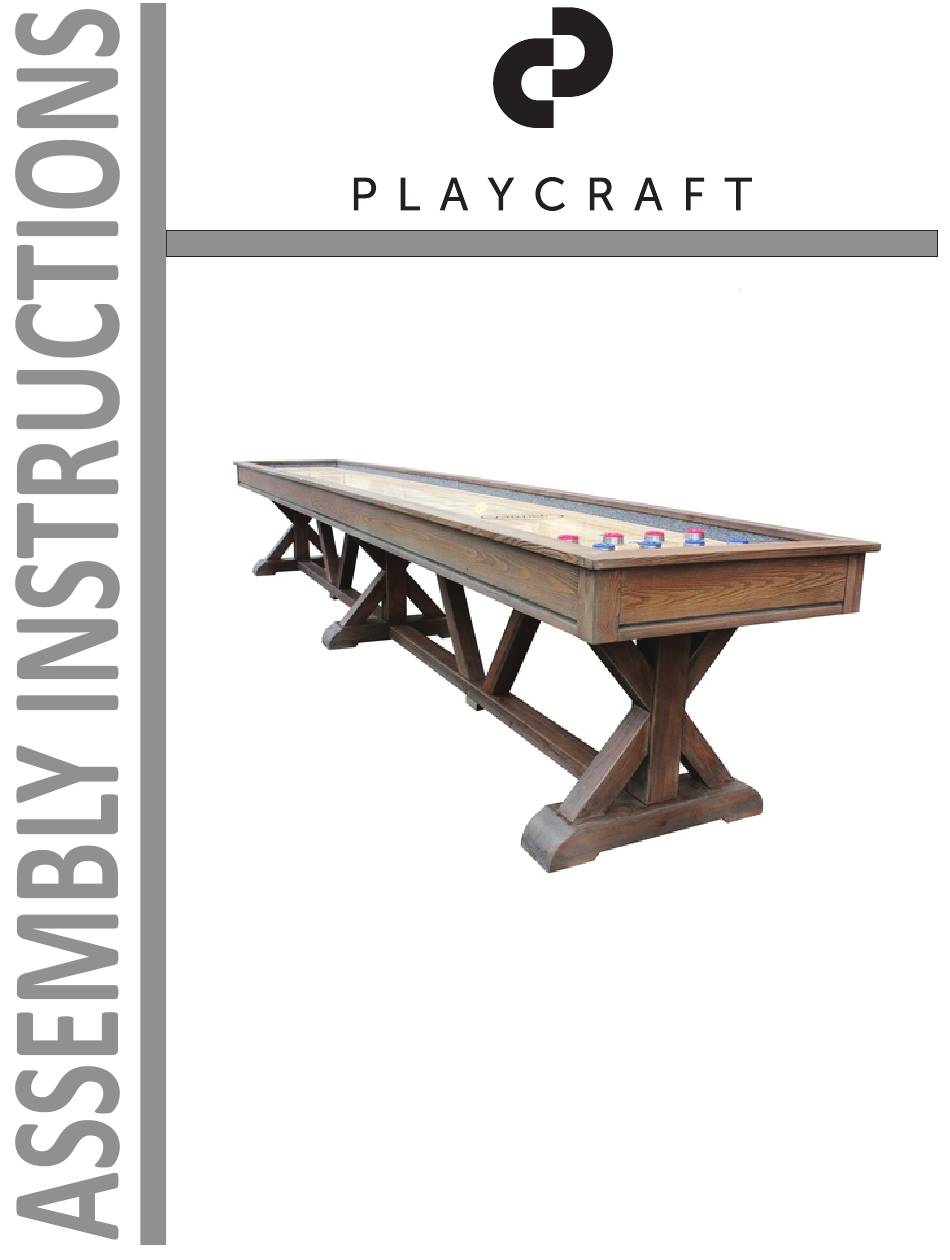

- Page 1 Brazos River 16’ Shuffleboard Table...
- Page 2 Congratula�ons on selec�ng a Brazos River shuffleboard table Please contact us via email at support@playcra�.com should you require any assistance. Please carefully read all safety instruc�ons and direc�ons before proceeding Your table is designed for use indoors in a climate controled environment only.
-
Page 3: Parts List
Parts List PART # IMAGE DESCRIPTION END LEG CENTER LEG LONG CENTER BEAM ANGLED SUPPORT BEAM BUTCHER BLOCK PLAYFIELD CRADLE CLIMATIC ADJUSTERS HANGER BOLT - 3/8” x 4-5/8” FLAT WASHER - 3/8” ID HEX NUT - 3/8” ID HEX BOLT - 3/8” x 3-1/8” FLAT WASHER - 3/8”... - Page 4 FIG. 1 Wood Dowel FIG. 2 page 3...
- Page 5 FIG.3 CAUTION: Carefully turn over the leg support assembly using three or more people being certain that each leg is supported and turned at the same �me. FIG.4 page 4...
- Page 6 FIG.5 CAUTION: Three or more people are recommended for following steps 1. Carefully move the leg support assembly to the loca�on where the table will be played. 2. Place the cradle on the leg support assembly being certain the center is properly supported while being li�ed.
- Page 7 CAUTION: Three or more people are recommended for following steps 1. Be certain the cradle assembly is in the final locaiton where the table will be played 2. Turn the playfield onto a long side or face down onto a so�, smooth surface that will not damage the polymer coa�ng 3.
- Page 8 FIG. 9 The assembly of your Playcra� Brazos River pro-series shuffleboard table is complete and the table is almost ready to be played. Some se�ling may have occured since the cradle leveling process shown in FIG 5. Addi�onal se�ling may occur which is normal. The cradle needs add�onal �me to adjust to the weight of the playfield and the table needs �me to acclimate to the climate of the room.
- Page 9 page 8...
- Page 10 Preparing the playfield Your Playcra� shuffleboard table includes a butcher block playfield with a thick, polymer coa�ng. The playfield can be cleaned using Playcra� Cleaner Polisher applied to a so� cloth. Alternately use a mild mul�-purpose cleaner or glass cleaner applied modestly to a so� cloth. Sponges or abrasive cleaners should not be used as they could scratch the polmer finish.
-
Page 11: Customer Service
Customer Service For ques�ons on assembly or for missing or damaged parts, please contact us toll free at (888) 367-3095 or via email at support@playcra�.com. Please visit our website at www.playcra�.com to see more industry leading Playcra� and Playcra� Sport game tables. Thank you for choosing Playcra�! Global Merchants, Inc.
