- Page 1 Original User Manual – A S Mini Heat Pump REBO Mini Heat Pump AR-HE-WP Please follow all security measures in this user´s manual to ensure a secure use. Thank you for trusting in AREBOS.
-
Page 2: Table Of Contents
Original User Manual – A S Mini Heat Pump REBO Table of Contents 1 Introduction and safety instructions ..3 2 Description ..........6 3 Transport information ......7 4 Start-up of the Heat Pump ......8 5 Location and connection ......9 6 Electrical Wiring ........ -
Page 3: Introduction And Safety Instructions
Original User Manual – A S Mini Heat Pump REBO Thank you for purchasing our product. Please read the operating instructions carefully before using the product for the first time. If you give the product to a third party, this manual must be handed over with it. - Page 4 Original User Manual – A S Mini Heat Pump REBO WARNING! This signal symbol/word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury. injury if not avoided. CAUTION! / ATTENTION! This signal symbol/word indicates a hazard with a low level of risk which, if not avoided, may result in a minor or moderate injury.
- Page 5 Maximum length of the wire breaker 1,5 mm² 4 mm² 6 mm² 10 mm² AR-HE-WP 10 A 84 m 135 m 200 m 335 m These values are given as a guideline, only the intervention of an authorized technician can determine the values corresponding to your installation.
-
Page 6: Description

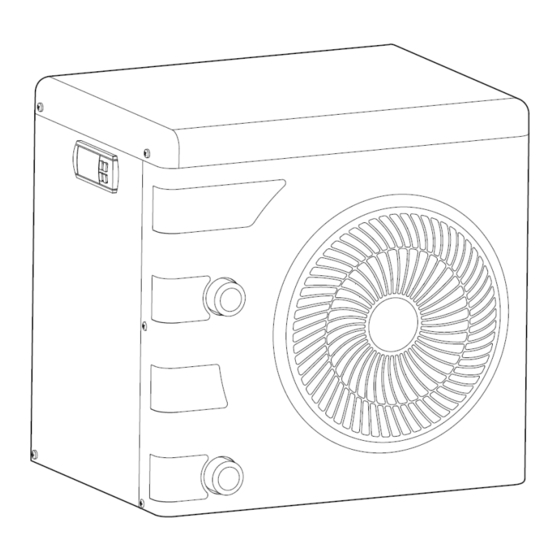

2 Description With your Heat Pump • Water PVC connector diameter 32 - 38mm (pcs: 2) • User and service manual • 1.5melectric extension and socket with 30mA earth leakage protection • Anti-vibration base (pcs: 4) Dimension Model: AR-HE-WP... -
Page 7: Transport Information
Original User Manual – A S Mini Heat Pump REBO 3 Transport information Delivery of the packaging For the transportation, the heat pump is covered with a carton box. To preserve from any damage, the heat pump must be transfer on is pallet. All material, even if the transport is chargeable to supplier, can be damaged during its routing at the customer and it is the responsibility of the addressee to make sure of the correspondence of the delivery.The addressee has to written all the reserves at the reception on the delivery note of the... -
Page 8: Start-Up Of The Heat Pump
Original User Manual – A S Mini Heat Pump REBO 4 Start-up of the Heat Pump 1. ON/OFF : Press for 2 seconds , start or stop the heat pump Long press for 6 seconds, then press to exchange C or F ATTENTION: THESE SETTING SHOULD SWEEP ALL THE PREVIOUS SETTING 3. -
Page 9: Location And Connection
Original User Manual – A S Mini Heat Pump REBO 5 Location and connection ATTENTION: Please observe the following rules when installing the heat pump. 1. Any addition of chemicals must take place in the piping located downstream from the heat pump. - Page 10 Original User Manual – A S Mini Heat Pump REBO ATTENTION: Never install the unit in a closed room with a limited air volume in which the air expelled from the unit will be reused, or close to shrubbery that could block the air inlet. Such locations impair the continuous supply of fresh air，resulting in reduced efficiency and possibly preventing sufficient heat output.
- Page 11 Original User Manual – A S Mini Heat Pump REBO equipment of this sort must always be fitted in the piping on the downstream side of the heat pump, and it is recommended to install a check-valve to prevent reverse flow in the absence of water circulation.
-
Page 12: Electrical Wiring
Original User Manual – A S Mini Heat Pump REBO 6 Electrical Wiring Mini pool heat pump wiring diagram Basic electrical wiring... -
Page 13: Specifications
Original User Manual – A S Mini Heat Pump REBO 7 Specifications Technical data CIPU MINI pool heat pumps MODEL AR-HE-WP * Performance at 80℉ Air, 80% RH, 80℉ Water Heating capacity BTU/h 12500 Power consumption 0.65 C.O.P. * Performance at 80℉ Air, 63% RH, 80℉ Water... -
Page 14: Accessories & Fitting
Original User Manual – A S Mini Heat Pump REBO 8 Accessories & fitting Accessories list Anti-vibration base, 4pcs 2 sets 2 sets 9 Troubleshooting Error code display on LED wire controller Fault performance Cause Solution If power is cut No display Check power and switch If switch is off... -
Page 15: Exploded Diagram
Original User Manual – A S Mini Heat Pump REBO 10 Exploded Diagram Exploded Diagram Model: AR-HE-WP 11 Maintenance Front panel Base panel Fan & motor Evaporator Right bracket Top panel Compressor Left panel Titanium heat exchanger Fan cover... -
Page 16: Service Manual
Original User Manual – A S Mini Heat Pump REBO Maintenance 1. You should check the water supply system regularly to avoid the air entering the system and occurrence of low water flow, because it would reduce the performance and reliability of HP unit. - Page 17 Original User Manual – A S Mini Heat Pump REBO possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. “No Smoking”...
- Page 18 Original User Manual – A S Mini Heat Pump REBO equipment. Intrinsically safe components do not have to be isolated prior to working on them. 11 Repair to intrinsically safe components Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use.
- Page 19 Original User Manual – A S Mini Heat Pump REBO atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and that ventilation is available.
- Page 20 Original User Manual – A S Mini Heat Pump REBO labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure-relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of all appropriate refrigerants including, when applicable, flammable refrigerants.
- Page 21 Original User Manual – A S Mini Heat Pump REBO Nevertheless, it is possible that leaking refrigerant may accumulate inside the enclosureandflammableatmospherewillbereleasedwhentheenclosureisopened. Ventilated enclosure –Safety of the appliance depends on ventilation of the housing. Switching off the appliance or opening of the enclosure has a significant effect on the safety. Care should be taken to ensure sufficient ventilation before.
- Page 22 Original User Manual – A S Mini Heat Pump REBO Decommissioning ▪ If the safety is affected when the equipment is putted out of service, the refrigerant charge shall be removed before decommissioning. ▪ Ensure sufficient ventilation at the equipment location. ▪...
-
Page 23: Environmentally Friendly Disposal
You can obtain the addresses from your city or local government. You can find out about other return options created by us on our website www.arebos.de. The separate collection of Waste electrical or electronic equipment is intended... -
Page 24: Eu Declaration Of Conformity
Gneisenaustraße 10-11 97074 Würzburg Germany declare in sole responsibility that the following product: Brand Product Name Mini Heat Pump Product Model AR-HE-WP Article Number 4252023110990 has been developed, constructed 2014/30/EU and manufactured in compliance with the requirements of the European Directives: The object of the declaration described above is in conformity with the relevant European Union harmonization legislation.
