Owner's manual
Assembly instructions and operating instructions
ROWVISTA | ROWMOTION

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROWVISTA and is the answer not in the manual?

Questions and answers

Related Manuals for XCAT ROWVISTA

Summary of Contents for XCAT ROWVISTA

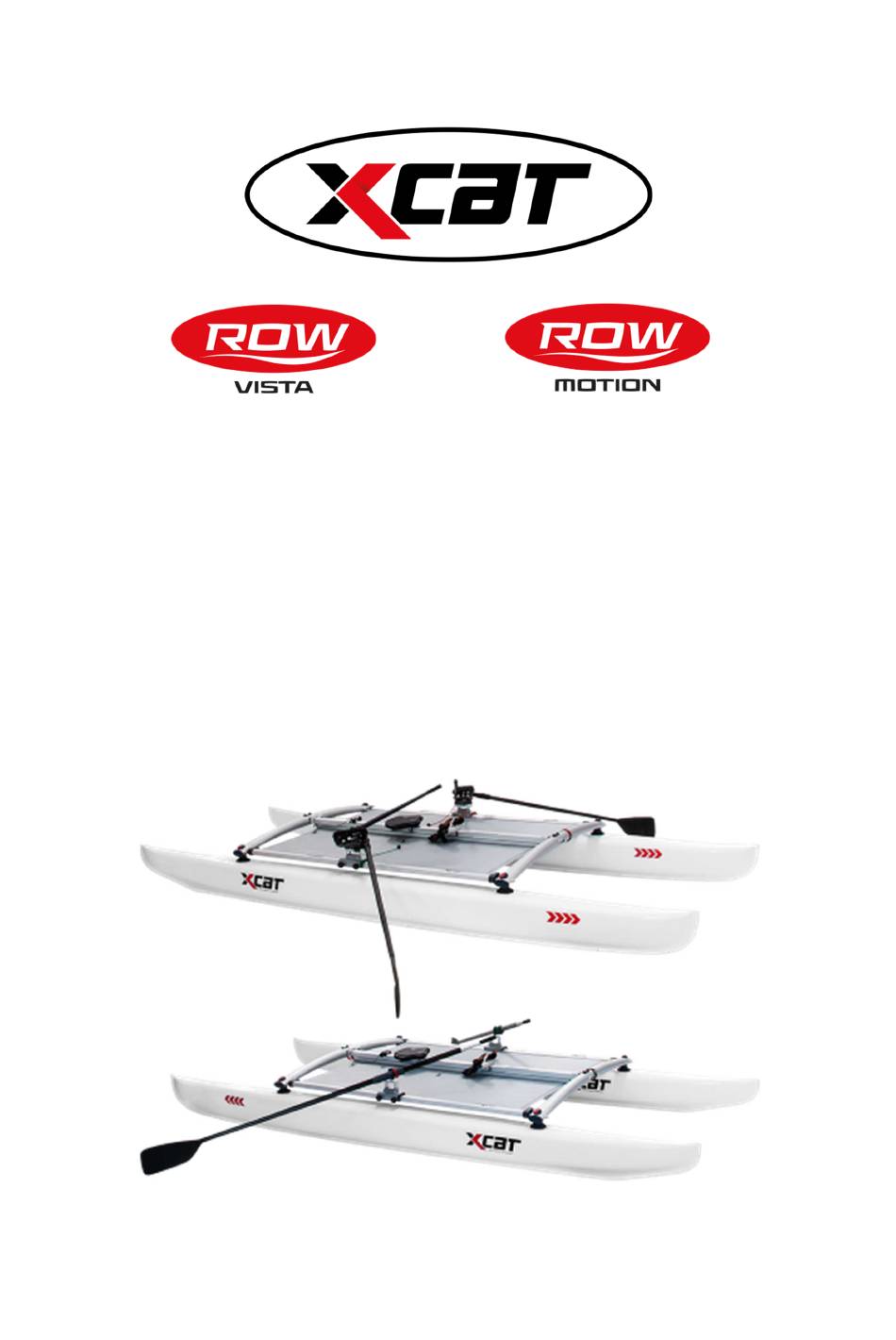

  • Page 1 Owner’s manual Assembly instructions and operating instructions ROWVISTA | ROWMOTION...

  • Page 3: Table Of Contents

    3 XCAT RowMotion ..............24 RowMotion components ........... 25 Assembly and disassembly RowMotion ........26 4 Maintenance ..............32 Blade angle (pitch) of the RowVista® forward rowing sculls ..32 Adjusting the clamping ring of the RowMotion® sculls ....34 Manual RowVista/RowMotion Page 3...

  • Page 4: Introduction And Important Notes

    1 Introduction and important notes This manual is intended to familiarize you with your XCAT model option RowVista and RowMotion and to help you guide your XCAT safely. In addition to the description of the rudder options, it also contains assembly and disassembly of the rudder options and information on safe handling/ operation of the XCAT.
  • Page 5 XCAT. There is a DANGER OF LIFE if the boat capsizes! Observe the traffic regulations: You always participate in water traffic with your XCAT, even if you use it for your recreational pleasure. Water traffic is regulated by ordinances, which differ according to the area of application.

  • Page 6: Important Notes On Transport And Storage

    1.2 Important notes on transport and storage Secure the XCAT during transport, e.g. on the roof of the car, using suitable fastening material, e.g. the XCAT transport kit. Check the tensioning straps regularly and retighten them if necessary.
  • Page 7 (also recommended against dirt and especially bird droppings). Always maintain your XCAT properly and take into account the wear and tear that occurs over time due to frequent use or improper use.

  • Page 8: Environmental Protection

    Just as we expect clean water and a biologically intact environment for our recreational sports, we should strive to keep the environmental impact of operating the XCAT as low as possible. The hull skin of the XCAT is made of HD-PE. A weather-resistant, impact- resistant and dirt-repellent plastic that is easy to clean.

  • Page 9: Instruction Style Guide

    1.5 Further information For more information on the XCAT model options, accessories and numerous videos on setting up, dismantling and operating the XCAT, please visit: www.x-cat.com Manual RowVista/RowMotion Page 9...

  • Page 10: Xcat Rowvista

    Instead, you row in the same direction as you are facing. The innovative mechanism of the RowVista® allows the rudder blade to be turned up and down, just like traditional sculling.

  • Page 11: Rowvista Components

    XCAT RowVista 2.1 RowVista components RowVista consists of: Foot stretcher (1) • Sliding seat (2) • Stopper (3) • 2x RowVista rowlocks (4) • 2x Foldable RowVista forward rowing sculls (5) • Manual RowVista/RowMotion Page 11 Edition: 05/2023...
  • Page 12 XCAT RowVista Bags for RowVista: • Rowing Gear Bag (6) • 2x Bag for RowVista (7) Built-up XCAT with RowVista Sliding seat Stopper Starboard (green) Port (red) Foot stretcher Manual RowVista/RowMotion Page 12 Edition: 05/2023...

  • Page 13: Assembly And Disassembly Of Rowvista

    XCAT RowVista 2.2 Assembly and disassembly of RowVista Assemble clamping rowlocks, seat and footstretcher Hang the clamping rowlocks on the inside of the side beams first … Clamp the clamping rowlocks onto the side beams at the numbering (red clamping rowlock...
  • Page 14 Attach stopper securing line to rear cross beam and clamp stopper to center beam. Attaching the RowVista forward rowing sculls Connect the rudder blade tube with the tube from the RowVista rudder scull, push in the push button and push together completely until the push button engages.
  • Page 15 XCAT RowVista Place the RowVista® forward rowing scull onto the rowlock pin. Note: The scull with the red elements must be on port side and the scull with the green elements must be on starboard side. Note: when placing the oar...
  • Page 16 XCAT RowVista To unlock the folded scull, pull the lock button … … and swing the handle tube inward, … … until the locking hook engages. Manual RowVista/RowMotion Page 16 Edition: 05/2023...
  • Page 17 Push the blade tube locking lever upwards, … … to open the blade tube lock. Removing the RowVista forward rowing sculls Move the handle tube to the rear limit stop (handle tube and blade tube form a 90° angle) …...
  • Page 18 XCAT RowVista Open the locking hook of the handle tube … … and rotate the handle tube until it is parallel to the blade tube. Push in the locking knob on the handle tube. Pull the release line, stay on the pull …...
  • Page 19 The rudder scull can now be removed by pulling it off the pin of the rowlock. Swinging in the RowVista forward rowing sculls on the water Pull the release line, stay on the pull … … and then additionally pull the handle tube, …...
  • Page 20 XCAT RowVista … until the sculls can be swung in. Continue to pull on the handle tube until the rudder blade can be placed on the rear crossbeam. Push down the blade tube locking lever and repeat the steps with the rudder scull on the other side.
  • Page 21 XCAT RowVista Catch and end-pull position with the RowVista® forward rowing system When correctly adjusted, a 30° angle between the scull and the boat should be achieved in the catch position. A stop prevents from further forward swiveling. In this position, the upper body is tilted slightly forward with a straight back, but not resting on the thighs.
  • Page 22 XCAT RowVista Info: There is also a limit stop for the end pull position. When the stop is reached during rowing and the blade is still in the water, the rudder blade acts like a rudder and you feel a slight jerk. So, it is recommended not to pull all the way to the stop and immediately turn up the rudder blade when it comes out of the water.
  • Page 23 XCAT RowVista Dismantle RowVista Removing the RowVista forward rudder sculls (see instructions starting on page 17). Dismantle the clamping rowlocks. Pull up the red retention pin of the footstretcher and slide the footstretcher off the center beam. Slide the sliding seat off the center beam.

  • Page 24: Xcat Rowmotion

    XCAT RowMotion 3 XCAT RowMotion With just a few parts, you can turn your XCAT into a fully-fledged rowing boat, allowing you to pursue your pleasure on the water even when there is no wind. A catamaran has immense stability and therefore a lot of security.

  • Page 25: Rowmotion Components

    XCAT RowMotion 3.1 RowMotion components RowMotion consists of: Foot stretcher (1) • Sliding seat (2) • Stopper (3) • 2x RowMotion rowlocks (4) • additionally sculls are needed: 2x Partable RowMotion sculls (5) • Manual RowVista/RowMotion Page 25 Edition: 05/2023...

  • Page 26: Assembly And Disassembly Rowmotion

    XCAT (see also the following picture). If you are only using the XCAT as a rowboat, you can also mount the center beam the other way around and thus row in the direction of travel of the hulls.
  • Page 27 Slide the foot stretcher onto the center beam. Pull up the red retention pin of the foot stretcher and snap it onto one of the 5 holes on the center beam. Manual RowVista/RowMotion Page 27 Edition: 05/2023...
  • Page 28 Note: The oarlocks should be turned outwards when inserted and the rudder blades should point in the direction of travel. In this way, the forces generated during rowing can be absorbed by the bolt of the rowlock. Manual RowVista/RowMotion Page 28 Edition: 05/2023...
  • Page 29 In the end-pull position, the legs are fully stretched and the view is horizontal. When set correctly, the rowing handles just do not touch the ribs when the upper body is vertical. The back must be kept as straight as possible. Manual RowVista/RowMotion Page 29 Edition: 05/2023...
  • Page 30 5 holes on the center beam. The clamping rowlocks and the stopper must then also be moved or readjusted by the same distance. Manual RowVista/RowMotion Page 30 Edition: 05/2023...
  • Page 31 Dismantle the clamping rowlocks. Pull up the red retention pin of the foot stretcher and slide the foot stretcher off the center beam. Slide the sliding seat off the center beam. Remove the stopper. Manual RowVista/RowMotion Page 31 Edition: 05/2023...

  • Page 32: Maintenance

    Maintenance 4 Maintenance 4.1 Blade angle (pitch) of the RowVista® forward rowing sculls The sculls are correctly adjusted ex works. If, however, the sculls start to oscillate up and down during the stroke, they must be readjusted. Definition of the correct blade angle...
  • Page 33 Check the blade angle again after tightening. Info: This procedure can also be used to replace the handle or blade tube. Simply turn the screw until the tube can be pulled out. Manual RowVista/RowMotion Page 33 Edition: 05/2023...

  • Page 34: Adjusting The Clamping Ring Of The Rowmotion® Sculls

    Maintenance 4.2 Adjusting the clamping ring of the RowMotion® sculls Loosen both screws with a 4 mm Allen key, … … move the clamping ring to the required position and tighten the screws. Manual RowVista/RowMotion Page 34 Edition: 05/2023...
  • Page 35 Notizen Keywords Classic reverse rowing system 24 RowVista 10 Environmental protection 8 assemble 13 Foot stretcher 11, 25 blade angle 32 Forward rowing sculls 11 components 11 Forward rowing system 10 dismantle 23 Further information 9 removing 17 Important notes 4, 9...
  • Page 36 Row&Sail GmbH Gewerbezeile 9 4040 Lichtenberg/Linz Austria Tel.: +43 7239 20275 Fax: +43 7239 20275 30 office@rowandsail.com www.x-cat.com Copyright © Row&Sail GmbH 05/2023...

This manual is also suitable for:

Rowmotion
