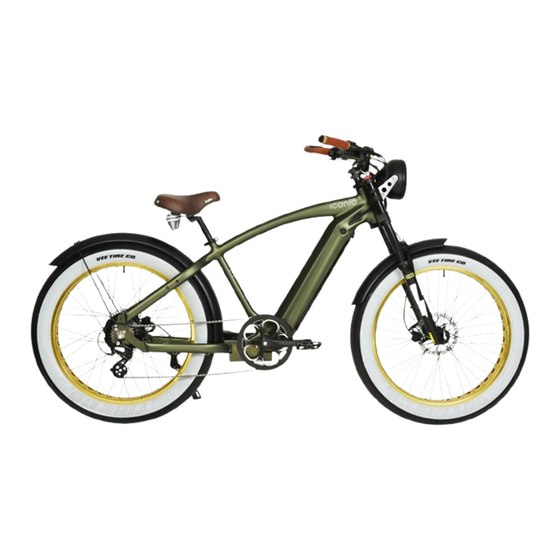

iconic Cruiser

Table of Contents

Need help?

Do you have a question about the Cruiser and is the answer not in the manual?

Questions and answers

Summary of Contents for Iconic Cruiser

Page 1 Owner's Manual iconic Cruiser...
Page 2 Welcome Thank you for purchasing the Iconic Cruiser through www.iconicebikes.com. We take pride in bringing you a quality product that will offer years of enjoyment. Please read and understand this manual fully before assembling and riding your ebike. If you have questions after reading this manual, please contact us at support@iconicebikes.com.
Page 3 A Note for Parents and Guardians As a parent or guardian, you are responsible for the activities and safety of your child. The Iconic Cruiser WARNING is not designed for use by children under the age of 18.
Page 4 All content in this update and the manual is subject to change or withdrawal without notice. Visit www.iconicebikes.com to view and download the latest version. ICONIC Ebikes makes every effort to ensure the accuracy of its documentation and assumes no responsibility or liability if any errors or inaccuracies appear within.
Page 5 Guard against rust, water damage, and corrosion Like any vehicle used outdoors, your ebike needs care to ensure it isn't damaged by the elements. Follow these steps for a long, healthy life for your ebike: Store under shelter and in an upright position; avoid leaving the bike in the rain or exposed to corrosive substances such as water, salt, or de-icing substances.
Page 6 Using a damaged battery or charger can create additional bike damage or a fire hazard. Stop using your battery and charger and contact ICONIC EBikes immediately if any of the following occur: (1) Your charger's flexible power cord or output cable or any of the electrical cables on your bike is frayed, has broken...
Page 7 Pedal assist uses a cadence sensor built into the drive train of the bike. The sensor detects when the rider revolves the pedal and signals the electric motor to provide the level of pedal assistance that has been selected. The Iconic Cruiser comes with pedal assist modes 0-5.
Page 8 Do not touch the brake rotor Touching the brake rotor, which has sharp edges and can get very hot while you're riding, can cause serious injury, slicing damage, or burns. The brake rotor heats up from normal friction when the brake pads press against the brake rotor to slow or stop the bike.
Page 9: Table Of Contents
TABLE OF CONTENTS Using This Manual General Information Assembly Instructions Battery Charging Operation Maintenance Troubleshooting Warnings and Safety Limited Warranty Link to Assembly Video and Online Resources...
Page 10: Using This Manual
Assembly and first adjustment of your ebike from ICONIC EBikes requires special tools and skills and it is recommended that this should be done by a certified, reputable bike mechanic if possible.
Page 11: General Information
Assembly and Fit Correct assembly and fit are essential elements of ensuring your bicycling safety, performance, and comfort. Even if you have the experience, skill, and tools to complete these essential steps before your first ride, ICONIC EBikes recommends having a certified reputable bike mechanic check your work.
Page 12 The replacement of original components or installation of third-party accessories or accessories from lCONIC EBike not explicitly recommended for your bike model is at your own risk. Using aftermarket accessories or components that have not been tested by lCONIC EBikes for safety and compatibility may void your warranty, create an unsafe riding condition, or result in serious injury or death.
Page 13 Tires and Wheels Your wheels should always spin straight and must be repaired or replaced if they wobble side to side or up and down when spinning. If your wheels become untrue or spokes loosen, which can happen with normal use, we recommend that a certified, reputable bike mechanic performs all wheel tuning and truing operations on your bike.
Page 14 Ensure the battery is adequately charged and operating properly. Ensure the battery charger is unplugged from the outlet, battery, then stored in a safe location before you ride. The battery MUST be locked onto the frame battery mount properly before use. Do not operate the electrical system if the battery is removed. Assembled Iconic Cruiser...
Page 15: Assembly Instructions
Unpack the bike. Open the bike box and remove the small box inside. With the help of another person capable of safely lifting a heavy object, remove the Iconic Cruiser from the bike box. Carefully remove the packaging material protecting the bike frame and components.
Page 16 Step 2 Install the front fender and front wheel. scan the QR code to view the installation video ) （ Remove the fender bolts from the front fork, install the fender with the short side of the fender forward don't tighten the fender completely Locate the quick release lever, found inside （...
Page 17 Never touch the brake rotor, especially when the wheel and/or bike is in motion, or serious injury could occur. Hand oils can cause squeaking and decrease brake performance; do not touch the brake rotor while CAUTION inspecting, opening or closing the quick release lever. Step 3 Install the handlebar onto stem.
Page 18 An improperly secured front wheel and/or handlebar stem can cause loss of control, accidents, serious injury, or death. Check that the front wheel and handlebar stem are properly secured to the bike during WARNING assembly and before each ride. Step 4 Perform a handlebar twist test to ensure the handlebar stem is secure Brace the front wheel.
Page 19 If you are not sure you have the experience, skills, and tools to correctly perform all steps to properly secure and verify the security of the handlebar, front wheel, and handlebar stem you MUST consult a WARNING certified, reputable bike mechanic to check your work and/or secure those components to the bike properly.
Page 20 Step 7 Install the pedals. Locate the pedal with R for right and L for left. The right pedal goes on the crank on the right side of the bike. The right pedal (1) is threaded so that it is tightened by turning clockwise. Identifying mark Carefully thread the right pedal onto the crank on the right side of the bike slowly and by hand.
Page 21 Step 8 Always check that the battery is locked to the frame of the Iconic Cruiser The key is to used to lock and release the integrated battery before riding. Operate the electrical system when the battery has been adequately charged and the battery is secured to the mounting receptacle on the frame.
Page 22 Brakes Disc Brake Rotor to Hub Seatpost Area Seat Angle Adjustment Bolt Rear Dropout Area Rear Axle Nuts Rear Dropout Area Rear Torque Arm Bolt Rear Dropout Area Derailleur Bash Guard Mounting Bolts Rear Dropout Area Derailleur Hanger Mounting Bolt Rear Dropout Area Derailleur Mounting Bolt Rear Dropout Area...
Page 23 If you have any questions regarding the assembly of your bike, contact Iconic eBikes. If you are not able to ensure all the assembly steps in the assembly video are performed properly, or you are unable to view the...
Page 24 Adjusting the Seat Height For most users, the seat height should be set by placing the ball of their foot on the pedal when the crank is at its lowest point. In this orientation their leg should almost be fully extended, with a slight bend at the knee. The correct seat height should not allow leg strain from over extension and the hips should not rock from side to side when pedaling.
Page 25 A bike fitting professional, such as a certified, reputable bike mechanic who specializes in bike fit, should be consulted to ensure you have a good fit. NOTICE: If you have any questions regarding the proper fit of your bike please consult a certified, reputable local bike mechanic for assistance fitting the bike to a rider or contact Iconic eBikes.
Page 26: Battery Charging
Battery Charging Charging Procedure Follow these steps for charging your ebike battery: Ensure the battery is off by powering off the bike. Remove the rubber cover on the charging port (3, below) on the opposite side of the battery from the key switch. Plug the charger into the batter/s charging port.
Page 27 Battery Charging Information Check the charger, charger cables, and battery for damage before beginning each charge. Always charge in a safe area that is cool*, dry, indoors, away from direct sunlight, dirt, or debris, in a clear area away from potential to trip on the charging cords, or for damage to occur to the bike, battery, or charging equipment while parked and/or charging.
Page 28 Remove the charger from the battery within one hour of the green light indicating a complete charge. The charger is designed to automatically stop charging when the battery is full, but unnecessary wear of the charging components could occur if the charger is left attached to the battery and a power source for longer than 12 hours. Detach the charger within one hour, or as soon as possible, once the green light indicates a complete charge to avoid unnecessary wear of charging components Do not leave a charging battery unattended.
Page 29 When Installing the Battery onto the Bike Ensure the battery is off and the key is out of the key port before sliding the battery onto the frame mount receptacle. Do not force the battery onto the receptacle; slowly align and gently push the battery down into the receptacle. Ensure the battery has been properly secured to the bike with battery latch before each use by carefully pulling upward on the battery with both hands to test the security of the attachment of the battery to the mount once locked.
Page 30 Do not charge the battery with any chargers other than the one originally supplied from Iconic eBikes or a charger designed for use with your specific bike purchased directly from Iconic eBikes.
Page 31 Balancing the Battery When you first receive your bike and for the first three times you charge your battery, from Iconic Ebikes, follow the procedure outlined below to ensure the cells that power the battery are balanced and operating as efficiently as possible.
Page 32 Do not perform battery balancing more than once per month Long-Term Battery Storage If storing your bike from Iconic ebikes for longer than two weeks at a time, follow the instructions below to maintain the health and longevity of your battery.
Page 33 Please follow the above instructions for storing your bike and battery from Iconic ebikes . Failure to follow proper battery storage procedures can result in a non-functional battery. Replacement will not be covered under warranty. If the battery is physically damaged, non-functional, performing abnormally, or was dropped or involved in a crash, with or without obvious signs of damage, please discontinue use and charging and contact Iconic Ebikes immediately.
Page 34: Operation
Operation NOTICE: Do not perform any of the steps in the Operation section of this manual until you have read this entire manual, since there are important details related to safety in the following sections. Read and understand all sections of this entire manual before operating the bike for the first time. There are important safety warnings throughout the whole manual that must be followed to prevent dangerous situations, accidents, damage to the bike, damage to property, injury, or death.
Page 35 Battery Key Positions Familiarize yourself with the key port and key positions before riding the bike. The photo below shows the key port aligned in key position 1, in line with the small open circle icon. In key position 1, the battery is in the "on" position, with the battery locked to the frame, and the key removed so the bike is ready to ride.
Page 36 Location on Handle Component Location on Handlebar Component Turning signal light Throttle LCD Display Remote Shifter LCD Display Front light highbeam Gear Indicator...
Page 37 Display Operation Switching the Ebike System On/ Off Press the power button to switch on the Ebike system. To hold the power button for 2 s, the Ebike system will be switched off. The Ebike system no longer uses the battery power.
Page 38 Assist Level Selection Briefly press "+" or "-" button to switch between assistance levels to change the motor assist level. The default assistance level ranges from level “0” to level “5”. Battery SOC Indicator The five battery bars represent the capacity of Assist Level Interface the battery.
Page 39 Driving Range The range of your bike from Iconic ebikes is the distance the bike will travel on a single full charge of the onboard battery. The range values in this manual are estimates based on expected usage characteristics. Some of the factors that affect range include changes in elevation, speed, pay load, acceleration, number of starts and stops, ambient air temperatures, tire pressure, terrain, and use of throttle.
Page 40 MAXIMUM PAYLOAD CAPACITY FOR Iconic Cruiser The total maximum weight limit, or payload capacity, of the Iconic Cruiser (375 lb) includes the weight of the rider as well as clothing, safety gear, cargo, accessories, passengers, etc. The Iconic Cruiser is compatible with the optional rear rack and that are not included in the base price of the bike.
Page 41 The Iconic cruiser is not built for passengers and it is not allowed at any time. Serious injury or death can occur if a passenger impacts the user*s ability to safely operate the ebike.
Page 42 Notice: The following bulleted list provides important tips for the safe operation of the ebike when used for carrying cargo. Cargo should be loaded as low as possible to lower the center of gravity and improve stability, but cargo should not interfere with any moving components or the ground.
Page 43 Do not park, store, or transport your bike from Iconic ebikes on a rack not designed for the bike's size and weight, Use a rack compatible with the width of tires used on your bike. Some racks may not accommodate all tire widths. When carrying your bike on a rack for transport, unlock the battery, remove the key, and then remove the battery.
Page 44: Maintenance
Basic Bike Care To ensure safe riding conditions you must properly maintain your bike from Iconic ebikes. Follow these basic guidelines and see a certified, reputable bike mechanic at regular intervals to ensure your bike is safe for use and fun to ride. See the Pre-Ride Safety Checklist and Recommended Service Intervals sections in this manual for more detailed information.
Page 45 Recommended Service Intervals Regular inspection and maintenance are key to ensure Iconic ebikes function as intended, and to reduce wear and tear on their systems. Recommended service intervals are meant to be used as guidelines. Real world wear and tear, and the need for service, will vary with conditions of use.
Page 46 Interval Inspect Service Replace Check brake pad alignment, brake Clean and lubricate cable tension. drivetrain. Check bike is shifting properly, Check crankset and proper derailleur cable tension. pedal torque. Replace brake and shift Check chain stretch. Monthly, 250- 750 mi Clean brake and shift cables if necessary.
Page 47 Pre-Ride Safety Checklist Notice: Before every ride, and after every 25-45 miles (40-72 km), we advise following the pre-ride safety checklist. Safety Check Basic Steps Ensure front and rear brakes work properly. Check brake pads for wear and ensure they are not overworn. Ensure brake pads are correctly positioned in relation to the rims.
Page 48 Ensure the chain is clean, oiled, and runs smoothly. Chain Extra care is required in wet, salty/otherwise corrosive, or dusty conditions Ensure all bearings are lubricated, run freely, and display no excess movement, grinding, or rattling. Check Bearings headset, wheel bearings, pedal bearings, and bottom bracket bearings Cranks and Pedals Ensure pedals are securely tightened to the cranks.
Page 49 Always have a certified, reputable bike mechanic perform a tune-up on your Iconic Cruiser after your initial break-in period of 50-100 mi (80-160 km) (depending on riding conditions such as total weight, riding characteristics, and terrain). Regular inspections and tune-ups are particularly important for...
Page 50 Tire Inflation and Replacement The Iconic cruiser uses 26inch x 4.0 rubber tires with inner tubes. The tires are designed for durability and safety for regular cycling activities and to be checked before each use for proper inflation and condition. Proper inflation, care, and timely replacement will help to ensure that your bike's operational characteristics will be maintained, and unsafe conditions avoided.
Page 51: Troubleshooting
Troubleshooting Symptoms Possible Causes Most Common Solutions Insufficient battery power Charge the battery Faulty connections Clean and repair connectors The bike does not work Battery not fully seated in tray Install battery correctly Improper turn on sequence Turn on bike with proper sequence Insufficient battery power Charge or replace battery Irregular acceleration...
Page 52 Symptoms Possible Causes Most Common Solutions Charger not well connected Adjust the connections Charger damaged Replace The battery will not charge Battery damaged Replace Wiring damaged Repair or replace Blown charge fuse Replace charge fuse Wheel or motor makes Loose or damaged wheel spokes or rim Tighten, repair, or replace strange noises Loose or damaged motor wiring...
Page 53: Warnings And Safety
General Operating Rules Notice: Pay special attention to all the general operating rules below before operating your bike from Iconic EBikes. When riding, obey the same road laws as all other road vehicles as applicable by law in your area.
Page 54 Do not use this product with standard bike trailers, stands, vehicle racks, or accessories that Iconic ebikes has not tested for safety and compatibility and have verified as safe and compatible with the bike. Contact Iconic ebikes to check if your equipment will work with the bike.
Page 55 Any aftermarket changes to your bike from Iconic ebikes not expressly approved by Iconic ebikes could void the warranty and create an unsafe riding experience.
Page 56 Helmets It is strongly advised that a rider always wear a properly fitting and approved bicycle safety helmet when riding. Once safely dismounted from the bike, a helmet should be removed. Bicycle helmets should only and always be used for bicycle riding. When riding a bike, always wear a properly fitted helmet that covers the forehead.
Page 57 A Note for Parents and Guardians As a parent or guardian, you are responsible for the activities and safety of your child. The Iconic Cruiser is not designed for use by children under the age of 18.
Page 58 This electric bike is not meant for use in puddles, heavy rain, or streams. Never immerse or submerge this product in water or liquid as the electrical system may be damaged. In wet weather you need to take extra care when operating this bike. Decrease riding speed to help you control the bike in slippery conditions.
Page 59: Limited Warranty
Iconic EBikes reserves the right to determine if the product has been operated in accordance with the products intended use and whether user error and or neglect is the cause for the product damage or failure. Iconic Ebikes will require video and photographic submissions to review each warranty claim.
Page 60 COVERED PRODUCTS Iconic will replace any component that is deemed to be defective or damaged (without including damages caused during shipping) without user error. The warranty covers the listed products and follows the terms below Warranty Inclusions (Main Components) Controller...
Page 61 Warranty Exclusions The warranty applies only to customers purchasing in the contiguous United States. No other party other than Iconic Ebikes may change the terms. This WARRANTY DOES NOT COVER THE FOLLOWING: Normal wear and tear from use or exposure to the elements.
Page 62 How To Handle Warranty Claims Iconic Ebikes will cover labor and parts within the 30-day period after purchase. Our credit for labor is based on a standard fee schedule for bike repairs and could be higher or lower than the cost at your local bike shop. You must wait for us to ship warrantied component rather than replacing on your own.
Page 63 Shipping Claim Iconic Ebikes is committed to ensuring that your package arrives in good condition. In the unlikely event that your package is damaged during delivery, rest assured that it’s insured. A claim may be filed with the shipping company and we will work together to resolve damaged goods on arrival.
Page 64: Link To Assembly Video And Online Resources
Link to Assembly Video and Online Resources Assembly Video Online Resource For more information, please visit the Iconic EBikes website www.iconicebikes.com Please scan QR code...
Page 65 If you have questions, please: Access Contact us directly by Iconic Bikes Help Center email to support@iconicebikes.com www.iconicebikes.com...
