Foxfury Lighting Solutions NOMAD 600-200-400 Quick Start Manual

Now, n32 & n56 battery replacement, for p/n 200-400-100, 200-400-102, 200-4n32 & 200-4p56
Hide thumbs
1
2
3
4

Advertisement

Table of Contents

QUICK START GUIDE
NOMAD

BATTERY REPLACEMENT

P/N 600-200-400
Nomad
Replacement Battery is packaged in a black Life Light casing for safe
®
air transport. Once you receive the Nomad
Battery Pack from the case for storage if Battery is not replaced right away .

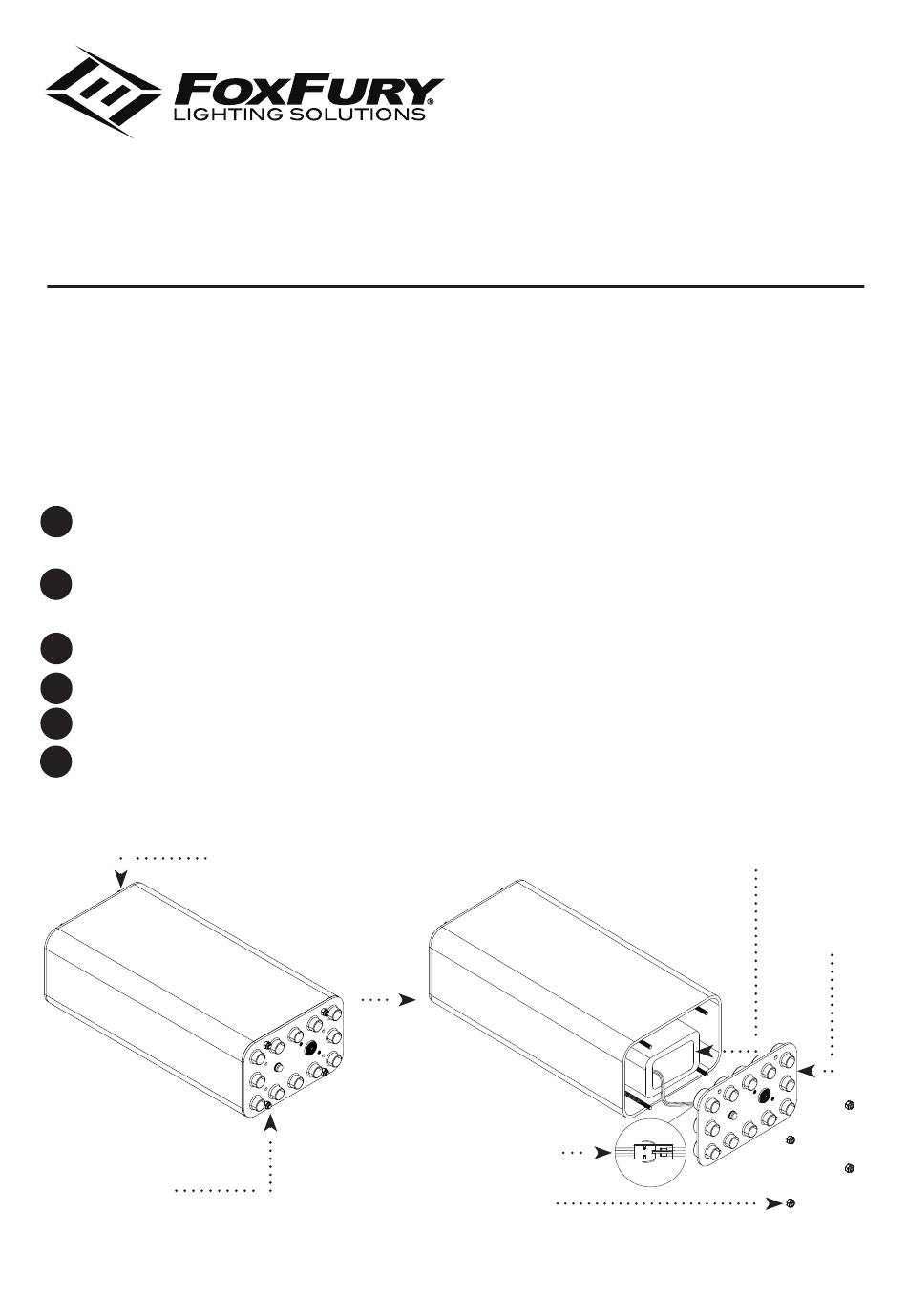

HOW TO REMOVE THE NOMAD BATTERY TUBES FROM CASE

1.
On the non-swich side, hold the head of a Hex Bolt using pliers or a
1
wrench.
2.
Simultaneously , unscrew the Hex Nut until it comes loose, using a 5.5 mm
2
socket or wrench.
24
23
22
3.
Repeat step 1 and 2 three more times to remove the remaining Hex Nuts.
3
4.
Remove the black cover.
4
5.
Detach the Battery from the case by unclipping the Connector.
5
6.
Remove the Battery Pack.
6
HEX NUT
(4 EACH)
NOW, N32 & N56
®
(FOR P/N 200-400-100, 200-400-102, 200-4N32 & 200-4P56)
21
20
19
HEX BOL T
(4 EACH)
Replacement Battery , remove the
®
18
17
16
CONNECTOR
HEX NUT
(4 EACH)
15
14
13
BATTERY PACK
(1 EACH)
12
11
10
COVER
1
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOMAD 600-200-400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Foxfury Lighting Solutions NOMAD 600-200-400

  • Page 1 QUICK START GUIDE NOMAD NOW, N32 & N56 ® BATTERY REPLACEMENT P/N 600-200-400 (FOR P/N 200-400-100, 200-400-102, 200-4N32 & 200-4P56) Nomad Replacement Battery is packaged in a black Life Light casing for safe ® air transport. Once you receive the Nomad Replacement Battery , remove the ®...
  • Page 2 REPLACING THE NOMAD BATTERY PACK ® FOR NOMAD NOW, N32, AND N56 APPROXIMATEL Y 4 MINS ® CONNECTOR Make sure the Nomad is turned OFF before starting. ® Begin with the back of the Nomad facing you. Locate the eight (8) screws on ®...
  • Page 3 WARRANTY AND OTHER INFORMATION LIMITED LIFETIME repair without authorization from WARRANTY Foxfury and/or alteration/removal of the serial number). To expedite FoxFury , LLC (“FoxFury”) warrants warranty concerns, we encourage this product to be free from defects the end user to register their FoxFury in material for a lifetime of use except Product at www.foxfury .com/pages/...
  • Page 4 CALIFORNIA PROPOSITION 65 This product can expose you to chemicals including Lead and DEHP , which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www. P65Warnings.ca.gov. 6/2023...
