socomec DMS 95/2 Use - Maintenance And Spare Parts

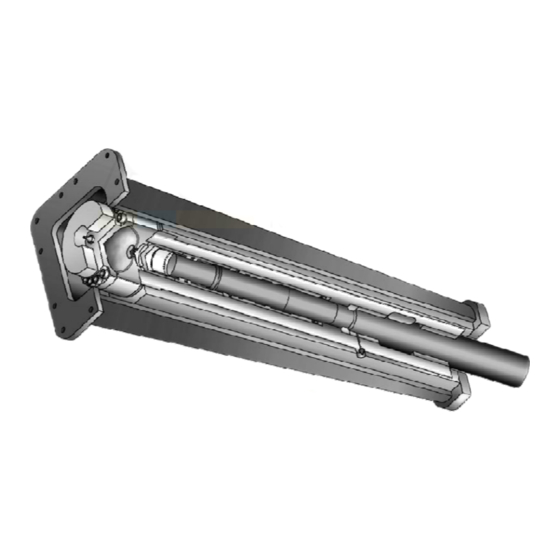

Hydraulic monoblock breaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

CATALOGUE
USE - MAINTENANCE
AND SPARE PARTS
Hydraulic Monoblock Breaker
DMS 95/2
Before carrying out any operation with or on the machine, you must
read
carefully and understand each individual instruction written in this
manual
Ne derland B.V.
43014 Medesano (Parma) Italia - Strada Ferrari, 38
Phone +39 0525 - 420929 a.a. - Fax +39 0525 - 420375
http://www.socomecspa.com
E-mail: info@socomecspa.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMS 95/2 and is the answer not in the manual?

Questions and answers

Related Manuals for socomec DMS 95/2

Summary of Contents for socomec DMS 95/2

  • Page 1 CATALOGUE USE - MAINTENANCE AND SPARE PARTS Hydraulic Monoblock Breaker DMS 95/2 Before carrying out any operation with or on the machine, you must read carefully and understand each individual instruction written in this manual Ne derland B.V. 43014 Medesano (Parma) Italia - Strada Ferrari, 38 Phone +39 0525 - 420929 a.a.
  • Page 2 43014 Medesano (PR) - Italy Phone +39-0525-420929 Fax +39-0525-420375 Socomec S.p.A. is not responsible for any inconvenience, breaking, accident and so on, due to lack of knowledge or to the non-observance of the information given by this manual service. The same is valid for all those modifications, changes and/or installations of attachments not...

  • Page 3: Table Of Contents

    Page of 32 GENERAL WARNINGS Istruzioni generali TECHNICAL FEATURES Caratteristiche tecniche TRANSPORT AND INSTALLATION Trasporto e installazione USE OF THE HAMMER Uso del martello CLEANING, MAINTENANCE AND CHECKS Pulizia Manutenzione e Controlli SPARE PARTS Parti di ricambio COMPLETE HAMMER EXPLODED VIEW Esploso martello completo ACCUMULATOR AND INTERNAL GROUP EXPLODED VIEW Ne d e r la nd B.

  • Page 4: General Warnings

    GENERAL WARNINGS Page of 32 1 General warnings All actions representing a situation of potential danger for the operators are pointed out by the sign reproduced aside. All actions requiring a special attention are pointed out by the sign reproduced aside. During the work, non-authorized people must not be allowed to stay in an area, which 20 meters operating range is less than...
  • Page 5 GENERAL WARNINGS Page of 32 OPERATOR The operator is to be a person that is suited to the work and physically and psychologically able to withstand the demands connected with operating the equipment for its intended use. The operator must not allow anyone to approach the machine while it is working, and must not allow the use of external personnel.
  • Page 6 GENERAL WARNINGS Page of 32 PERSONAL SAFETY EQUIPMENT The operator involved in working with the equipment or in the surroundings of the equipment must always be equipped with adequate Personal Safety Equipment, that is: - Hardhat - Leather working gloves - Safety shoes - Earmuffs (when necessary).

  • Page 7: Technical Features

    The manufacture is in accordance with the European Directive 2006/42/CE and with the Noise Directive 2000/14/CE. Socomec S.p.A. warrants that its machines are manufactured according to the regulation quoted above and places the marking “CE” on them. Ne d e r la nd B. V.
  • Page 8 TECHNICAL FEATURES Page of 32 Technical features DMS 95/2 Unit of Technical features Value measurement Energy per stroke Maximum frequency s/min 1200 Maximum oil flow l/min 27 - 40 Maximum working pressure Maximum exhaust back pressure 20 - 30 Accumulator charging pressure...
  • Page 9 It’s necessary to unscrew the long screws in order to remove the accumulator from the monoblock. You will find here below the accumulator details with the long screws to be unscrewed highlighted. DMS 95/2 ACCUMULATOR SCREWS V.L = Long screws Ne d e r la nd B. V. RUBBER HOSES CONNECTION...
  • Page 10 TECHNICAL FEATURES Page of 32 2.4 Optimal environmental working conditions: Unit of Value Denomination measurement (between) Temperature ° C [ -5 ; +45 ] Humidity [ 40 ; 90 ] 2.5 Overall dimensions Ne d e r la nd B. V. Size Dimension 1170...
  • Page 11 TECHNICAL FEATURES Page of 32 Hydraulic connection (hoses connection) – DMS 95/2 2.6.1 Hammer hoses connection Connect pressure line hose to the entry side Connect return line hose to the exit side Ne d e r la nd B. V.

  • Page 12: Transport And Installation

    TRANSPORT AND INSTALLATION Page of 32 Transportation and installation The personnel in charge of transportation and installation of the equipment must be acquainted with the following instructions. Pay careful attention to the weight of the hammer. Transport Check in the technical specifications, the total weight of the hammer, that is together with the adpating plate and the tool already Ne d e r la nd B.
  • Page 13 TRANSPORT AND INSTALLATION Page of 32 3.2 Coupling on and Uncoupling from the excavator 3.2.1 Coupling 1) Place the hammer horizontally with its axe parallel to the excavator boom on the ground in a stable position. 2) Remove the clamps holding the bucket and take the bucket away. Insert the boom end in the middle of the adapting plate.

  • Page 14: Use Of The Hammer

    USE OF THE HAMMER Page of 32 Use of the hammer The operator must follow the manufacturer’s instructions. It is forbidden to use the hammer without the retainer pin for tool. Use only tools authorised by the manufacturer. The hammer must be in an open area so that, when it begins to hit, the tool is with no doubt pressed against the surface of the material.
  • Page 15 USE OF THE HAMMER Page of 32 Moreover, while hammer working, we advice to shorten the distance between excavator hammer as much as possible and to remove the cylinder piston rods only partially (C-D strokes never completely out). Make sure that the tool does not slip from the surface (see picture).
  • Page 16 USE OF THE HAMMER Page of 32 4.2 Operations to be avoided Avoid that the hammer delivers blank firings. They cause early weariness and chippings to the retainer pin for tool and to the tool itself, which scraps can provoke serious damages. Moreover, due to these blank firings, the tool will break very soon.
  • Page 17 USE OF THE HAMMER Page of 32 4.3 Replacement of the tool Before replacing the tool, it is necessary to wear gloves because it overheats during the use. Place the hammer vertically, touching the ground and lift it up from the ground of a few centimetres so that the boom of the excavator supports the weight of the hammer, but with the tool is still...
  • Page 18 USE OF THE HAMMER Page of 32 4.4 Types of tools, use and duration Tools are different based on the different shapes of their terminal parts. There are various types of tools capable of meeting the requirements of every kind of application. Flat terminal tool (ref.

  • Page 19: Cleaning, Maintenance And Checks

    - Dripping point = 200-220 C° - Temperature of use until t=170-180 C° It is recommended to use possibly only Socomec grease for a longer life of the parts. Other checks to be made on the hammer - Make sure that there are no oil leakages along the tool sank.
  • Page 20 CLEANING, MAINTENANCE AND CHECKS Page of 32 5.2 Weekly maintenance a) Take down the tool in order to determinate possible chippings or cracks in the bush and on the surfaces of the pin for tool. These marks are proof of insufficient lubrication, use of unsuitable oil or improper use of the hammer.
  • Page 21 The monoblock is designed to remain fixed to the outer metal case for the full life of the hammer. Socomec S.p.A. informs that it's possible take the monobloc out of the case only for the replacement of the polyurethane shells.
  • Page 22 CLEANING, MAINTENANCE AND CHECKS Page of 32 Solution Problem Cause (the hammer must be taken to an authorized workshop) The hammer stops after Dirt entered into Take down the hammer, clean and few blows after being re- hammer through eventually change the damaged installed.
  • Page 23 Socomec SpA, at its factory in Medesano (Parma-Italy), can solve any problem concerning the use, maintenance and repair of the hammer. Socomec SpA can supply the name of the nearest authorized workshop for any type of assistance. It is absolutely necessary to address to a specialized technical service centre.
  • Page 24 CLEANING, MAINTENANCE AND CHECKS Page of 32 5.5 Warranty The producer assures the customer a warrantee term which is foreseen in the contract of purchase. The customer will lose his rights on warranty, if he does not comply with the terms of payment (even only one), or if the breakdowns are caused by the customer himself, his employees or others, through: an improper installation (if not made by the manufacturer), inexperience in handling the machine, improper use, bad maintenance, modifications,...

  • Page 25: Spare Parts

    SPARE PARTS Page of 32 Request of spare parts For a correct and prompt answer to the various requests of parts, it is absolutely necessary that they are completed with the following details: a) Exact name and reference number of the parts required (these specifications can be taken in the list written in the following pages);...

  • Page 26: Complete Hammer Exploded View

    COMPLETE HAMMER EXPLODED VIEW Page of 32 Ne d e r la nd B. V.
  • Page 27 COMPLETE HAMMER EXPLODED VIEW Page of 32 Spare parts (Refer to the exploded views of the previous pages) Quantity Code Description ADAPTING PLATE A.00030220 SCREW A.00330085 Ne d e r la nd B. V.
  • Page 28 ACCUMULATOR AND INTERNAL GROUP EXPLODED VIEW Page of 32 Ne d e r la nd B. V.
  • Page 29 ACCUMULATOR AND INTERNAL GROUP EXPLODED VIEW Page of 32 Spare parts (Refer to the exploded views of the previous pages) Quantity Code Description A.00010366 O-RING A.00010369 SEAL A.00030590 SCREW A.00030626 SCREW A.00053464 NITROGEN CHARGING VALVE B.0094011 ACCUMULATOR BASE B.0094030 DIAPHRAGM B.0094041 UPPER BUFFER B.0154020...

  • Page 30: Hammer Exploded View

    HAMMER EXPLODED VIEW Page of 32 Ne d e r la nd B. V.
  • Page 31 HAMMER EXPLODED VIEW Page of 32 Spare parts (Refer to the exploded views of the previous pages) Quantity Code Description A.00010409 BONDED WASHER A.00010430 BONDED WASHER A.00010431 BONDED WASHER A.00030624 PLUG A.00030627 SPRING A.00030628 ALLEN PLUG A.00053236 UNIDIRECTIONAL VALVE A.00331040 PLUG A.00331200 PLUG...

  • Page 32: Request Of Spare Parts

    Fotocopiare la presente, compilare e spedire per fax a SOCOMEC n. 0525-420375 FORM FOR THE REQUEST OF SPARE PARTS Photocopy this form, fill in and send it by fax to SOCOMEC no. +39 0525-420375 FORMULAIRE DEMANDE PIECES DE RECHANGE Photocopier la présente fiche, remplir et envoyer par fax à SOCOMEC n. +39 0525-420375 FICHA PEDIDO REPUESTOS Fotocopiar esta ficha, rellenarla y enviarla por fax a SOCOMEC n.
