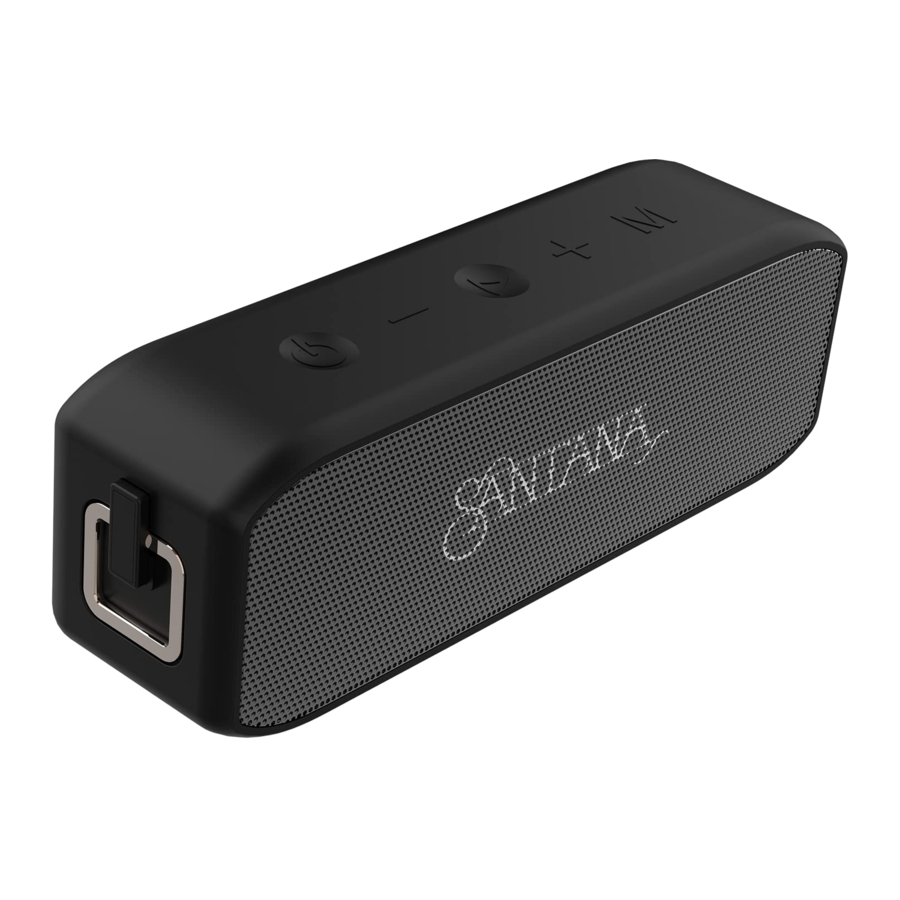

Carlos Santana SANTANA SAMBA - 20 Watt Waterproof Speaker Manual

OVERVIEW

STEREO PAIR FUNCTION

If you've purchased 2 Samba speakers, you can play music from a stereo pair. Follow these instructions to take advantage of this feature.

1. Disconnect Samba from all Bluetooth devices.
2. Power on both speakers.
3. Hold the MODE button for 2 seconds on one speaker, and release when the voice prompt says "Speaker Searching".
4. The speakers will connect to each other indicated by the voice promt "Speakers Connected". The Pairing LED on one speaker will flash blue; it will be steady blue on the other speaker.
5. Turn on the Bluetooth device, and select Santana Samba.
6. Once connected, both Pairing LEDs will be steady blue.

OPERATION

Turning ON/OFF

Power on: Press the Power ON/OFF button for 1 second until the white Power LED illuminates.
Power off: Press the Power ON/OFF button until the white Power LED turns off.

Connecting with Bluetooth

To play audio from a Bluetooth device, you need to pair the device with your speaker.

1. Power on the speaker. The blue Pairing LED blinks, indicating the speaker is ready to connect with your Bluetooth device.
2. Turn on Bluetooth mode on your device.
3. Select "Santana Samba" to initiate pairing, and the speaker will automatically connect with your Bluetooth device, indicated by the steady blue Pairing LED. Some devices ask you to input the PIN "0000" as the password.

Note: Generally, there is a 3 minute maximum to pair the speaker with your Bluetooth device, otherwise retry steps 1 to 3 to pair again.

TF Card Mode

1. Insert a TF Card into the TF Card slot on the speaker.
2. Press the MODE button (M) to switch between Bluetooth mode and Card mode. A voice prompt will indicate the current mode.

AUX Mode

1. Insert a 3.5mm audio cable into the Aux Input on the speaker.
2. Press the MODE button (M) to switch between Bluetooth mode and AUX mode. A voice prompt will indicate the current mode.

USING THE SPEAKER

Answering a Call
When a call is incoming, you will hear a ring tone. Press the MFB button once to accept the call, or answer the call via your mobile phone.
Rejecting a Call
Hold the MFB button to reject the incoming call.
Ending a Call
Press the MFB button once to end the call, or hang up via your mobile phone.
Music Play / Pause
Press the MFB button once to play/pause music.
Volume Adjustment / Skip Track
Short press the Vol(+) or Vol(-) to adjust volume.
Long press the Vol(+) to select next track.
Long press the Vol(-) to select previous track.
Voice Assistant
Hold the MFB button for 2 seconds to activate voice assistant.

Activate your warranty at SantanaSounds.com

CHARGING THE SAMBA

1. Before charging, make sure the speaker has been switched off.
2. Plug the USB cable into the charging port of speaker; plug the other side of the USB cable into a USB charger or other charging device. Charging will start, and the red light remains illuminated on the speaker.
3. A full charge takes approximately 2 hours, and then the red light will turn blue when fully charged.

You must use the original cable to charge the Bluetooth speaker, otherwise it may damage the speaker. Proper charger voltage must be 5V with a current rated at 115mA.
This speaker uses a non-detachable built-in rechargeable battery. In order to prevent damage to the speaker, please do not remove the battery.
Note: The voice prompt "Low Battery" will notify you when the speaker need to be recharged.

SPECIFICATIONS

Product Name: Samba
Product Type: Speaker
Wireless Range: 33ft
Standby Time: 180 hours
Playtime: 20 hours
Charging Time: 2 hours
Sensitivity(SPL): 80±3dB
Impedance: 4Ω
Rated Input Power: 10mW
Distortion: ≤1%
