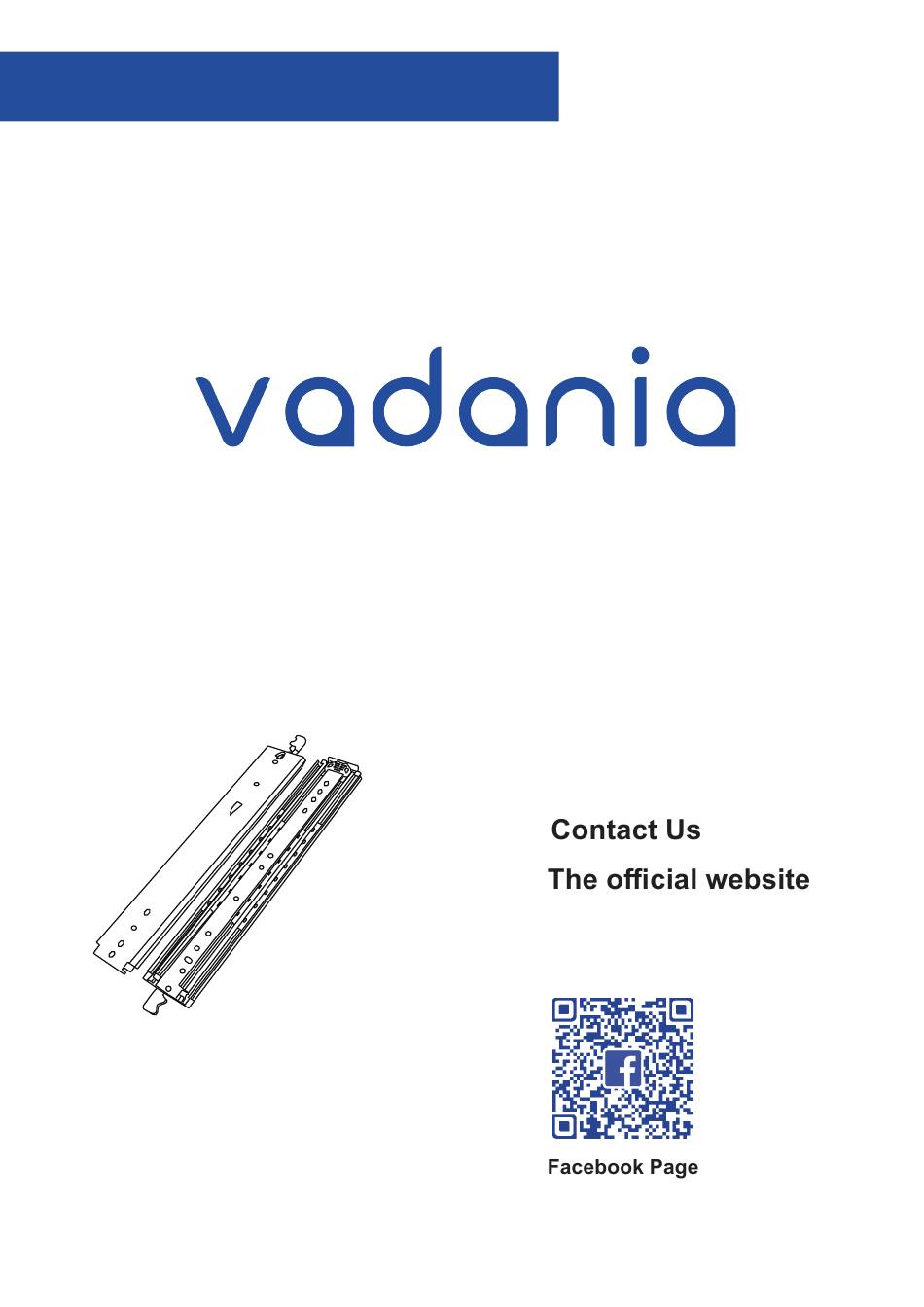

- Page 1 VD2576 Heavy Duty Drawer Slides Manual H a r d w a r e f o r y o u r l i f e https://vadania.com/ Email: info@vadania.com Package 1 Pair of drawer slide Attention: The mounting brackets and screws are not included.
- Page 2 NAME： VADANIA HEAVY DUTY DRAWER SLIDES VD2576 MATERIAL: COLD-ROLLED STEEL INSTALLATION METHOD: SIDE MOUNT MAXIMUM LOAD CAPACITY: 485LBS / 220KG MINI DEPTH OF CABINET: DRAWER LENGTH + 0.12IN / 3MM SLIDE STYLE: 3 FOLDS FULL EXTENSION, NON-SEPARABLE, HEAVY DUTY,LOCKING DESIGN PLATE THICKNESS: OUTER SLIDER 0.1IN(2.5MM) / MIDDLE SLIDER...
-
Page 3: Product Features
Product Features Lock Button Press to unlock the slide. 1.8mm/0.07” Double Thickening Made of high-density thickened plates,stronger bearing capacity. Galvanizing Treatment Prevent oxidation and rust, keep clean and durable . Stronger Solid Ball Bearing 7.5mm Steel Balls. Sliding smoothly and gently under full load. -
Page 4: Installation Instruction
Installation Instruction Step1 Step2 Make sure the slides are leveled during the Place the outer member ush with the front installation process edge of cabinet Step3 Step4 Mount the screws in the permanent mounting Mount the screws in the permanent mounting (Breathing) holes on the cabinet wall (Breathing) holes on the drawer Installation Precautions... -
Page 5: Size Table
Size Table Dimension Travel Length：L±2 α β Slides length 76.2±0.5 α β Screws Holes Position Slide Slide Width Thickness Size Length(L1) Length(L) 20"/500mm 20"/508mm 20"/508mm 4.1’’/106.4mm 13’’/330.2mm 24"/600mm 24"/609.6mm 24"/609.6mm 8.1’’/208mm 17’’/431.8mm 28"/700mm 28"/711.2mm 28"/711.2mm 21’’/533.4mm 12.1’’/309.6mm 32"/800mm 32"/812.8mm 32"/812.8mm 6.4’’/165mm 9.7’’/246.5mm 4.9’’/126.9mm...
Need help?
Do you have a question about the VD2576 and is the answer not in the manual?
Questions and answers
How do you mount drawer to vd2576 if rail is not removable
To mount a drawer to the VADANIA VD2576 slides if the rail is not removable, follow these steps:
1. Attach the Outer Rail: Secure the outer rail of the slide to the cabinet or frame using screws.
2. Extend the Slide: Pull the slide out to its full extension.
3. Align the Drawer: Position the drawer in place and align the inner rail with the pre-installed outer rail.
4. Secure the Drawer: Attach the inner rail to the drawer using screws while keeping the slides fully extended.
5. Test Movement: Push and pull the drawer to ensure smooth operation and proper alignment.
6. Lock if Needed: Engage the locking mechanism if applicable.
Ensure proper spacing (1.5 inches total, 0.75 inches per side) between the drawer and cabinet for smooth operation.
