Summary of Contents for Ashland FlexExtend

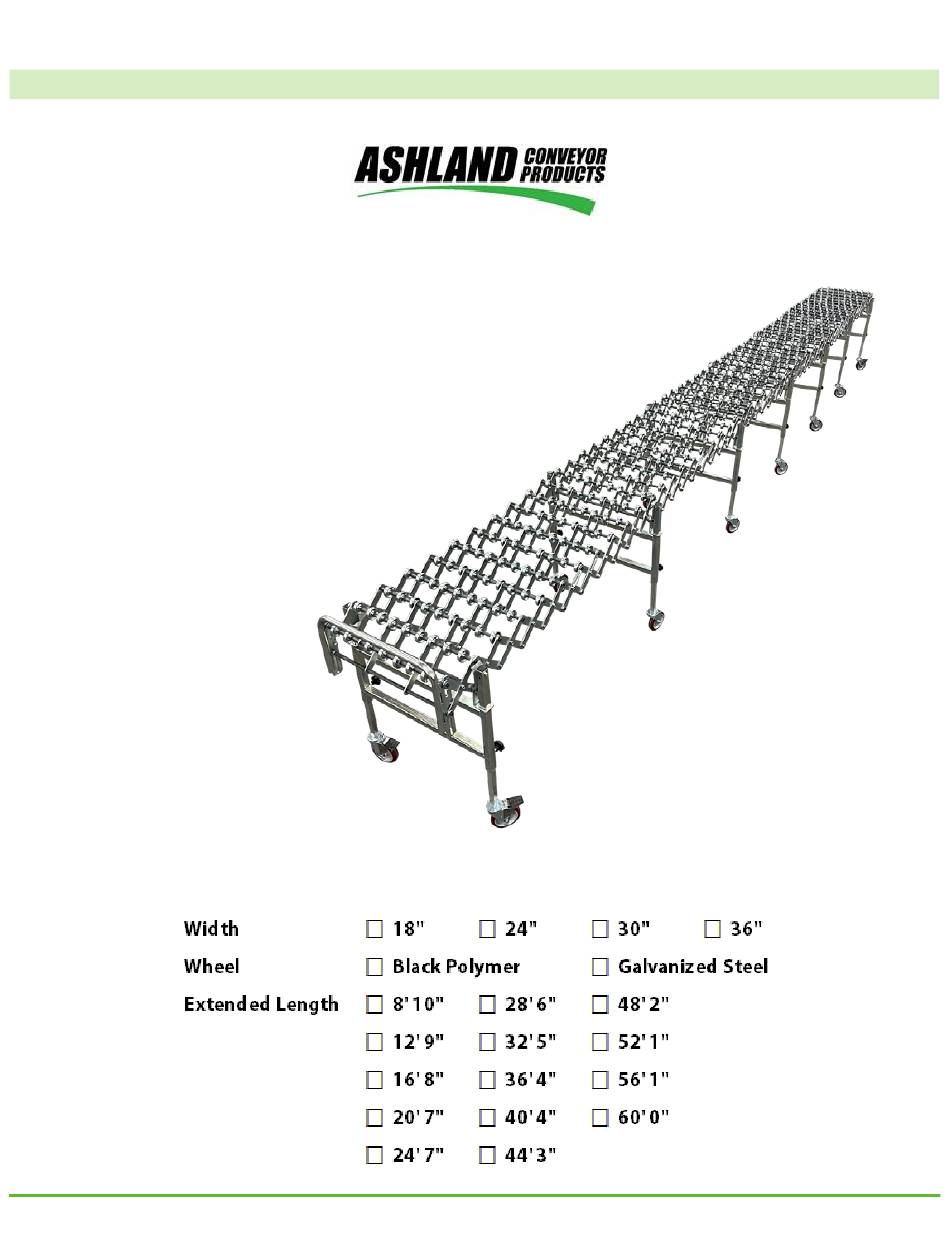

- Page 1 FlexExtend Skatewheel Conveyor Operators Manual Model Purchased Information...
- Page 2 Contents Warning Labels .................................. 3 Receiving & Uncrating ..............................3 Assembly ..................................... 4 Operational Information ..............................6 Modifying Slope ................................7 Maintenance Instructions .............................9 Replacement Parts ................................9 Phone 800-587-0045 1919 Cellar Dr. Ashland, Ohio 44805 419-281-1096 www.ashlandconveyor.com...
- Page 3 To move a conveyor to a new location, unlock all locking casters and use the handle on the end carton stop. • Lock all locking casters to prevent motion during use once conveyor has been positioned in the desired location. 800-587-0045 Phone 1919 Cellar Dr. Ashland, Ohio 44805 419-281-1096 www.ashlandconveyor.com...
- Page 4 Placed along the side of the conveyor alerting personnel to pinch points at all linkages when collapsing the FlexExtend. Figure 1 - Pinch Points of Side Linkage When Collapsing the FlexExtend Warnings • Do not place fingers or hands between rows of skate wheels or between side links that create the scissor action on the sides of the conveyor.
- Page 5 WARNING: DAMAGE CAN OCCUR WHEN MOVING THE UNIT WITH A FORKLIFT Once the banding is cut and removed the skid/pallet is designed to allow the FlexExtend to be rolled off by one or two people. Release all locking casters by lifting the brake levers upward and carefully roll the conveyor off the skid/pallet.
- Page 6 Height Adjustment The FlexExtend ships fully assembled. The unit arrives with the height (top of wheel) at the lowest position. In most applications a slope of 3” per 10’ is sufficient but some applications may require more or less slope.
- Page 7 Handle/Stop Operation The handle on the FlexExtend also serves as a package stop. The combination handle and stop can be set in a raised or lowered position. Figure 2 - Handle/Package Stop in the Raised and Lowered Position To use the handle or package stop, pivot the handle upward and engage the handle bracket onto the last axle and lower to lock in place.
- Page 8 Be careful to avoid pinch points, such as the side link assemblies. • Once the conveyor has been extended and positioned as desired, lock the caster brakes to maintain that position. • Release the brakes to reposition the conveyor as needed. Phone 800-587-0045 1919 Cellar Dr. Ashland, Ohio 44805 419-281-1096 www.ashlandconveyor.com...
- Page 9 Maintenance Instructions The ACP FlexExtend Conveyor is virtually maintenance free; however, we do recommend the following: • Keep the conveyor and the surrounding floor area clean and free of debris, dirt, and grease accumulation. • Periodically inspect the conveyor for any loose or worn components. Tighten or replace if necessary.
- Page 10 Replacement Parts 18” Model Phone 800-587-0045 1919 Cellar Dr. Ashland, Ohio 44805 419-281-1096 www.ashlandconveyor.com...
- Page 11 SPACER 5/16X8.625 P 10660 WASHER 5/16 FLAT Z 1) Wheels may be SK40P (black polymer) or SK65G (zinc plated steel) 2) Item 17 replaces item 18 at the handle end 800-587-0045 Phone 1919 Cellar Dr. Ashland, Ohio 44805 419-281-1096 www.ashlandconveyor.com...
- Page 12 Replacement Parts 24” Model Phone 800-587-0045 1919 Cellar Dr. Ashland, Ohio 44805 419-281-1096 www.ashlandconveyor.com...
- Page 13 SPACER 5/16X7.670 P 10660 WASHER 5/16 FLAT Z 1) Wheels may be SK40P (black polymer) or SK65G (zinc plated steel) 2) Item 18 replaces item 19 at the handle end 800-587-0045 Phone 1919 Cellar Dr. Ashland, Ohio 44805 419-281-1096 www.ashlandconveyor.com...
- Page 14 Replacement Parts 30” Model Phone 800-587-0045 1919 Cellar Dr. Ashland, Ohio 44805 419-281-1096 www.ashlandconveyor.com...
- Page 15 SPACER 5/16X9.625 P 10660 WASHER 5/16 FLAT Z 1) Wheels may be SK40P (black polymer) or SK65G (zinc plated steel) 2) Item 19 replaces item 20 at the handle end 800-587-0045 Phone 1919 Cellar Dr. Ashland, Ohio 44805 419-281-1096 www.ashlandconveyor.com...
- Page 16 Replacement Parts 36” Model Phone 800-587-0045 1919 Cellar Dr. Ashland, Ohio 44805 419-281-1096 www.ashlandconveyor.com...
- Page 17 WASHER 5/16 FLAT Z 69348 WASHER SPRG 5/16 Z 1) Wheels may be SK40P (black polymer) or SK65G (zinc plated steel) 2) Item 18 replaces item 19 at the handle end 800-587-0045 Phone 1919 Cellar Dr. Ashland, Ohio 44805 419-281-1096 www.ashlandconveyor.com...
- Page 18 Replacement Leg Parts Phone 800-587-0045 1919 Cellar Dr. Ashland, Ohio 44805 419-281-1096 www.ashlandconveyor.com...
- Page 19 FLXUL30OF Z - For 30” Wide Flex 69460 FLXUL36OF Z - For 36” Wide Flex 69343 FLXULKNOB 3/8-16 69344 TUBEPLUG1-1/4 14GA P 69340 FLXLLCSTR5SL 350 69339 FLX LEG 36 5SL 350 800-587-0045 Phone 1919 Cellar Dr. Ashland, Ohio 44805 419-281-1096 www.ashlandconveyor.com...
