RWC2010M Digital Radio Tester
Operating Manual
Version 1.00
(F/W Version 1.00)
2022 / 12 / 13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RWC2010M and is the answer not in the manual?

Questions and answers

Summary of Contents for Redwood RWC2010M

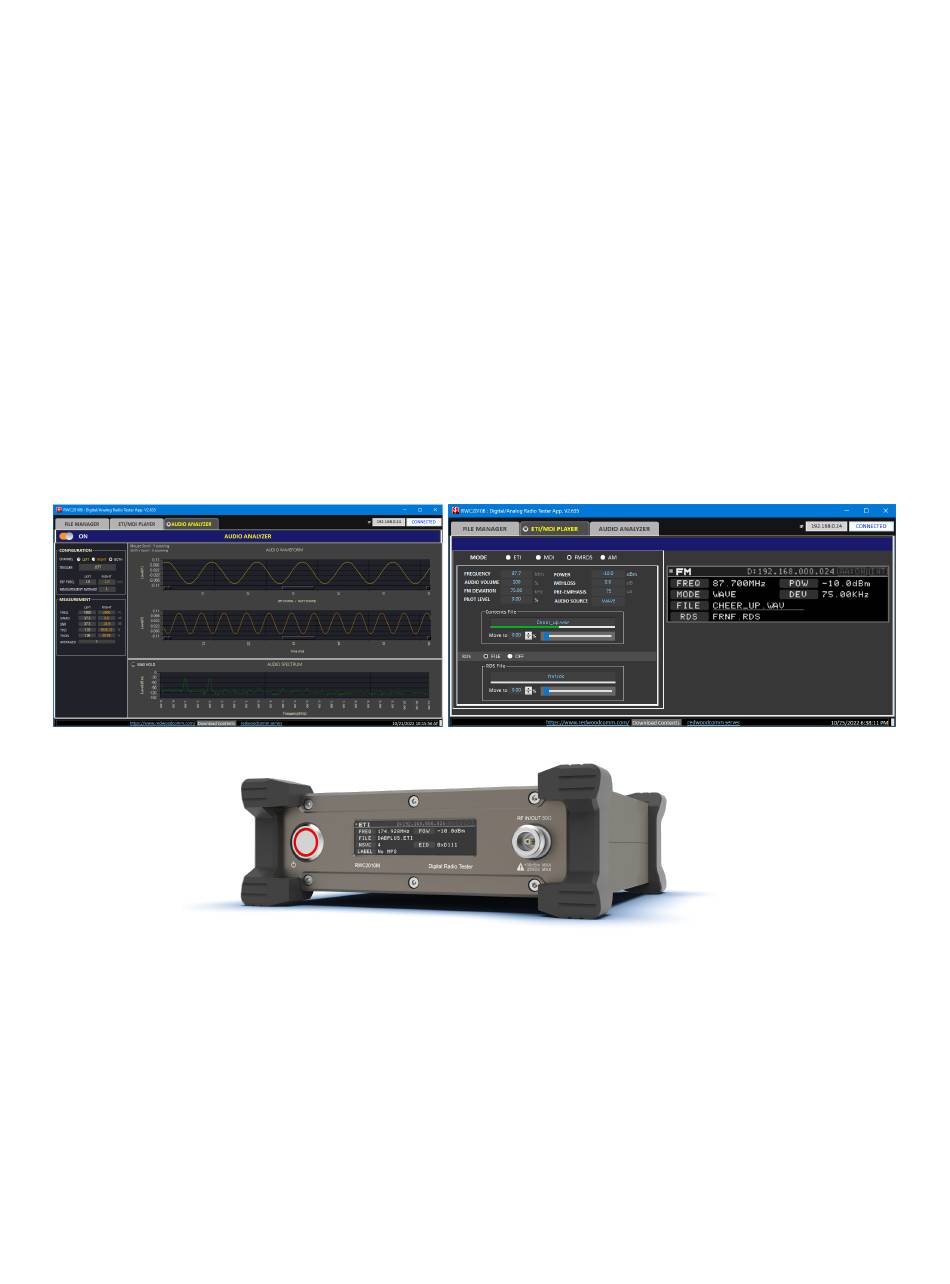

  • Page 1 RWC2010M Digital Radio Tester Operating Manual Version 1.00 (F/W Version 1.00) 2022 / 12 / 13...
  • Page 2: Table Of Contents

    2.3.3 Operation Mode 2.4 Content file 2.4.1 ETI, MDI, WAV files 2.4.2 RDS files 2.4.3 Downloading files from RedwoodComm’s Server 2.4.4 Downloading files from PC to RWC2010M 2.4.5 Internal Storage 2.5 Firmware Upgrade 2.5.1 Normal Firmware Upgrade 2.5.2 Emergency Firmware Upgrade Sequence 3.
  • Page 3 3.3 FM Transmission 3.3.1 Parameters 3.3.2 AUDIO SOURCE 3.4 AM Transmission 3.4.1 PARAMETERS 3.4.2 AUDIO SOURCE 4. Audio Analyzer 4.1 Operation 4.1.1 Specification 4.1.2 Zooming audio waveform 4.1.3 Fitting audio waveform 4.1.4 Zooming audio spectrum 4.1.5 Max hold of spectrum analyzer 4.2 Parameters 4.2.1 CONFIGURATION PARAMETER 4.2.2 TRIGGER...
  • Page 4: General Information

    1 General Information This chapter covers instrument Specifications, Key Features and Safety Consideration. 1.1 Warranty 1.2 Safety Considerations 1.3 General Information 1.4 Exterior 1.5 Operating Environment 1.6 Ordering Information RedwoodComm Co., Ltd. 4/42...
  • Page 5: Warranty

    1.1 Warranty RedwoodComm Warrants that this product will be free from defects in materials and workmanship for a period of two(2) years from the date of shipment. During the warranty period, RedwoodComm Company will, at its option, either repair or replace products that prove to be defective.
  • Page 6: Product Damage Precautions

    earth ground to avoid electric shock or instrument damage. Before making connections to the input or output terminals of the product, ensure that the product is properly grounded. Do Not Operate Without Covers To avoid electric shock or product damage, do not operate this product with protective covers removed.
  • Page 7: General Information

    Using the RWC2010M’s ETI/MDI player function with these files, specific broadcasting stations’ T-DMB/DAB signals or DRM signals can be easily regenerated in labs. The RWC2010M also provides analog functions as AM/FM transmission and audio analyzer. It also provides RDS functionality as a way to play pre-encoded RDS files.
  • Page 8: Specification

    1.3.2 Specification Frequency LF/MF/HF Band: 0.15 to 30MHz ● BAND I/II/III: 47 to 68MHz, 87 to 108MHz, 174 to 250MHz ● ● Resolution: 1kHz Accuracy: ±1.5ppm/yr @ operating temperature ● Output Level 0 to -110dBm (OFDM: -10 to -120dBm) for BAND I/II/III ●...
  • Page 9: Power Requirement

    ● Internal storage: 256GB * The specifications are subject to change without notice. 1.4 Power Requirement This Tester is a portable instrument and requires no physical installation other than connection to a power source. The manufacturer does not take any responsibility for problems that occur when the adapter provided with the product is not used.
  • Page 10: Ordering Information

    1.6 Ordering Information C2010M-00: Digital Radio Tester - Full Option ETI/MDI Player, RDS/FM/AM Transmitter C2010M-01: Digital Radio Tester - ETI+MDI ETI/MDI Player C2010M-02: Digital Radio Tester - ETI+Analog ETI Player, RDS/FM/AM Transmitter C2010M-03: Digital Radio Tester - MDI+Analog MDI Player, RDS/FM/AM Transmitter C2010M-04: Digital Radio Tester - ETI Only ETI Player C2010M-05: Digital Radio Tester - MDI Only...
  • Page 11: Basic Operation

    2. Basic Operation This section describes the basic concepts and details of operating RWC2010M ETI/MDI Player. Understanding the basic concepts of your RWC2010M helps you use it effectively. 2.1 Exterior 2.1.1 Front Panel View Fig. RWC2010M Front Panel View POWER ON/OFF SWITCH 2.8”...
  • Page 12: Screen Layout

    Fig. RWC2010M Rear Panel View 1. 12V DC power input 2. RJ45 connector 3. RS232 male connector 4. Function button 5. 10MHz input BNC 6. Audio In 3.5pi 7. GND Terminal 2.2 Screen Layout 2.2.1 Booting Screen When the power is turned on, the FW version and serial number are displayed as shown in the screen below.
  • Page 13: Information

    2.2.1 Information Fig. Screen Layout Common Information Transmission MODE ETI/MDI/FM/AM Frequency Transmission Frequency MHz Power Transmission Power dBm or dBuV IP Address IP4 D:123.123.123.123 D:Dynamic S:Static AA ON/OFF Audio Analyzer ON/OFF status INT/EXT INTernal or EXTernal 10MHz reference use ETI Mode Transmission mode FILE Playback content file...
  • Page 14: Setup Parameters

    Total Harmonic Distortion and Noise, Left/Right, Unit % 2.2.3 Setup parameters RWC2010M, a dongle type device, does not have any console key, so direct parameter setting through the device is impossible. Even RF basic parameters such as frequency and power must be set through the PC application.
  • Page 15: Standalone

    RWC2010M can be used while controlling it with a PC application software. Users can control it with users’ own designed software, remote commands, or can use RWC2010x_application.exe which controls through Ethernet or RS232. 2.3.1 Standalone For standalone operation, a file that can be played during booting must be downloaded in advance.
  • Page 16: Content File

    Audio Analyzer : RWC2010M provides audio analyzer function. This measures the audio signal input to the 3.5pi stereo jack on the rear panel of RWC2010M. Since it is independent of the transmitter, it can be operated concurrently with the transmission. To use Audio Analyzer, you need to activate the function using PC software.
  • Page 17: Rds Files

    Please refer to chapter 2.4 to know how to download content files for detail. 2.4.2 RDS files In the case of RDS files, due to compatibility issues, the user's own files cannot be used. The RDS files provided by RedwoodComm can be used, or dumped ones using the RWC2100F sold by RedwoodComm can be used.
  • Page 18: Downloading Files From Pc To Rwc2010M

    Click the “UPDATE LIST” button of the PC before starting to download, then the FILE MANAGER will update the file list of the user PC. Users can download files from the PC to the RWC2010M by clicking the DOWNLOAD button( ).
  • Page 19: Internal Storage

    Fig. Downloading content files from User pc to RWC2010M equipment 2.4.5 Internal Storage RWC2010M has 256 GBytes internal storage. All types of content files are saved in it. Users can format it. Free space of the storage displayed in the FILE MANAGER tab.
  • Page 20: Emergency Firmware Upgrade Sequence

    Fig. RWC UPGRADER Screen 2.5.2 Emergency Firmware Upgrade Sequence Failing of Normal Upgrading can affect or disable RWC2010M. In this case, the RWC2010M should be booted in Emergency Upgrade mode. If the normal program behaves abnormally and cannot be upgraded with the Upgrader program, the normal program must be deleted for emergency booting.
  • Page 21: Transmission Mode

    Fig. ETI Player Selection 3.1.1 ETI File Transmission RWC2010M operates as an ETI file player. Users can not modify ETI file parameters but just play with ETI compatible files. Users control the starting position of the playback file by scrolling the progress bar or by modifying the “MOVE TO”...
  • Page 22: Eti Contents File

    Fig. MDI Player selection 3.2.1 MDI File Transmission RWC2010M operates as an MDI file player. To play MDI files, set the test mode as MDI by clicking the MDI radio button. Users can not modify MDI file parameters but just play with MDI compatible files. Users control the starting position of the playback file by scrolling the progress bar or by modifying the “MOVE...
  • Page 23: Fm Transmission

    RWC2010M provides Analog mode for FM/AM test purposes. FM mode supports MONO, Stereo, Sweep and wave file player mode. RWC2010M supports just one channel FM test function. Users can enable an RDS(Radio Data System) data channel by clicking the RDS FILE radio button.
  • Page 24: Audio Source

    3.3.2 AUDIO SOURCE MONO Set the MODE parameter as ‘MONO’ for FM Mono transmission. FREQUENCY : Audio Frequency in kHz Fig. FM Transmission - Mono mode STEREO Set the MODE parameter as ‘STEREO’ for FM Stereo transmission. In this mode, two audio signals(LEFT/RIGHT) are FM modulated.
  • Page 25 Fig. FM Transmission - Wave mode SWEEP Set the MODE parameter as ‘SWEEP’ for FM SWEEP Mode test. In FM_SWEEP mode, RWC2010M sweeps FM audio tone frequency from the SWEEP_START to the SWEEP_STOP during SWEEP_TIME. START FREQUENCY : Start frequency of test tone sweep in kHz...
  • Page 26: Am Transmission

    Fig. RDS file and play position selection 3.4 AM Transmission RWC2010M provides Analog mode for FM/AM test purposes. Analog AM mode supports MONO AM test function and wave file player function. 3.4.1 PARAMETERS FREQUENCY : AM carrier frequency in kHz...
  • Page 27 SWEEP AM Set the MODE parameter as ‘SWEEP’ for the AM SWEEP Mode test. In AM_SWEEP mode, RWC2010M sweeps AM audio tone frequency from the SWEEP_START to the SWEEP_STOP during SWEEP_TIME. START FREQUENCY : Start frequency of test tone sweep in kHz...
  • Page 28 Fig. AM Sweep mode test screen RedwoodComm Co., Ltd. 28/42...
  • Page 29: Audio Analyzer

    4. Audio Analyzer RWC2010M provides an audio analyzer function. With this function, you can measure frequency, SINAD, SNR, THD and THDN. You have to input the audio signal into the 3.5mm audio input jack on the rear panel. Figure 3.27 Audio analyzer function 4.1 Operation...
  • Page 30: Fitting Audio Waveform

    4.1.3 Fitting audio waveform The audio analyzer provides a zoom function using the mouse wheel. Both x-axis and y-axis are available. With only mouse scrolling, the y-axis zoom works, and with [shift] keying and the mouse scrolling, the x-axis zoom works. Also, by double-clicking with the left mouse button, it adjusts the signal to the y-axis in full scale automatically.
  • Page 31: Parameters

    4.2.2 TRIGGER It provides three types of trigger methods such as LEFT, RIGHT, and OFF. With an OFF trigger, the audio waveform can be swung in x-axis because RWC2010M dumps audio data without any trigger. Fig. Trigger option of audio analyzer 4.2.3 REFERENCE FREQUENCY...
  • Page 32: Measurement Average

    Fig. Mismatched reference example. Transmitted frequency: 2kHz, Measured frequency: 2kHz, reference frequency: 1kHz 4.2.4 Measurement average It indicates how many times the RWC2010M measures the quality of the input audio signal and averages them. 4.3 Measurement RWC2010M measures and displays values such as FREQUENCY, SINAD, SNR, THD, and THDN.
  • Page 33: Snr (Signal To Noise Ratio)

    The quality of a signal from a communications device, often defined as �� +�� +�� ������ ���������� �������� ���������� = , ��ℎ������ �� +�� ���������� �������� : the average power of the signal �� ������ : the average power of noise ��...
  • Page 34: Remote Control Programming

    5. Remote Control Programming PC may control the RWC2010M remotely through Ethernet or RS232C interface using a comprehensive set of commands. This section provides the necessary information to operate the RWC2010M under Ethernet and RS232C control 5.1 Introduction 5.2 RS-232C Interface 5.3 ETHERNET Interface...
  • Page 35: Introduction

    Set commands change instrument settings or perform a specific action. Queries cause the RWC2010M to return data and information about its status. Most commands have both a set form and query form. The query form of the command is started with “READ” and the set form of the command is started with “CONF”.
  • Page 36: Command Parameter Types

    ▣ Note: All responses are finished by LF (Line Feed, Char(10)). 5.2 Interface for Remote Control 5.2.1 RS-232C interface Cable Connection RWC2010M Remote PC Control Parameters To use RS-232C, the parameters of the Any PC software terminal program should be set up as follows.
  • Page 37: Ethernet Interface

    NONE 5.2.2 Ethernet Interface Connect LAN port of PC and RWC2010M Ethernet port by RJ45 cable. You can see the IP address of RWC2010M at the upper right side of the screen. The ethernet protocol is UDP and the port number is 5001.
  • Page 38: Remote Programming Guide

    Send RS232C command through serial port. ● ● Check command execution results on the RWC2010M screen. ● Send the next command after successful execution of the previous command. If it is difficult to check the execution of the previous command, the next command ●...
  • Page 39: Eti Setup

    Compensation power CONF:SETUP:PATH_LOSS <value> -60.0 ~ 60.0 for pathloss(dB) READ:SETUP:TESTER_MODE? CONF:SETUP:TESTER_MODE <value> FM, AM, ETI, MDI 5.3.2 ETI SETUP <value> Command Description Range READ:ETI:CONFIG:MODE? CONF:ETI:CONFIG:MODE <value> ETI, MDI READ:ETI:CONFIG:CONTENTS? The name of playback CONF:ETI:CONFIG:CONTENTS <value> content file Reset the file EXEC:ETI:CONFIG:CONTENTS_RST reading pointer 5.3.3 ANALOG FM...
  • Page 40: Analog Rds

    READ:ANALOG:FM:STEREO_MODE? <value> LEFT_AND_RIGHT, CONF:ANALOG:FM:STEREO_MODE <value> LEFT_ONLY, RIGHT_ONLY READ:ANALOG:FM:AUDIO_FREQ_R? <value> Uint : kHz CONF:ANALOG:FM:AUDIO_FREQ_R <value> 0 ~ 10.00 READ:ANALOG:FM:AUDIO_FREQ_L? <value> Uint : kHz CONF:ANALOG:FM:AUDIO_FREQ_L <value> 0 ~ 10.00 Reset the file EXEC:ANALOG:FM:CONTENTS_RST <value> reading pointer READ:ANALOG:FM:CONTENTS? <value> The name of wave CONF:ANALOG:FM:CONTENTS <value>...
  • Page 41: Analog Am

    CONF:ANALOG:RDS:RDS_MODE <value> OFF, FILE READ:ANALOG:RDS:CONTENTS? <value> The name of playback CONF:ANALOG:RDS:CONTENTS <value> content file 5.3.5 ANALOG AM <value> Command Description Range READ:ANALOG:AM:MODE? CONF:ANALOG:AM:MODE <value> MONO, WAVE, SWEEP READ:ANALOG:AM:AUDIO_FREQ? Unit : kHz CONF:ANALOG:AM:AUDIO_FREQ <value> 0 ~ 10.000 READ:ANALOG:AM:AM_INDEX? Unit : % CONF:ANALOG:AM:AM_INDEX <value>...
  • Page 42 READ:SETUP:SYSTEM:IP_TYPE? STATIC Static CONF:SETUP:SYSTEM:IP_TYPE DYNAMIC or Dynamic READ:SETUP:SYSTEM:IP_ADDR? 000.000.000.000 CONF:SETUP:SYSTEM:IP_ADDR IP4 type 255.255.255.255 RedwoodComm Co., Ltd. 42/42...
