Operating

instructions

Wireless smoke alarm ASD 10

Version: 09.2019.0

ID: 900.000.0801

EN14604:2005 + AC:2008 DoP.: 2301-002

Lindenstraße 20

74363 Güglingen

Telefon+49 7135 102-0

Service+49 7135-102-211

Telefax +49 7135-102-147

info@afriso.com

www.afriso.com

Table of Contents

Need help?

Do you have a question about the CAVIUS ASD 10 and is the answer not in the manual?

Questions and answers

Summary of Contents for AFRISO CAVIUS ASD 10

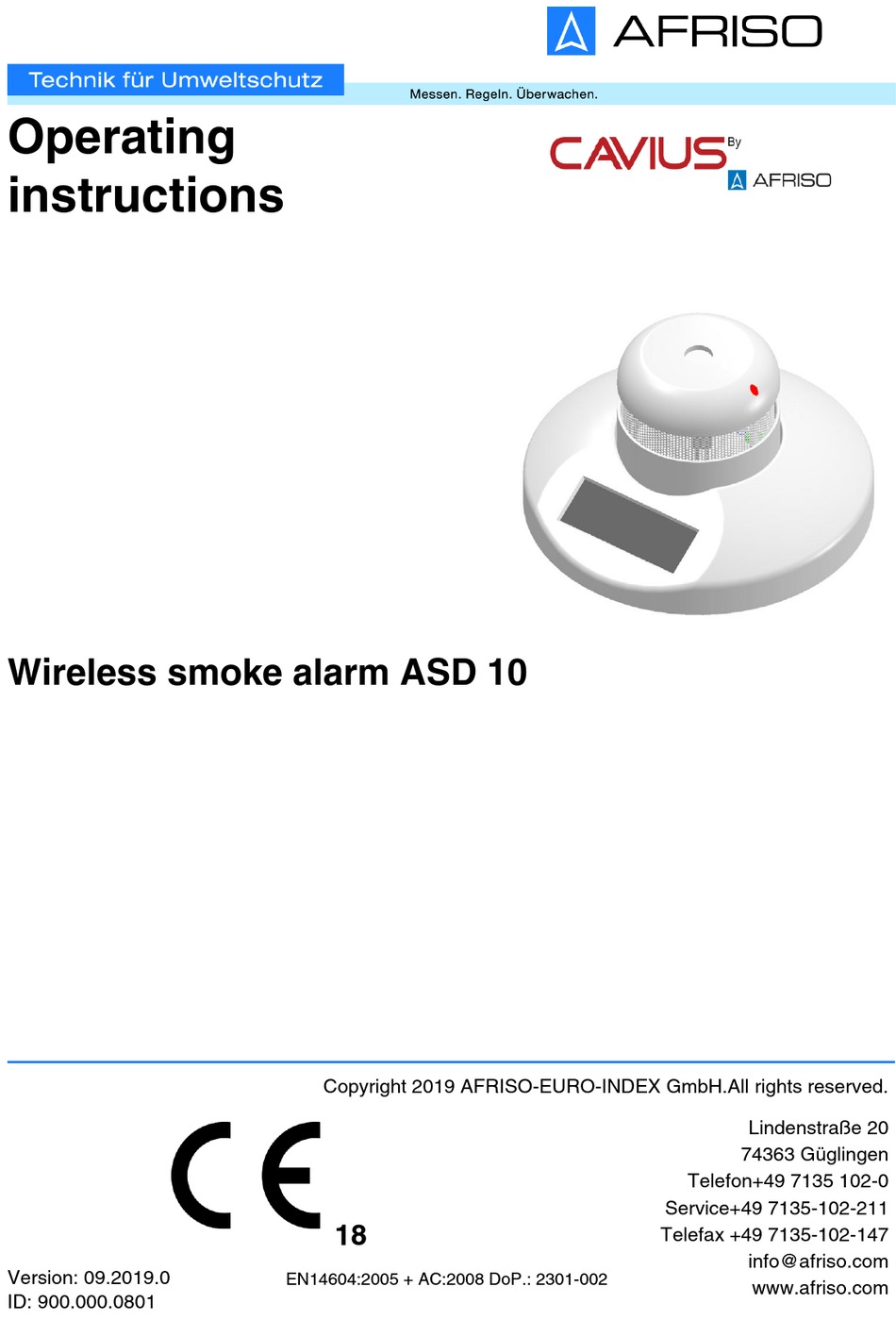

Page 1 Operating instructions Wireless smoke alarm ASD 10 Copyright 2019 AFRISO-EURO-INDEX GmbH.All rights reserved. Lindenstraße 20 74363 Güglingen Telefon+49 7135 102-0 Service+49 7135-102-211 Telefax +49 7135-102-147 info@afriso.com Version: 09.2019.0 EN14604:2005 + AC:2008 DoP.: 2301-002 www.afriso.com ID: 900.000.0801...
Page 2 About these operating instructions About these operating instructions These operating instructions describe the "wireless smoke alarm ASD 10" (also referred to as "product" in these operating instructions). These operat- ing instructions are part of the product. • You may only use the product if you have fully read and understood these operating instructions.
Page 3: Information On Safety
Information on safety Information on safety Safety messages and hazard categories These operating instructions contain safety messages to alert you to poten- tial hazards and risks. In addition to the instructions provided in these oper- ating instructions, you must comply with all directives, standards and safety regulations applicable at the installation site of the product.
Page 4 Information on safety Intended use The product may only be used for the detection of smoke caused by fire in private rooms and recreation vehicles. The product may also be used in rec- reation vehicles. The sensor head smoke alarm ASD can only be operated in conjunction with the wireless mounting base ASD 10.
Page 5 Information on safety Predictable incorrect application The product must never be used in the following cases and for the following purposes: • Bathrooms, shower rooms, kitchens and other rooms which are subject to the formation smoke or vapour • Garages, workshops and areas which are subject to the formation of dust, dirt or flue gases •...
Page 6: Transport And Storage
Transport and storage Transport and storage The product may be damaged as a result of improper transport or storage. NOTICE DAMAGE TO THE PRODUCT • Verify compliance with the specified ambient conditions during transport or storage of the product. • Use the original packaging when transporting the product.
Page 7: Product Description
Product description Product description Overview A. Sensor head smoke alarm B. Pushbutton (test button) C. red LED D. Wireless mounting base ASD 10 E. Solar cell F. Cover/holder G. Fixing holes Wireless smoke alarm ASD 10...
Page 8 Product description H. LRN pushbutton I. Antenna J. Battery compartment for optional lithium battery Dimensions Ø 40 mm Ø 86 mm Wireless smoke alarm ASD 10...
Page 9 Product description Function The sensor head smoke alarm ASD can only be operated in conjunction with the wireless mounting base ASD 10. A solar cell generates the required energy. A lithium battery (optional) must be inserted into the wireless mounting base ASD 10 for use in darker envi- ronments.
Page 10 Product description Technical specifications 4.5.1 Wireless mounting base ASD 10 Parameter Value General specifications Dimensions (Ø W x H) 86 x 22 mm Weight 38 g Housing material PC/ABS Colour White, similar to RAL 9003 Measuring range Temperature: 0/+40 °C Accuracy Temperature: ±1K Operating temperature range...
Page 11 Product description Parameter Value Radio Equipment Directive, RED (2014/53/EU) Applied standard EN 301489-3:V1.6.1 EN 61000-3-2:2013 EN 61000-3-3:2013 EN 300220-2:V3.1.1 EN 60950-1:2006 + A11:2009 +A1:2010 + A12:2011 + A2:2013 EN 62479:2010 EnOcean® wireless Frequency 868.3 MHz Transmission power Max. 10 mW Range See chapter "Information on EnOcean®...
Page 12 Product description Parameter Value State indication A short acoustic signal sounds Low Battery and the red LED flashes every seconds. - When this acoustic signal starts, the smoke alarm ASD can be operated for another 30 days or 4 min- utes in the case of an alarm.
Page 13: Electrostatic Discharge
Mounting Mounting Mount the product to the ceiling, if possible in the middle of the room. Preparing mounting  Ensure that the product is mounted with a distance of at least 50 cm from the wall, a joist or from other objects. ...
Page 14 Mounting 1. Press the LRN pushbutton (A) of the wireless mounting base ASD 10 with an object that is not pointed and not conductive. - The wireless mounting base ASD 10 sends a Learn telegram (LRNTEL) to the AFRISOhome gateway. - The wireless mounting base ASD 10 is now connected to the AFRISOhome gateway.
Page 15 Mounting 3. Mount the cover/holder with the enclosed mount- ing material (screws and dowels). 4. Turn (bayonet joint) the wireless mounting base ASD 10 (A) onto the cover/holder. Screwing in the sensor head smoke alarm ASD 1. Remove the label (A) with the CE mark from the sen- sor head smoke alarm ASD.
Page 16 Mounting NOTICE INCORRECT HANDLING DURING SCREWING IN The pushbutton (test button) may be damaged when you screw it in. • When screwing the sensor head smoke alarm into the wireless mounting base ASD 10, make sure not to touch the pushbutton (test button) of the smoke alarm ASD.
Page 17 Mounting 2. Fit the sensor head smoke alarm ASD (B) into the wireless mounting base ASD 10 (D). Consider the coding fins (C) at the sensor head smoke alarm ASD and at the wireless mounting base ASD 10 when doing 3.
Page 18: Incorrect Operation
Commissioning Commissioning  Verify that the solar-operated energy storage module of the wireless mounting base ASD 10 has been charged. Function test CAUTION LOUD ALARM SOUND The smoke alarm ASD generates a very loud and sharp alarm sound. • Keep a minimum distance of 50 cm during the function test. Failure to follow these instructions can result in injury.
Page 19 Commissioning 1. Press the pushbutton (test button) of the smoke alarm ASD (A). - The audible alarm sounds. - The red LED (B) flashes twice. - The AFRISOhome app on your smartphone/tab- let shows that the state of the product has changed.
Page 20: Maintenance
Maintenance Maintenance Maintenance intervals 1. Perform a function test every three months (see chapter ""Function test""). 2. Clean the product every three months (see "Maintenance activities"). Maintenance activities • Visual inspection for damage. • Visual inspection of the smoke inlet for cleanliness (no dust). •...
Page 21: Troubleshooting
The wireless mounting Teach in the wireless base ASD 10 has not mounting base ASD 10 been properly con- again (see chapter nected to the AFRISO- "Teaching in"). home gateway Environment of the wire- Check the environment less mounting base...
Page 22 Reduced range of the Metal objects or materi- Keep a minimum dis- wireless signals als containing metal in tance of 50 cm from the vicinity objects or walls. Other malfunctions Contact the AFRISO service hotline Wireless smoke alarm ASD 10...
Page 23: Decommissioning / Disposal
2. Dispose of the product. Returning the device Get in touch with us before returning your product. Warranty See our terms and conditions at www.afriso.com or your purchase contract for information on warranty. Wireless smoke alarm ASD 10...
Page 24: Spare Parts And Accessories
Spare parts and accessories Spare parts and accessories NOTICE DAMAGE DUE TO UNSUITABLE PARTS • Only use genuine spare parts and accessories provided by the manufac- turer. Failure to follow these instructions can result in equipment damage. Product Product designation Part no.
Page 25 • AN102 • AN103 • AN201 13.3 Features of the EnOcean® technology Visit www.afrisohome.de for documents on EnOcean® technologies. A variety of videos on AFRISO products can also be found on the AFRISO YouTube channel. Wireless smoke alarm ASD 10...
Page 26 Appendix Appendix 14.1 Annual function test confirmation Installation site Date (example: Living room ground floor) Wireless smoke alarm ASD 10...
Page 27 Appendix 14.2 EU Declaration of Conformity Wireless smoke alarm ASD 10...
Page 28 Appendix 14.3 Test report CNPP Wireless smoke alarm ASD 10...
Page 29 Appendix 14.4 CE certificate Wireless smoke alarm ASD 10...
Page 30 Appendix Wireless smoke alarm ASD 10...
