Summary of Contents for Advanced micro peripherals DVICOMP-IS

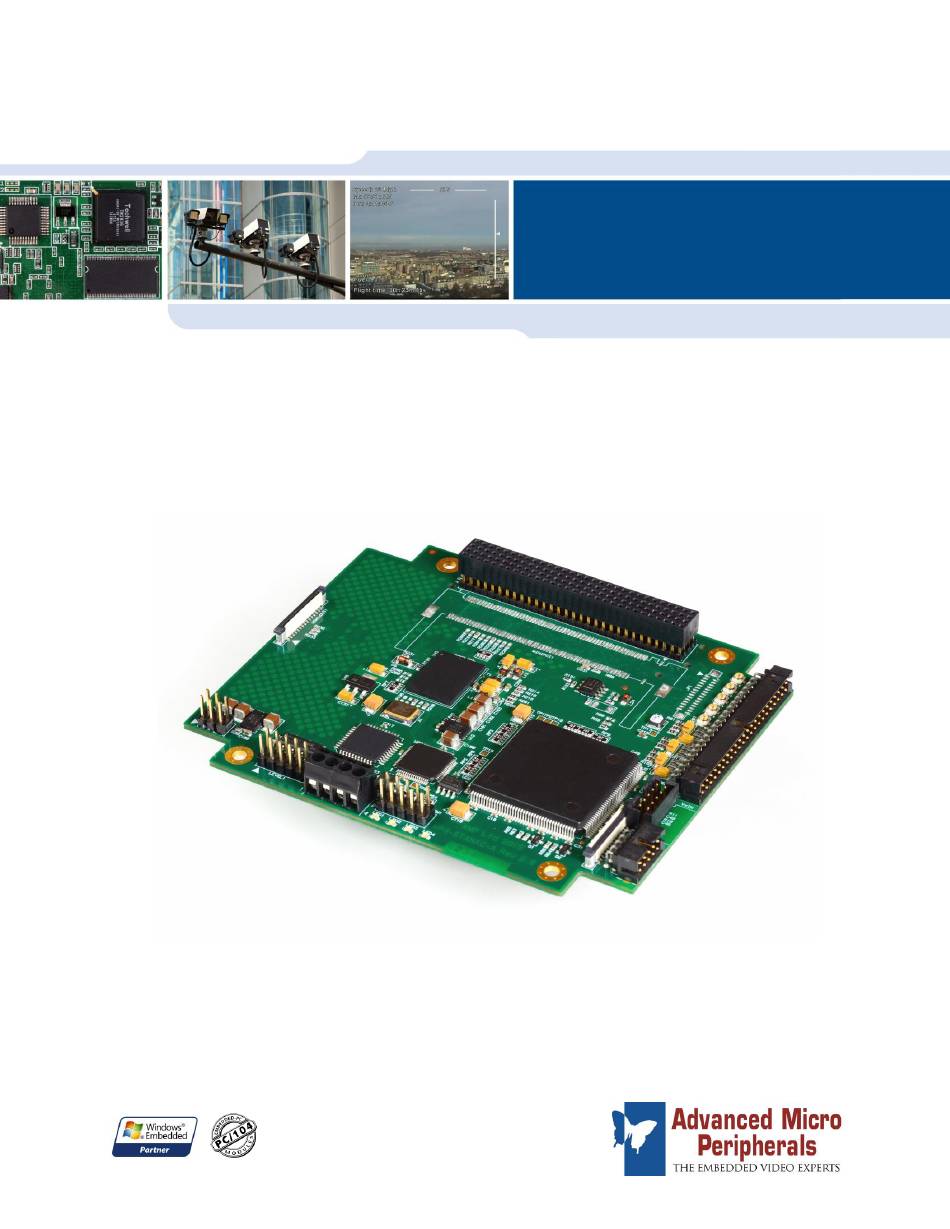

- Page 1 DVICOMP-IS DVI to Composite Scan Converter Board Document version: A.01 HARDWARE REFERENCE MANUAL...
- Page 2 Definitions AMP and Advanced Micro Peripherals are the trading names for Advanced Micro Peripherals Inc. and Advanced Micro Peripherals Ltd. Disclaimer This document contains information on a new product. Specifications and information herein are subject to change without notice. AMP reserves the right to make changes to any products herein to improve functioning and design. Although the information in this document has been carefully reviewed and is believed to be reliable, AMP does not assume any liability arising out of the application or use of any product or circuit described herein.
-
Page 3: Table Of Contents
DVICOMP-IS Hardware Reference Manual Contents Introduction ..................... 4 Features ................................5 DVICOMP-IS ‘at a glance’ ..........................6 Technical specification ............................. 7 Functional summary............................9 Ordering information ............................10 Anti-static handling............................10 RoHS compliance ............................10 Installation ..................... 11 System requirements ............................11 Jumpers and connectors .......................... -
Page 4: Introduction
It can however be mounted on the PCI-104 stack for mechanical convenience without consuming host CPU resources. The DVICOMP-IS also features a mini PCI socket that enables an AMP video Plus codec module to be hosted on a PC/104- or PCI-104 stack. -
Page 5: Features
1: Introduction DVICOMP-IS Hardware Reference Manual Features ▪ Converts computer DVI to composite output ▪ Supports graphics display resolutions of 800 x 600, 1024 x 768 and 1280 x 1024 ▪ Operating modes: PAL 625 lines @ 25 fps ... -
Page 6: Dvicomp-Is 'At A Glance
1: Introduction DVICOMP-IS Hardware Reference Manual DVICOMP-IS ‘at a glance’ Composite output Optional mini PCI expansion 32 bit PCI connector Factory Use Only Power input LEVEL1 – PCI Stack Level TMDS input Factory Use Only © 2018 Advanced Micro Peripherals... -
Page 7: Technical Specification
1: Introduction DVICOMP-IS Hardware Reference Manual Technical specification DVI input: Standard progressive scan DVI input supporting resolutions of 800x600, 1024x768 and 1280 x 1024. Automatic detection of input resolution. Composite output: 625 lines @ 25 fps (PAL option) 525 lines @ 30 fps (NTSC / RS-170A option) (Note: fps means ‘frames per second’. - Page 8 1: Introduction DVICOMP-IS Hardware Reference Manual © 2018 Advanced Micro Peripherals Document version A.01...
-
Page 9: Functional Summary
The video encoder features composite output with sync. Host interface The core functionality of the DVICOMP-IS is completely autonomous to the host PCI bus. The DVICOMP-IS is factory configured for NTSC or PAL output operation and will auto-detect the input resolution prior to performing the rescaling. -
Page 10: Ordering Information
The European RoHS Directive (Restriction on the use of certain Hazardous Substances – Directive 2002/95/EC) limits the amount of six specific substances within the composition of the product. The DVICOMP-IS is RoHS compliant. © 2018 Advanced Micro Peripherals Document version A.01... -
Page 11: Installation
-Plus Computer form factor PC/104 / PCI-104 compliant 3.3v bus signaling. -Plus 32 bit PC/104 Operating system The DVICOMP-IS is self configuring and does not required any intervention from a host CPU. © 2018 Advanced Micro Peripherals Document version A.01... -
Page 12: Jumpers And Connectors
2: Installation DVICOMP-IS Hardware Reference Manual Jumpers and connectors The following diagram shows the location of the jumpers and connectors available on the DVICOMP-IS: MINI1 PCI1 COMP Factory Use Only LEVEL1 TMDS Factory Use Only © 2018 Advanced Micro Peripherals... - Page 13 2: Installation DVICOMP-IS Hardware Reference Manual Conventions The following pages provide information about these jumpers and connectors. All illustrations on these pages are shown in the same orientation as the photograph above, unless otherwise stated. The following table explains the conventions adopted when specifying jumper...
- Page 14 Standard 32-bit PCI-104 bus PCI Rev 2.1 compliant, 3.3V operation. The standard PCI bus signals are only connected to the mini PCI socket. Since mini PCI is defined as 3.3v only (not 5v compliant), the DVICOMP-IS may only serve as a 3.3v Add-in card when fitted with a module.
- Page 15 PCICLK2 IDSEL3 PCICLK3 NOTE: WHEN USING MULTIPLE DVICOMP-IS DEVICES TO HOST MULTIPLE MINIPCI CARDS IN A SYSTEM, EACH CARD MUST HAVE DIFFERENT REQ/GNT PAIR DEPENDING ON THE LEVEL OF THE DEVICE ON THE PCI-104 STACK. © 2018 Advanced Micro Peripherals...
-
Page 16: Cable Set
INTD Cable set The DVICOMP-IS may be supplied with a DVI breakout board that plugs into the TMDS connector via a flat flex cable (part CABLE-STANAG/TMDS). A composite output cable may also be included in the form of a BNC to MMCX co- axial lead (part CABLE-ST-MMCX-TO-BNC-S). -
Page 17: Contacting Amp
/ embedded video experts available to provide a and free quick response to your technical queries. Please submit your technical support query to the appropriate email address: Technical support US Technical support UK E-mail: support@amp-usa.com E-mail: support@ampltd.com © 2018 Advanced Micro Peripherals Document version A.01...
