Summary of Contents for Excel 11784/GT-B0118

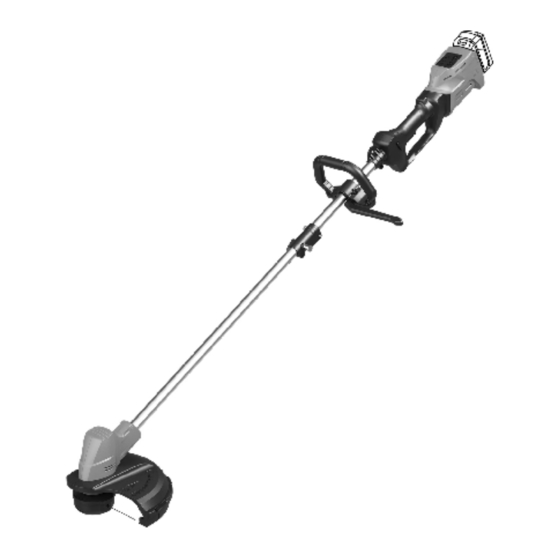

- Page 1 Original Instructions 18V Brushless grass trimmer/ brush cutter 2 in 1 11784/GT-B0118 INSTRUCTION MANUAL...
-
Page 2: Description Of Symbols
Original Instructions DESCRIPTION OF SYMBOLS Symbols are used in this manual to attract your attention to possible risks. The safety symbols and the explications which accompany them must be perfectly understood. The warning themselves do not prevent the risks and cannot be a substitute for proper methods of avoiding accidents. - Page 3 Original Instructions Beware of blade thrust. Danger of injury! Pay attention to objects being blown away. Keep others at a distance. Keep other people out of working area during operation. The distance between the machine and bystanders should be at least 15 meters. Fire hazard! The fuel is flammable and therefore may not be spilled.
- Page 4 Original Instructions On battery Do not expose the battery to water. Do not expose the battery to fire or incinerate. Do not expose the battery to high temperatures (above 40°C). On charger Class II machine – Double insulation – You don’t need any earthed plug. Use this device indoors only.
-
Page 5: General Safety Warnings
Original Instructions GENERAL SAFETY WARNINGS WARNING. Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 6 Original Instructions of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
- Page 7 Original Instructions result in a hazardous situation. 5 - Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
-
Page 8: Intended Use
Original Instructions • Do not use the trimmer if the cutting device is not secured properly or is damaged. • Before starting the trimmer, make sure that the nylon line is not touching stones or debris. • Always wear suitable clothing when using the trimmer to prevent head, hand or feet injuries. -
Page 9: Improper Use
Original Instructions Its cutting plane should always be approximately parallel to the ground. If it is not used in this way, the possibility of injury to persons and property by thrown objects significantly increased. The device is not allowed to be used in public gardens, parks, sports centers or at roadsides as well as in agriculture and forestry. -
Page 10: Description Of Parts
Original Instructions DESCRIPTION OF PARTS 1 On/off switch 2 Lock-off button 3 Main handle 4 Front handle 5 Shaft coupler 6 Protection guard 7 Line cutter 8 Trimmer head 9 Battery pack(excluded) 10 Blade 11 Socket key 12 Hex wrench 13 Shoulder belt... -
Page 11: Technical Data
Original Instructions TECHNICAL DATA Type: GT-B0118 trimmer: 6500rpm No load speed cutter: 7500rpm trimmer:300mm Max cutting length cutter:255mm ø2.0mm*5m Line 5.8 m/s (Main handle), K=1.5 m/s Vibration: 1.8 m/s (Adjustable handle), K=1.5 m/s Sound emission level （L ）: 84 dB(A) K=3.0 dB(A) Guaranteed sound power level (L 96 dB(A) K=3.0 dB(A) Battery and Charger... - Page 12 Original Instructions the end of charge, power to the tool will drop quickly. Charge the battery pack as needed. Fig.1 CH-1802A CH-1802B CH-1802D a. Charging the battery This lithium-ion battery pack is shipped partially charged. Before using it the first time, fully charge the battery pack.
- Page 13 Original Instructions Fig.2 Warning! Always remove the battery pack before making adjustments to the equipment. Be sure to read the following information before you put the cordless equipment into operation: • Charge the battery pack with the charger. An empty battery pack requires a charging period of approximately 0.5 to 1 hour.
- Page 14 Original Instructions ATTACHING PROTECTION GUARD Fit the correct trimmer guard for use with the motor，then tighten screws so that the guard assembly cannot move. REPLACE THE METAL BLADE TO SPOOL CAUTION: NEVER use unit if blade is warped or has teeth that are chipped or missing.
- Page 15 Original Instructions Fig.c Fig.d Fig.e Fig.f Fig.g...
- Page 16 Original Instructions GRASS TRIMMER ASSEMBLY( WITH NYLON LINE) Convert from brush cutter to grass trimmer: • Fit the Wing grange into the trimmer head, align the protrusion on the underside of the cover with the slots of the eyelets. •Then put the Inner flange on the shaft,screw on the spool anticlockwise. . If the line is too long when you use the equipment for the first time, the surplus end of it will be cut by the blade on the guard hood.
-
Page 17: Attaching The Front Handle
Original Instructions LOOP HANLE ASSEMBLY ATTACHING THE FRONT HANDLE 1. Take off the screw on the front handle(4). 2. Place the front handle (4) on the drive tube, adjust the handle to an angle that provides a comfortable working position. 3. - Page 18 Original Instructions Shaft assembly Pull out the knob and push the drive axle into the connector by gently turning it back and forth. The locking knob must engage fully into its hole. OPERATION Use as grass trimmer and brush cutter Before starting Please always read the instruction manual carefully and check the machine before operating.
- Page 19 Original Instructions Caution! In an emergency, stop the machine by releasing the on/off switch. Working with the grass trimmer and brush cutter Important: -Always use the shoulder belt when working with the machine. -Always switch off the machine before you take off the shoulder belt. Note: Keep a firm grip with both hands during operation.
- Page 20 Original Instructions Trimming tips when using grass trimmer -Inspect and clear the area to be trimmed for any rocks, broken glass or wire that could be thrown or become entangled in the cutting line. Trim only when grass or weeds are dry. Keep the cutting line parallel to the ground. -Cut grass or weeds over 20cm tall from the top to the bottom in small amounts.
- Page 21 Original Instructions Note: Always let the grass trimmer rotate at top speed. Do not work in such a way as to overload the trimmer. Warning: Never pass the machine over the extension cable while the machine is running, make sure it is always in a safe position behind your back. Do not use this machine without guard.
-
Page 22: Maintenance
Original Instructions cut. This contact may cause the blade to stop for an instant, and suddenly “thrust” the unit away from the object that was hit. This reaction can be violent enough to cause the operator to lose control of the unit. Blade thrust may occur without warning if the blade snags, stalls or binds. - Page 23 Original Instructions Exceltools.co.uk Sales@exceltools.co.uk...
