OSD Black SRT1 - Media Streamer Manual

SAFETY INSTRUCTIONS

To reduce the risk of fire or electrical shock, do not expose the product ro rain or moisture.
The product should not be exposed to any dripping or splashing liquid.
Objects filled with liquids, such as vases, should not be placed on the product.
Keep the remote control battery away from children. Dispose of used battery promptly, replace only with a battery of the correct type.
Protect the power cord from damage. Do not pull push the power cord excessively, and take care not to let the power cord become pinched, particularly at or near the plug.
Keep the product away from heat sources such as heat registers, stoves or other appliances that produce heat.
Avoid direct sunshine. Do not operate in a sealed box.
Do not open the cover, or touch the inner parts, refer servicing to our customer service.

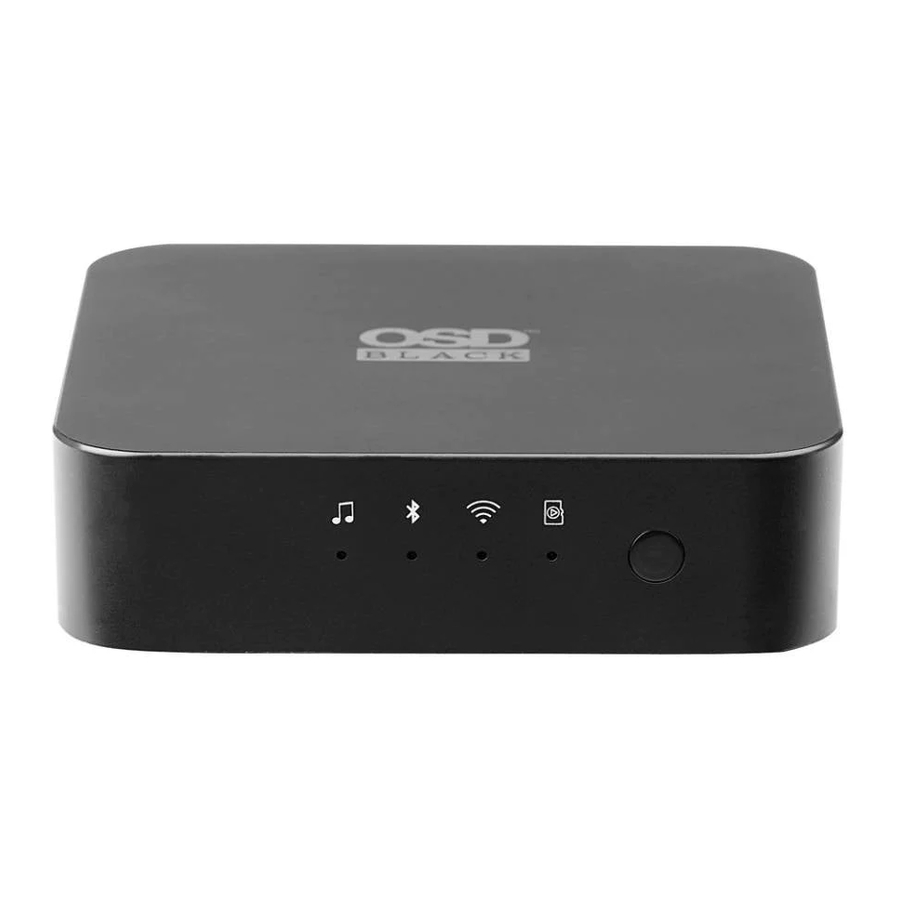

FEATURES

Line Indicator
Bluetooth ® Indicator
Wi-Fi ® Indicator
TF Card Indicator
IR receiving window
Optical Output
Line In
Line Out
LAN Input
RS232
WPS
5V DC In
TF Card Port

REMOTE FEATURES

On/Off Button
WiFi ® Source
Volume Up
Volume Down
Next Track
Previous Track
TF Source
Play All Source
Line Source
Play/Pause
Bluetooth ® Source

SETUP

Connect the power cord to the back of the SRT1 then connect it to a wall outlet.
Connect your devices to a suitable input
Press the Bluetooth ® on the remote or the volume knob to choose a audio source. Control the playback via the remote control by pressing the buttons.

Note: Always press the desired source button on the remote control for the audio source to work.

Connect Your Device

Connect your CD/phone/tablet/MP3 etc... via the appropriate cable your device is compatible with to one of the source inputs on the back of the SRT1.

Bluetooth Pairing

Press the Bluetooth ® on the remote to activate the Bluetooth source.
Activate Bluetooth on your phone/tablet and start searching for new Bluetooth devices.
When your phone/tablet finds SRT1, choose this unit and begin pairing.
To unpair an existing source, press and hold the Bluetooth button on the remote for 3 seconds.

Wi-Fi Connection

Download and install the OSD Player App for your iOS or Android device.
Press the Wi-Fi ® button on the remote to activate the Wi-Fi source.
WPS: - Link your device to the SRT1 and your Wi-Fi network by following the setup steps in the app.

Get The OSD Player App

https://play.google.com/store/apps/details?id=com.wifiaudio.osd&hl=en

https://itunes.apple.com/us/app/osd-player/id1447579044?mt=8

TROUBLE SHOOTIN G

PROBLEM	POSSIBLE CAUSE
No Power	The power cord is disconnected. Poor connection at the wall socket or the wall socket is inactive.
No Sound	Volume control at lowest level. Check if the signal cables are damaged. Check if the LEDs are blinking. If not, re start the unit and ensure that the LED displays is in standby. If it still doesn't work, contact customers service.
Sudden Sound Loss	Check the audio source.
Poor Sound Quality	Audio source problem Bad or incorrect speakers connections. Treble and bass control are too low.
LED Off	Check if the unit is connected with the power outlet and confirm that the voltage regulator works.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by OSD BLACK is under license. Other trademarks and trade names are those of their respective owners.

SPECIFICATIONS

Inputs: Wi-Fi^®, Bluetooth^®, LAN, TF, 3.5mm
Output: 3.5mm Headphone Jack, Optical
DAC: Cirrus Logic CS8406 24 Bit/192kHz DAC
Wi-Fi Frequency: 2.4 GHz
Bluetooth Version: 4.2 V/ aptX™
Dimensions: 4.5 x 4.5 x 1.18" inch
