Bang & Olufsen BeoLine 2 - Base Station Manual

Introduction

RISK OF ELECTRIC SHOCK
DO NOT OPEN

To reduce the risk of electric shock, do not remove cover (or back). No User-serviceable parts inside. Refer servicing to qualified service personnel.

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids, such as vases, are placed on the equipment.

To completely disconnect this equipment from the AC Mains, disconnect the mains plug from the wall socket. The disconnect device shall remain readily operable.

shock hazard The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

warning The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

For the US-market only!

warning NOTE: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harm ful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equip ment off and on, the user is e ncouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the retailer or an experienced radio/TV technician for help.

For the Canadian market only!

This class B digital apparatus meets all require ments of the Canadian Interference-Causing Equipment Regulations.

Important information about BeoLine 2 base

The base is intended for use on public analogue networks. The base supports services such as Caller ID, as long as the automated service in question is offered by your telephone company. Some services require you to take out special subscriptions with the telephone company. Not all supplementary services offered by the different service providers are available in all countries.

Your base can only be expected to function in the country for which it was manufactured, as transmission systems, legal requirements and automated services may vary from country to country. The packaging will state for which country your base is manufactured. The national identity letters can be found above the lowest bar code on the label. If you are in any doubt about the use of your base, contact your retailer for more information.

The base should only be used with the enclosed mains adaptor.
Manufacturer: Friwo
Type: FW7711/0.7
Plug type:

15.2078
15.2894
15.2040.511-177 EU
15.2077.501-177 UK
15.2079.501-177 AUS

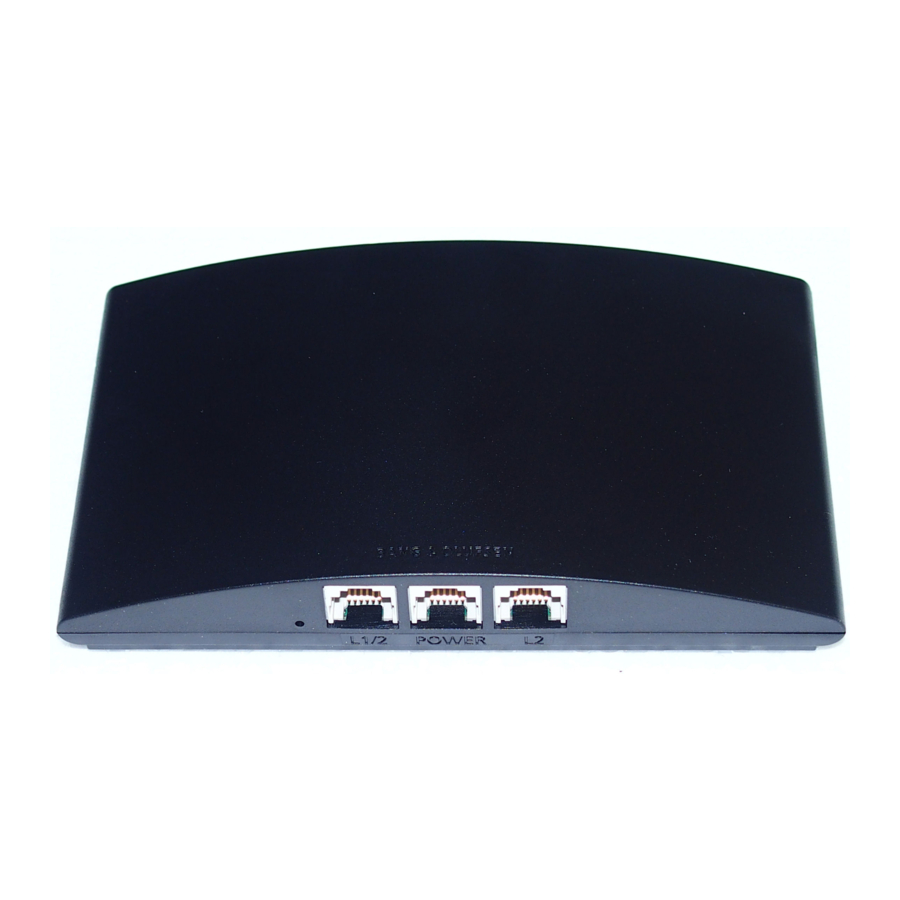

Connections

If your phone lines are combined in a single socket, or you have a single line connection, make the connections as shown in the left diagram. If your two phone lines have separate sockets, make the connections as shown in the right diagram.
The base indicator light (A) flashes red, indicating that the base is open for registration of handsets.
Refer to the Guide enclosed with your handset for information about how to proceed with your handset.

If the mains adaptor is not plugged in, or if the power supply is cut off, your phone will not function. Make alternative arrangements for access to emergency services.

Placement

Use the enclosed bracket, screws, and wall plugs to fasten the base to the wall. Drill two holes (∅ 5 mm – 0.2") in the wall. When marking up where to drill the holes, use the bracket as a template. Make sure to leave enough space around the bracket for the base.

To obtain the best range, place the base in a high and free-standing location, and do not mount it on a metal plate.

Do not place the base in damp, dusty or dirty environments, and do not expose it to moisture or direct sunlight. Do not place it near microwave ovens or similar appliances. The base is designed for use within a temperature range of 10–40º C (50–105º F).

Mounting was evaluated for use on a drywall surface.

Maintenance

Use a soft, damp cloth with a few drops of mild detergent added to clean the base.

Do not extend or alter the power cord of the base in any way, as this will cause the product in question to malfunction!

The base should only be used with the enclosed mains adapter. The mains adapter cable should not be connected to other units, for example, a computer or other USB supplies.

Feedback – indicator light

The indicator light on the base (A) informs you about the current state of the base. The signals are explained below:

Light off... power off. Connect the base to the mains.

Solid green... power on, one or more handsets registered.

Solid red... Power on, no handsets registered.

Flashing red... Power on, base open for registration of handsets. Upon connection to the power outlet, the base is open for five minutes, after which the light shines either green or red (depending on whether or not you registered a handset in that time). If you choose to register an additional handset, a new five-minute period begins, and you can register the next handset.

Register handset to base

You can register eight handsets to BeoLine 2. When you register one handset, that handset then prompts you to register more handsets.

If you want to register more handsets to a base, and one or more of these handsets are BeoCom 6000 or BeoCom 2, the oldest handset model should be registered first. The menu options will then be limited to match the options of the oldest handset registered.

You can open the base for registration using the handset. Access the Open base menu by selecting Settings in the main menu and then the Base menu.

warning Note: If you have an ADSL connection, we recommend that you use a filter when connecting the base to the phone line. Contact your ADSL service provider for further assistance.

First-time registration to the base...
Disconnect the base from the mains for at least two seconds and then reconnect it. The indicator light flashes, and the base is open for registration for five minutes.

Press to switch on the handset. The Language menu appears. Turn the wheel to select the desired menu language and press OK

Register handset to base? is shown in the display

Press OK. The handset searches for an open base

When a base is located, the PARK number* for the base is shown. Check the number against the number on the base

If the numbers do not match, turn the wheel to move through the available bases, if more than one is available. If your base is not shown, open the base for registration once more and repeat the procedure
