Creative Playthings WILLIAMSBURG SD 920-800Q Assembly Manual

MODEL # SD 920-800Q
ASSEMBLY MAN U AL
PICNIC TABLE ASSEMBLY
Upright Corners
Existing Safety Rail
B
C
The installation of the Picnic Table option may require some disassembly of existing components.
Sand box Seats must be removed and will not be used with the Picnic Table. The existing Safety
Rail must be removed and will be utilized later in these instructions
Note: All hardware on this set is specially coated for corrosion re sis tance. If non-
Cre ative Playthings hardware is used, it MUST be galvanized or stainless steel.
STEP 1 - PILOT HOLES
You will have to drill two pilot holes in each of the corner
up rights for the 2x4 Picnic Table Support Rails (A) and the
5/16 x 2-1/2" Lag Screws.
Locate and mark for two pilot holes in each of the Corner
Up rights.
NOTE: They will be located on the same side as the Safety
Rail was attached and the adjacent side. Measure up 16-3/4"
from the bot tom of the Cor ner Up rights to the fi rst hole and
26-3/4" to the second.
At each mark, drill a 3/16" diameter hole to a depth of 1" as
shown in illustration #3.

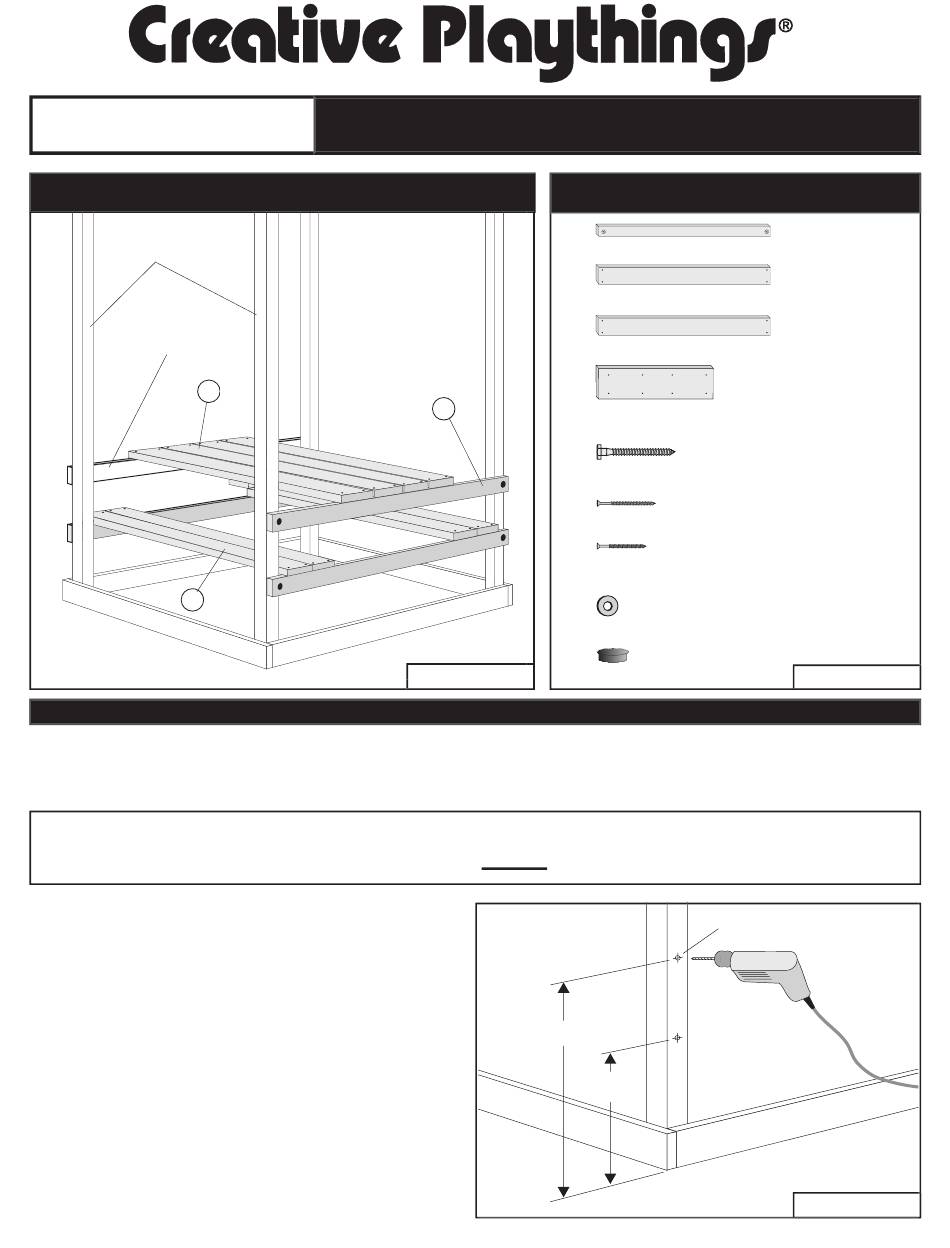

WILLIAMSBURG PICNIC TABLE
A
illustration #1 illustration #1
SPECIAL NOTES AND INSTRUCTIONS
PART DESCRIPTIONS
A - (3) 31448-102 Picnic Table Support Rail - 2 x 4 x 59-1/4" 31448-102 Picnic Table Support Rail - 2 x 4 x 59-1/4"
B - (4) 31941-102 Table Boards - 5/4 x 6 x 59-1/2" 31941-102 Table Boards - 5/4 x 6 x 59-1/2"
C - (4) 32117-102 Seat Boards - 2 x 6 x 59-1/2" 32117-102 Seat Boards - 2 x 6 x 59-1/2"
D - (1) 31942-102 Table Cleat - 5/4 x 6 x 20-1/4"
(6) 17036-1002 - 5/16 x 2-1/2" Lag Screws
(24) 17020-105 - #10 x 1-1/2" Flat Head Phillips Screw
(16) 17020-109 - #8 x 2-1/2" Flat Head Phillips Screw
(6) 12002-206 - 5/16" Flat Washer
(6) 15081-904 - 1" Hole Cap
2 6 - 3 / 4 "
1 6 - 3 / 4 "
illustration #2
This hole maybe pre-drilled on the
Upright Corner.
illustration #3
