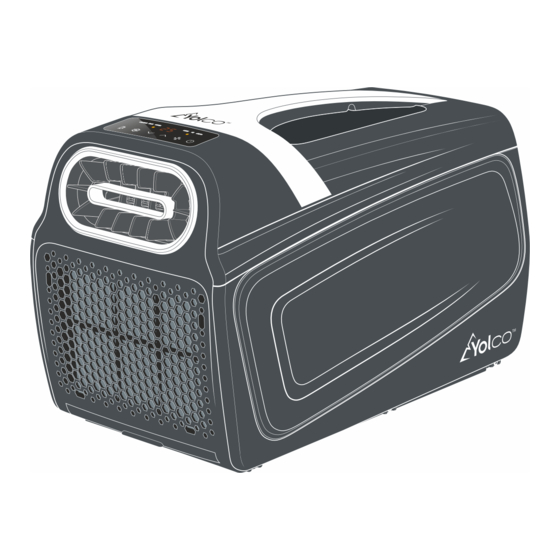

Summary of Contents for Yolco TC290

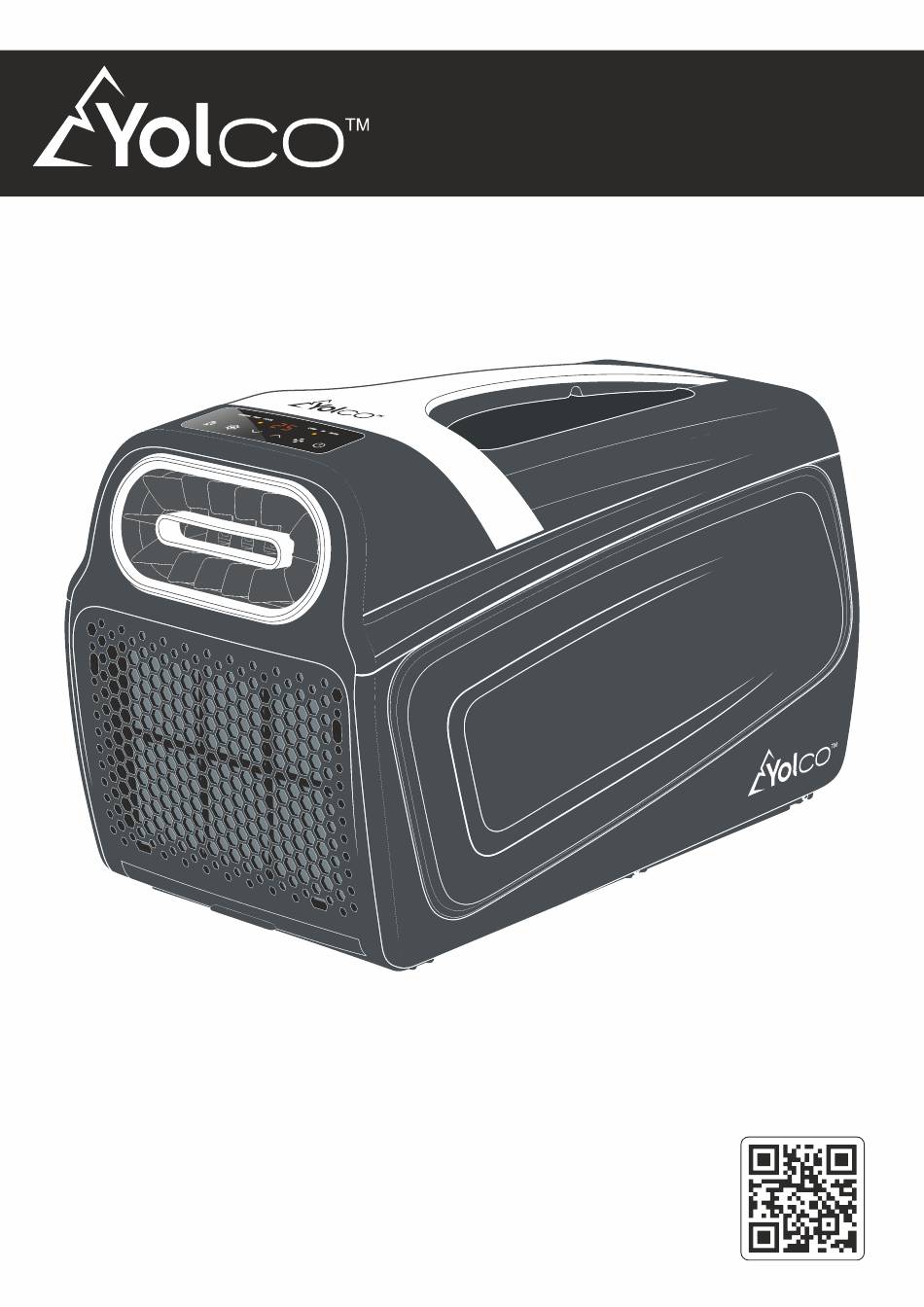

- Page 1 Instrukcja obsługi dostępna również na: PORTABLE User manual also available at: Bedienungsanleitung AIR CONDITIONER erhältlich auch bei: TC290 USER MANUAL...
-
Page 2: Explanation Of Symbols
This information can be found on the nameplate. Accessories, consumables and original spare parts are available at: www.yolco.pl. We recommend using original spare parts. The content of the user manual is subject to change without notice. The latest version is always available at: www.yolco.pl 2. Safety information •... -
Page 3: Product Description
2. Safety information cont. • Do not immerse the device in water or any other liquid. • Do not use or store the device near open flames or other sources of heat. • Do not expose the device to direct sunlight. •... -
Page 4: Directions For Use
5. Directions for use Part description Front view 1. Air filter 2. Front inlet/outlet tube adapter 3. Air inlet 4. Cold air outlet 5. LED display 6. Transport handle Rear view 7. Air filter 8. Water drainage system 9. Rear inlet/outlet tube adapter 10. -
Page 5: Installation Instructions
6. Installation instructions Attention! The unit has pre-installed inlet/outlet tubes and is ready to operate as an outdoor unit. Changing the configuration to an indoor unit requires removing the tubes from the front adapter and installing them on the rear adapter. Removal and reassembly of the inlet/outlet tube To remove the inlet/outlet tube, turn it clockwise several times. -
Page 6: Cleaning And Maintenance
7. Cleaning and maintenance Attention! The cleaning and maintenance process should be carried out with the device disconnected from the power source. • Cleaning the air filters 1. Slide the air filters downwards 2. Wash the filters under running water and let them dry completely 3. - Page 7 10. Instructions for service technicians Information addressed to specialists. They serve only as guidance for qualified personnel. Any person involved in opening or draining the system should have a current and valid certificate confirming their competence to safely handle flammable refrigerants. 1.
- Page 8 10. Instructions for service technicians cont. Leak detection fluids are suitable for use with most refrigerants, but avoid using detergents that contain chlorine, which can react with the refrigerant to corrode copper pipes. If a leak is suspected, remove/extinguish all naked flames. If brazing is required when a leak is detected, completely recover the refrigerant from the system or isolate (using shut-off...
-
Page 9: Additional Information
10. Instructions for service technicians cont. Wiring diagram The electric schematic diagram are subject to change without notice W-M1 D-M1 COMP/T W-M2 IN/H — WATER MOTOR WIFI 630241-DY-371 11. Additional information • Equipment containing flammable refrigerants should be transported in accordance with transport regulations •... -
Page 10: Technical Data
12. Technical data Model TC290 Rated voltage 220-240V, 50Hz Rated current 1.8A Cooling power consumption 416W Standby power consumption 0.5W 21/DRU/23 Cooling performance 1000W Manufacturer: Sound power level (high/low speed) 62/58 dB(A) ARKAS Sp. z o.o. Sound Pressure Level (high/low Speed) 46/42 dB(A) ul.
