OWNER'S MANUAL
SUNSHINE COAST
MODULAR OUTDOOR FURNITURE SYSTEM
COMPONENT: CHAIR
Model: OLSC-121
FMI BRANDS INC.
107 – 19052 26 Avenue, Surrey, BC Canada V3Z 3V7 • www.outlandliving.com
USA, Canada Toll Free: 1-888-514-1663 • Tel: (+1) 778-294-0988 • Email: info@outlandliving.com
Hours of Operation: 8:30AM - 4:00PM (Pacific Time) • Customer Service in English only
® Registered trademark of FMI Brands Inc.
D.121.000.V0

Advertisement

loading
Need help?

Need help?

Do you have a question about the SUNSHINE COAST OLSC-121 and is the answer not in the manual?

Questions and answers

Related Manuals for Outland Living SUNSHINE COAST OLSC-121

Summary of Contents for Outland Living SUNSHINE COAST OLSC-121

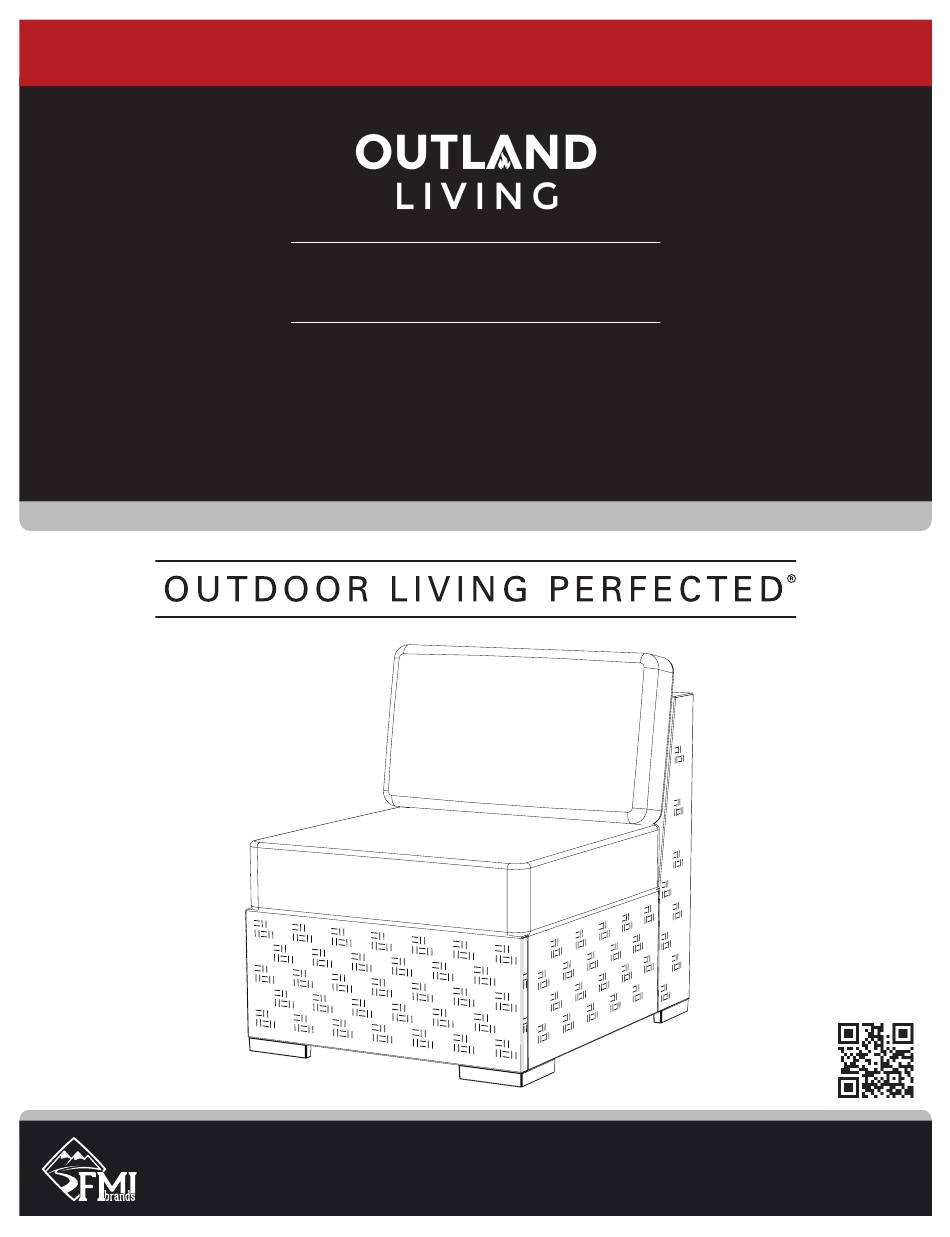

  • Page 1 ® OWNER’S MANUAL SUNSHINE COAST MODULAR OUTDOOR FURNITURE SYSTEM COMPONENT: CHAIR Model: OLSC-121 FMI BRANDS INC. 107 – 19052 26 Avenue, Surrey, BC Canada V3Z 3V7 • www.outlandliving.com USA, Canada Toll Free: 1-888-514-1663 • Tel: (+1) 778-294-0988 • Email: info@outlandliving.com Hours of Operation: 8:30AM - 4:00PM (Pacific Time) •...
  • Page 2 16 +1 Front Panel ¼ - 20 Thread ¼ - 20 Flange Nut 8 +1 Side Panel 5/32” Hex Key Tool Seat Panel En-2 OUTLAND LIVING • SUNSHINE COAST • MODULAR OUTDOOR FURNITURE SYSTEM • CHAIR • OLSC-121 ® D.121.000.V0...
  • Page 3 Required Tools (Not Supplied): WARNING: Scissors Improper assembly, adjustment, alteration, service or maintenance can cause injury or property damage. Read the Owner & Safety Manual instructions thoroughly before assembling or servicing this product. INSTALLER: Leave this manual with the consumer. CONSUMER: Retain this manual for future reference.
  • Page 4 (1x) Front Panel and (2x) Side Panels. (2x) BRACKETS (8x) ¾” LENGTH SCREWS (8x) ¾” LENGTH SCREWS (2x) SIDE PANELS (2x) SIDE PANELS En-4 OUTLAND LIVING • SUNSHINE COAST • MODULAR OUTDOOR FURNITURE SYSTEM • CHAIR • OLSC-121 ® D.121.000.V0...
  • Page 5 SECTION 1: ASSEMBLY (continued) STEP 3 Fasten the (1x) Front Panel to the (2x) Side Panels with (2x) Brackets and (8x) ¾” Length Screws. a) Confirm the feet mounting holes are facing down. b) Confirm the ends and bottom of the Front Panel are squarely aligned with the Side Panels. c) After confirming A &...
  • Page 6 (4x) SEAT SUPPORTS Ensure the ends of the wicker panels are squarely aligned. Firmly tighten the seat support screws. (8x) ¾” LENGTH SCREWS En-6 OUTLAND LIVING • SUNSHINE COAST • MODULAR OUTDOOR FURNITURE SYSTEM • CHAIR • OLSC-121 ® D.121.000.V0...
  • Page 7 SECTION 1: ASSEMBLY (continued) STEP 6 Install the (4x) Feet components using the (16x) 1-½” Length Screws. Ensure the ends of the wicker panels are squarely aligned. Firmly tighten the feet screws. **Reference the installation instruction diagrams below, depending on which Chair configuration you are building. MIDDLE CHAIR FOR COUCH/LOVESEAT and/or SINGLE CHAIR WITHOUT ARMS ARM CHAIR...
  • Page 8 MIDDLE CHAIR FOR COUCH/LOVESEAT and/or ARM CHAIR SINGLE CHAIR WITHOUT ARMS FLIP OVER! HEAVY OBJECT. TWO PERSON LIFT REQUIRED. Note installation location of feet! En-8 OUTLAND LIVING • SUNSHINE COAST • MODULAR OUTDOOR FURNITURE SYSTEM • CHAIR • OLSC-121 ® D.121.000.V0...
  • Page 9 SECTION 1: ASSEMBLY (continued) STEP 8 Lay the Seat Panel onto the Seat Supports. Note: For cushion support, the flat seat strap surface SEAT PANEL should be placed on the top side, so to be in contact with the cushion bottom. STEP 9 Place the Seat Cushion and Back Cushion.
  • Page 10 TIP: USE THE HEX KEY TOOL AS A GUIDE FOR PUSHING THE SCREW THROUGH THE HOLES. **See diagrams on next page. (4x) 1” LENGTH SCREW En-10 OUTLAND LIVING • SUNSHINE COAST • MODULAR OUTDOOR FURNITURE SYSTEM • CHAIR • OLSC-121 ® D.121.000.V0...
  • Page 11 SECTION 2: SECTIONAL FASTENING (continued) TIP: THE HEX KEY TOOL CAN BE USED AS A GUIDE TO PUSH THE SCREW THROUGH THE HOLES IN THE WICKER PANELS. a) Wiggle the Hex Key Tool through the gaps in the wicker between both panels; b) Align the tip of the screw with the end of the Hex Key Tool;...
  • Page 12 SECTIONAL FASTENING (continued) STEP 1B (4x) FLANGE NUT Lock together using (4x) Flange Nuts. Tighten with the Hex Key Tool. (4x) FLANGE NUT En-12 OUTLAND LIVING • SUNSHINE COAST • MODULAR OUTDOOR FURNITURE SYSTEM • CHAIR • OLSC-121 ® D.121.000.V0...
  • Page 13 SECTION 2: SECTIONAL FASTENING (continued) Arrange the different sections together in your preferred layout. One such layout option is shown here. There is no limit to what you can build! Additional modular components can be ordered from www.outlandliving.com. En-13 1-888-514-1663 • WWW.OUTLANDLIVING.COM...

  • Page 14: Maintenance

    Owner & Safety Manual ® SECTION 3: MAINTENANCE OUTLAND LIVING Outdoor Furniture is meant for outdoor use ATTENTION: and requires periodic maintenance to keep it in good condition. The cushions will be wrinkled when freshly released from The all-weather resin wicker weave is made from 100% new the vacuum pack bags.

  • Page 15: Warning Notes

    At FMI Brands Inc.’s sole discretion, products under warranty will be repaired and/or replaced at no charge to the customer. Any returns sent back to FMI Brands Inc. must be sent via prepaid freight and in the original retail packaging. Please register your OUTLAND Living product for proof of purchase and warranty at: https://outlandliving.com/register-products/.
  • Page 16 Simply call us or send an email to info@outlandliving.com and we will answer all DO NOT questions and/or concerns that you may have. RETURN We take pride in our products at FMI Brands Inc. (Outland Living) and will strive to TO STORE provide excellent customer support. FMI BRANDS INC.
