Model 378A12

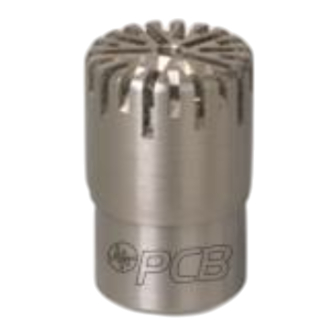

Precision Condenser Microphone
Installation and Operating Manual
This manual contains the 377A12, 426B03 installation and operating manuals that
comprise a Model 378A12 Precision Condenser Microphone kit.
For assistance with the operation of this product,
contact PCB Piezotronics, Inc.
Toll-free: 800-828-8840
24-hour SensorLine: 716-684-0001
Fax: 716-684-0987
E-mail: info@pcb.com
Web: www.pcb.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PCB Piezotronics 377A12
Summary of Contents for PCB Piezotronics 377A12
- Page 1 Model 378A12 Precision Condenser Microphone Installation and Operating Manual This manual contains the 377A12, 426B03 installation and operating manuals that comprise a Model 378A12 Precision Condenser Microphone kit. For assistance with the operation of this product, contact PCB Piezotronics, Inc.
- Page 2 Returning Equipment – Following the equipment to PCB Piezotronics for these procedures will insure that your repair. User servicing or repair is not returned materials are handled in the recommended and, if attempted, may most expedient manner.
- Page 3 PCB Piezotronics, Inc. Warranty – All equipment and repair 3425 Walden Ave. services provided by PCB Piezotronics, Depew, NY 14043 USA Inc. are covered by a limited warranty Toll-free: (800) 828-8840 against defective...
- Page 4 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. ADDED ADDITIONAL VENT HOLE 43127 .28 [7.0] MICROPHONE CARTRIDGE .41 [10.4]...
- Page 5 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. ADDED ADDITIONAL VENT HOLE 43127 .28 [7.0] MICROPHONE CARTRIDGE .41 [10.4]...
- Page 6 Model 377A12 Precision Condenser Microphone Installation and Operating Manual For assistance with the operation of this product, contact PCB Piezotronics, Inc. Toll-free: 800-828-8840 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com Web: www.pcb.com...
- Page 7 Returning Equipment – Following the equipment to PCB Piezotronics for these procedures will insure that your repair. User servicing or repair is not returned materials are handled in the recommended and, if attempted, may most expedient manner.
- Page 8 PCB Piezotronics, Inc. Warranty – All equipment and repair 3425 Walden Ave. services provided by PCB Piezotronics, Depew, NY 14043 USA Inc. are covered by a limited warranty Toll-free: (800) 828-8840 against defective...
-
Page 13: Supplied Accessories
Model Number Revision: D PRECISION CONDENSER MICROPHONE 377A12 ECN #: 42896 Performance ENGLISH OPTIONAL VERSIONS Nominal Microphone Diameter 1/4" 1/4" Optional versions have identical specifications and accessories as listed for the standard model Frequency Response Characteristic Pressure Pressure except where noted below. More than one option may be used. - Page 15 Model 426B03 Microphone Preamplifier Installation and Operating Manual For assistance with the operation of this product, contact PCB Piezotronics, Inc. Toll-free: 800-828-8840 24-hour SensorLine: 716-684-0001 Fax: 716-684-0987 E-mail: info@pcb.com Web: www.pcb.com...
- Page 16 Returning Equipment – Following the equipment to PCB Piezotronics for these procedures will insure that your repair. User servicing or repair is not returned materials are handled in the recommended and, if attempted, may most expedient manner.
- Page 17 PCB Piezotronics, Inc. Warranty – All equipment and repair 3425 Walden Ave. services provided by PCB Piezotronics, Depew, NY 14043 USA Inc. are covered by a limited warranty Toll-free: (800) 828-8840 against defective...
-
Page 22: Microphone Preamplifier
Model Number Revision: D MICROPHONE PREAMPLIFIER 426B03 ECN #: 42966 Performance ENGLISH OPTIONAL VERSIONS Nominal Microphone Diameter 1/4" 1/4" Optional versions have identical specifications and accessories as listed for the standard model [1][2] Gain -0.19 dB -0.19 dB except where noted below. More than one option may be used. Frequency Response(±... - Page 23 PCB Piezotronics Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others DESCRIPTION without the written consent of PCB Piezotronics Inc. ADDED ADDITIONAL VENT HOLE 43127 .25 [6.4] 0.2244-60 UNS - 2A...
