Related Manuals for Insignia NS-HTTCFB8
Summary of Contents for Insignia NS-HTTCFB8

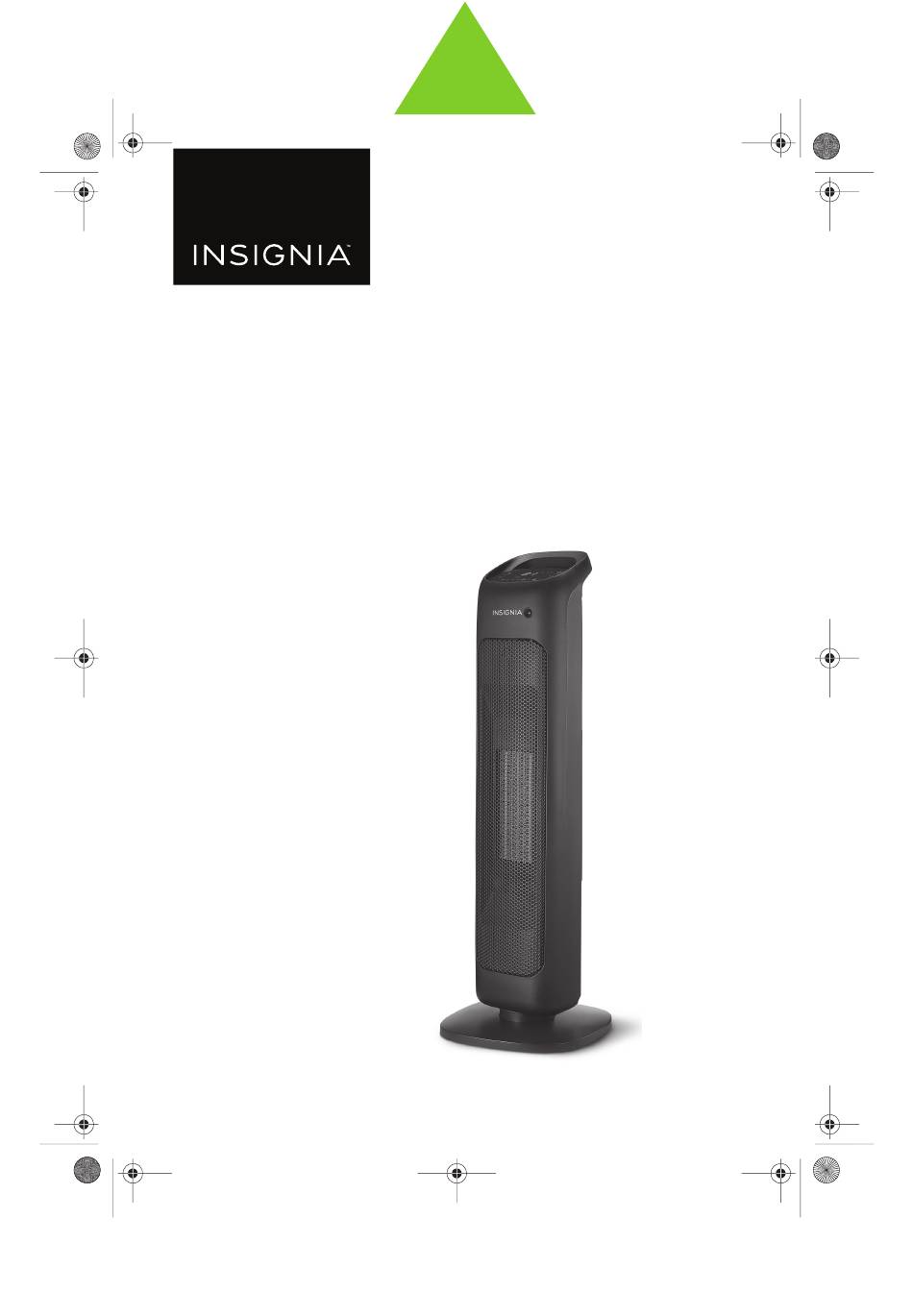

- Page 1 FINAL FOR PRINT NS-HTTCFB8_17-0321_MAN_V1_ENG.fm Page 1 Thursday, June 15, 2017 2:09 PM USER GUIDE Ceramic Tower Heater NS-HTTCFB8 Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
ONE-YEAR LIMITED WARRANTY ........14 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-HTTCFB8 represents the state of the art in ceramic heater design and is designed for reliable and trouble-free performance. www.insigniaproducts.com... -
Page 3: Important Instructions
NS-HTTCFB8_17-0321_MAN_V1_ENG.fm Page 3 Thursday, June 15, 2017 2:09 PM Ceramic Tower Heater IMPORTANT INSTRUCTIONS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your heater. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your heater. - Page 4 NS-HTTCFB8_17-0321_MAN_V1_ENG.fm Page 4 Thursday, June 15, 2017 2:09 PM NS-HTTCFB8 11 Prior to cleaning or other maintenance, the heater must be disconnected from the wall outlet. 12 Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
-
Page 5: Features
NS-HTTCFB8_17-0321_MAN_V1_ENG.fm Page 5 Thursday, June 15, 2017 2:09 PM Ceramic Tower Heater 26 If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. 27 The heater must not be located immediately below a socket-outlet. 28 Do not use this heater near a bath, a shower, or a swimming pool. -
Page 6: Main Features
NS-HTTCFB8_17-0321_MAN_V1_ENG.fm Page 6 Thursday, June 15, 2017 2:09 PM NS-HTTCFB8 Main features Handle Control panel Body sensor Remote control shelf Filter frame with Filter Filter cover filter attached The filter cover and filter come pre-installed in the heater. Base Display/control panel... -
Page 7: Remote Control
NS-HTTCFB8_17-0321_MAN_V1_ENG.fm Page 7 Thursday, June 15, 2017 2:09 PM Ceramic Tower Heater Remote control Mode button Power button Set button Swing button ECO button Timer and Temp + (up) and - (down) buttons Body sensor button Assembling your heater 1 Remove the package contents from the box, then remove the bubble wrap from the heater, the base, and the remote control. -
Page 8: Using Your Heater
NS-HTTCFB8_17-0321_MAN_V1_ENG.fm Page 8 Thursday, June 15, 2017 2:09 PM NS-HTTCFB8 4 Fit the bottom of the heater into the base until it snaps into place. 5 Place the heater upright on a stable and level surface. Using your heater Caution Never leave an operating heater unattended. -
Page 9: Increasing Or Decreasing The Temperature Setting
NS-HTTCFB8_17-0321_MAN_V1_ENG.fm Page 9 Thursday, June 15, 2017 2:09 PM Ceramic Tower Heater 4 Press the power button to turn the heater on. The display shows the current room temperature in °F with the °F icon turned on. The default temperature setting is 77° F and the heater is on low power with the low power indicator on. -
Page 10: Using Eco Mode
NS-HTTCFB8_17-0321_MAN_V1_ENG.fm Page 10 Thursday, June 15, 2017 2:09 PM NS-HTTCFB8 Using ECO mode In ECO mode, the heater automatically adjusts the mode according to the room temperature. When the room temperature is below 64° F, the heater operates in high power mode. When the room temperature is above 64° F and below 72°... -
Page 11: Cleaning And Maintaining Your Heater
NS-HTTCFB8_17-0321_MAN_V1_ENG.fm Page 11 Thursday, June 15, 2017 2:09 PM Ceramic Tower Heater Cleaning and maintaining your heater • Always remove the plug from the wall socket and allow the heater to cool before cleaning. • Wipe the heater with a soft, damp cloth. Use a mild detergent if necessary. -
Page 12: Replacing Your Remote Control Battery
NS-HTTCFB8_17-0321_MAN_V1_ENG.fm Page 12 Thursday, June 15, 2017 2:09 PM NS-HTTCFB8 Replacing your remote control battery 1 Squeeze then pull the battery holder out of the remote control. Squeeze together then pull out. Squeeze together then pull out. 2 Insert the battery into the battery holder with the positive (+) side toward the front of the remote control. -
Page 13: Troubleshooting
• Close the window. The temperature is set too low. • Increase the temperature setting. The power setting is too low. • Select a higher power setting. Specifications Model number NS-HTTCFB8 Voltage 120 VAC Frequency 60 Hz Power 1500 Watts ≤... -
Page 14: One-Year Limited Warranty
Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 15 Damage due to incorrect operation or maintenance • Connection to an incorrect voltage or power supply • Attempted repair by any person not authorized by Insignia to service the Product • Products sold “as is” or “with all faults” •...
- Page 16 NS-HTTCFB8_17-0321_MAN_V1_ENG.fm Page 16 Thursday, June 15, 2017 2:09 PM www.insigniaproducts.com 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC V1 ENGLISH 7601 Penn Ave South, Richfield, MN 55423 U.S.A.
