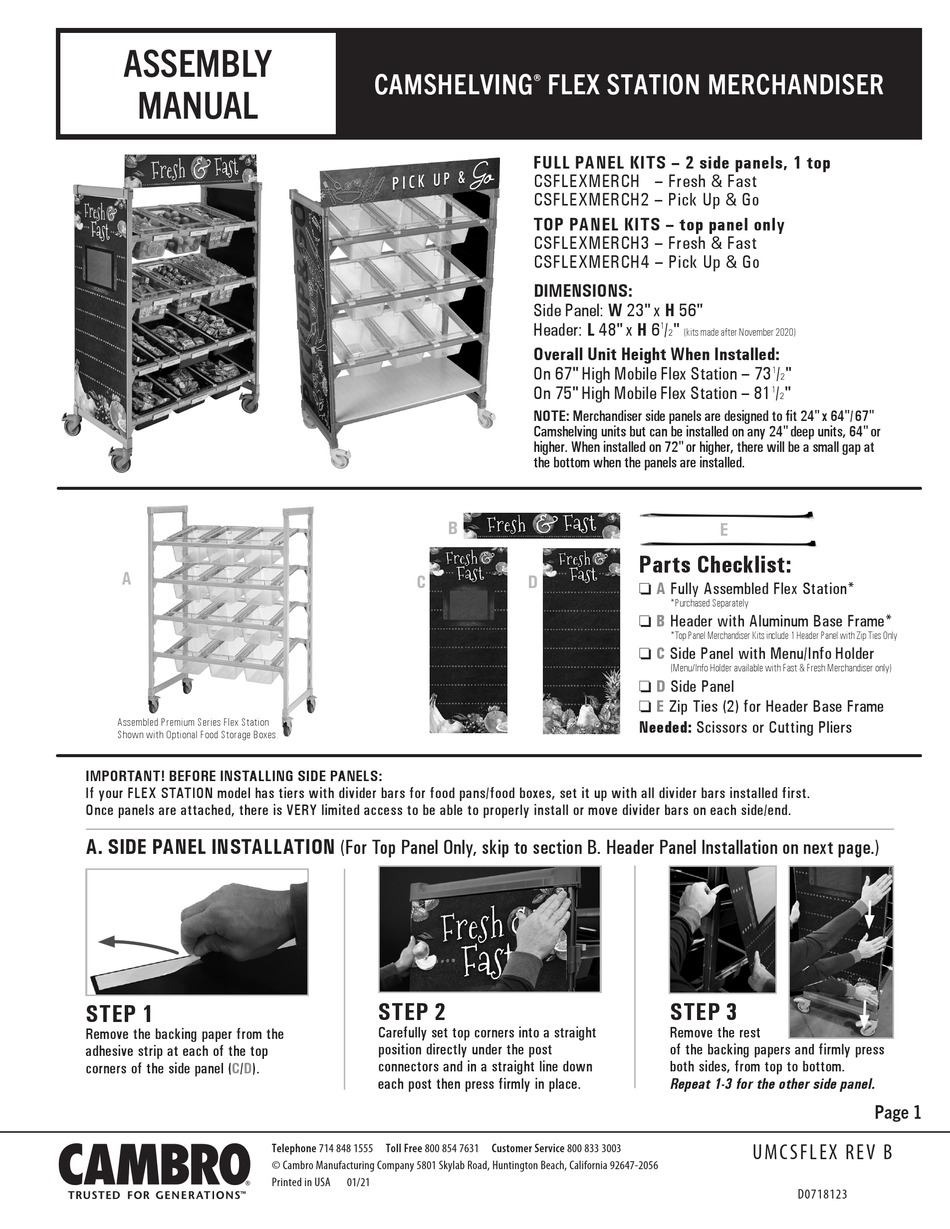

Cambro CAMSHELVING CSFLEXMERCH2 Assembly Manual

ASSEMBLY
MANUAL
A
Assembled Premium Series Flex Station
Shown with Optional Food Storage Boxes.
IMPORTANT! BEFORE INSTALLING SIDE PANELS:
If your FLEX STATION model has tiers with divider bars for food pans/food boxes, set it up with all divider bars installed first.
Once panels are attached, there is VERY limited access to be able to properly install or move divider bars on each side/end.

A. SIDE PANEL INSTALLATION

STEP 1
Remove the backing paper from the
adhesive strip at each of the top
corners of the side panel (C/D).
CAMSHELVING
B
C
(For Top Panel Only, skip to section B. Header Panel Installation on next page.)
STEP 2
Carefully set top corners into a straight
position directly under the post
connectors and in a straight line down
each post then press firmly in place.
Telephone 714 848 1555 Toll Free 800 854 7631 Customer Service 800 833 3003
© Cambro Manufacturing Company 5801 Skylab Road, Huntington Beach, California 92647-2056
Printed in USA 01/21
FLEX STATION MERCHANDISER
®
FULL PANEL KITS – 2 side panels, 1 top
CSFLEXMERCH – Fresh & Fast
CSFLEXMERCH2 – Pick Up & Go
TOP PANEL KITS – top panel only
CSFLEXMERCH3 – Fresh & Fast
CSFLEXMERCH4 – Pick Up & Go
DIMENSIONS:
Side Panel: W 23" x H 56"
Header: L 48" x H 6 / "
1
(kits made after November 2020)
2
Overall Unit Height When Installed:
On 67" High Mobile Flex Station – 73
On 75" High Mobile Flex Station – 81
NOTE: Merchandiser side panels are designed to fit 24" x 64"/67"
Camshelving units but can be installed on any 24" deep units, 64" or
higher. When installed on 72" or higher, there will be a small gap at
the bottom when the panels are installed.
Parts Checklist:
D
A Fully Assembled Flex Station*
o
*Purchased Separately
B
Header with Aluminum Base Frame*
o
*Top Panel Merchandiser Kits include 1 Header Panel with Zip Ties Only
C Side Panel with Menu/Info Holder
o
(Menu/Info Holder available with Fast & Fresh Merchandiser only)
D Side Panel
o
E Zip Ties (2) for Header Base Frame
o
Needed: Scissors or Cutting Pliers
STEP 3
Remove the rest
of the backing papers and firmly press
both sides, from top to bottom.
Repeat 1-3 for the other side panel.
/ "
1
2
/ "
1
2
E
