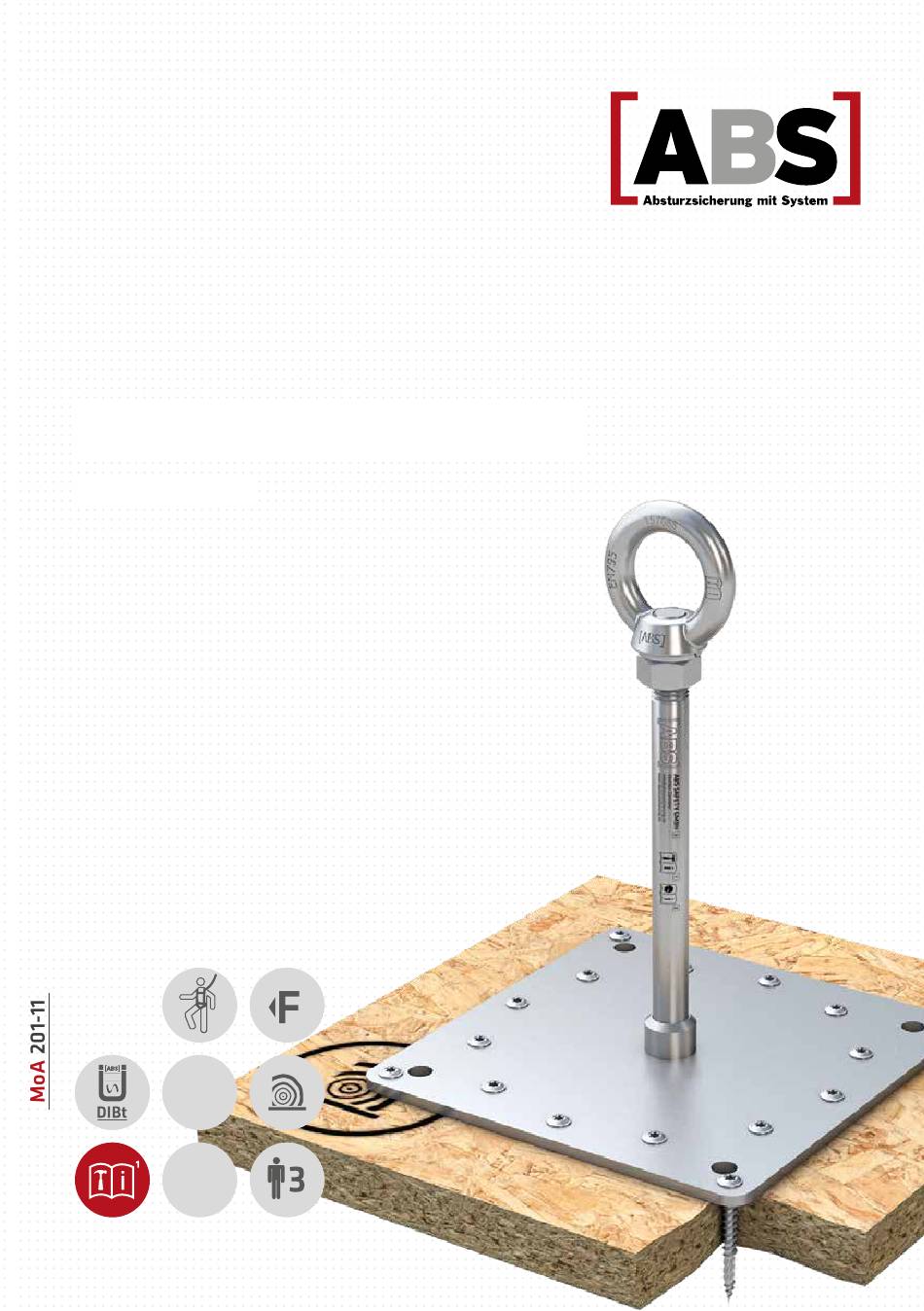

- Page 1 ABS-Lock® X-H-16 LX-H-XXX-16 Z-14.9-688 DIN CEN/TS 16415:2017 DIN EN 795: 2012, A...
- Page 2 For a proper installation, a complete documentation of assemly is absolutely necessary. Kontakte | Contact persons Mustertypenschild | Sample label Vertrieb & Technische Beratung ABS SAFETY GMBH Sales & Technical Support Kevelaer, Germany +49 (0) 28 32 - 972 81 - 0 info@absturzsicherung.de...
- Page 3 ABS-Lock® X-H-16 LX-H-XXX-16 Inhalt | Content ABS-Lock X-H-16 ABS-Lock X-H-16...
- Page 4 Montageschritte dokumentieren Document assembly step Dokumentation mit Bildern vervollständigen! Complete your documentation using pictures!
- Page 5 lock-book.com...
- Page 6 ABS-Lock® X-H-16 Montage nach abZ (in Deutschland zu beachten) Z-14.9-688 Installation according to abZ (Observe in Germany) LX-H-XXX-16 150 – 600 min. min. OPTIONAL max. min. OSB 3 Montage ab Seite 8...
- Page 7 Montage nach abZ (in Deutschland zu beachten) ABS-Lock® X-H-16 Z-14.9-688 Installation according to abZ (Observe in Germany) LX-H-XXX-16 13,5 min. 67,5 min. min. Falls nicht vorhanden min. ASSY 3.0 Edelstahl A2 Vollgewinde Senkkopf AW - (ETA - 11/0190) Montage ab Seite 8...
- Page 8 ABS-Lock® X-H-16 Montage nach EN 795:2012 DIN EN 795 Installation according to EN 795:2012 LX-H-XXX-16 min. min. OPTIONAL OSB 3 ≥ 12 12 13 Holz/Wood ≥ 20 max. OSB 3...
- Page 9 ABS-Lock® X-H-16 LX-H-XXX-16 70 Nm...
- Page 10 ABS-Lock® X-H-16 Montage nach abZ (in Deutschland zu beachten) Z-14.9-688 Installation according to abZ (Observe in Germany) LX-H-XXX-16 min. min. min. OPTIONAL max. OSB 3 Rauspund min. min. Montage ab Seite 12...
- Page 11 Montage nach abZ (in Deutschland zu beachten) ABS-Lock® X-H-16 Z-14.9-688 Installation according to abZ (Observe in Germany) LX-H-XXX-16 Spax 4,5 x 50 oder gleichwertig Schalung Nägel 2,8 x 65 a| 100 - 120 mm = min. 2 x a| 120 - 220 mm = min.
- Page 12 12 | ABS-Lock® X-H-16 LX-H-XXX-16 ≥ 12 ≥ 20 OPTIONAL max. OSB 3 min. OSB 3 Optional ZU-OSB-500X500X12...
- Page 13 ABS-Lock® X-H-16 LX-H-XXX-16...
- Page 14 14 | ABS-Lock® X-H-16 LX-H-XXX-16 70 Nm...
- Page 15 Scribbles & Notes | 15...
- Page 16 ABS Safety GmbH Gewerbering 3 D-47623 Kevelaer Germany Tel.: +49 28 32 972 81 - 0 Fax: +49 28 32 972 81 - 285 info@absturzsicherung.de www.absturzsicherung.de .de/en .de/fr .de/nl instagram.com/abssafety youtube.com/abssafetygmbh facebook.com/ABS.Safety...
