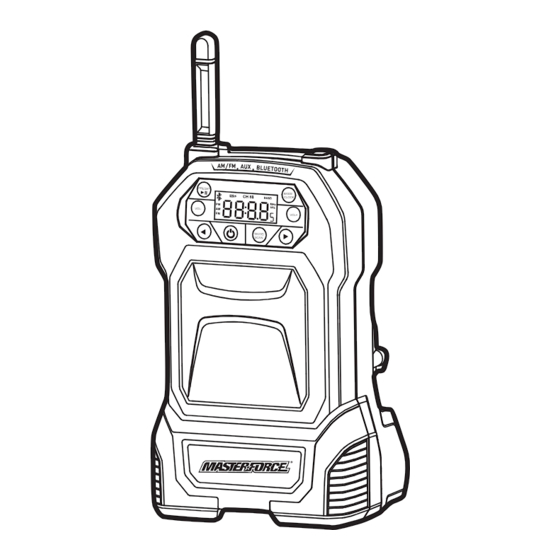

Radio with Bluetooth
CAUTION: To Reduce the Risk of Injury, User Must Read
and Understand Operator's Manual. Save These Instructions
For Future Reference.
For questions / comments, technical assistance or repair parts –
Please Call Toll Free: 1-866-917-4374. (M-F 8:30am-5:00pm Est.)
MODEL: OB20RDB
VOL-
241-0446
OPERATOR'S MANUAL
BASS/
CLOCK
VOL+
MO DE/
SCA N
Advertisement
Related Manuals for Master Forge OB20RDB
Summary of Contents for Master Forge OB20RDB
- Page 1 Radio with Bluetooth MODEL: OB20RDB BASS/ CLOCK VOL- VOL+ MO DE/ SCA N 241-0446 OPERATOR’S MANUAL CAUTION: To Reduce the Risk of Injury, User Must Read and Understand Operator’s Manual. Save These Instructions For Future Reference. For questions / comments, technical assistance or repair parts –...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Symbols ............Page 2 Safety Instructions . -
Page 3: Safety Symbols
SAFETY SYMBOLS Some of these following symbols may be used on this tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and more safely. Symbol Designation / Explanation Name Volts Voltage... -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols and the explanations with them deserve your careful attention and understanding. The symbol warnings do not, by themselves, eliminate any danger. The instructions and warnings they give are no substitutes for proper accident prevention measures. - Page 5 SAFETY INSTRUCTIONS 2. Do not use on a ladder or unstable WARNING: Read all safety support. Stable footing on a solid surface warnings and instructions! enables better control of the product in Failure to follow the warnings and instructions unexpected situations. may result in electric shock, fire and/or serious injury.
- Page 6 SAFETY INSTRUCTIONS SERVICE 6. Do not charge battery product in a damp or wet location. Following this rule will reduce the risk of electric shock. 1. Have your power tool serviced by a 7. Under extreme usage or temperature qualified repair person using only identical conditions, battery leakage may occur.
- Page 7 SAFETY INSTRUCTIONS FCC STATEMENT RF warning statement: The device has been evaluated to meet general RF exposure requirement. The 1. This device complies with Part 15 of device can be used in portable exposure the FCC Rules. Operation is subject to the condition without restriction.
-
Page 8: Overview/Specifications
OVERVIEW Antenna BASS/ CLOCK VOL- VOL+ MOD E/ SCA N LCD display Retainer strap Integrated auxiliary cable USB output power port Preset/Play/Pause button Bass/Clock button Battery port CH 88 BASS Volume Down Volume Up button button SCAN Tune/Seek down button Tune/Seek ON/OFF Mode/Scan... -
Page 9: Assembly
SPECIFICATIONS AM Tuner 530-1710 KHz FM Tuner 87.5-108 MHz Auxiliary Cable 3.5 mm plug USB Output Charge Port 5V DC, 1 A (max) Weight (without battery) 1 lbs. 8 oz. Compatible Battery Packs 252-8027 252-8029 252-8030 252-8031 252-8034 252-8035 Battery Chargers 252-8025, 252-8026, 252-8036, 252-8037, 252-8044 ASSEMBLY... -
Page 10: Operation
OPERATION TO INSTALL/REMOVE TO INSTALL/REMOVE 18/20V AAA BATTERIES BATTERY PACK It is advisable to write down stored To install: frequencies before replacing the AAA 1. Place the battery pack in the radio, batteries if, at the time of AAA battery aligning the raised rib on the battery replacement, the 18/20V battery pack pack with the groove in the radio’s... - Page 11 OPERATION ADJUSTING THE VOLUME CHANGING CHANNELS When the radio is turned ON, it will initially buttons are used to manually tune return to the last volume setting used. to the desired radio frequency. The selected frequency is displayed on the digital display. NOTICE: If both 18/20V battery pack and AAA batteries are removed from the radio To use tune feature:...
- Page 12 OPERATION STORING A PRESET IN MEMORY 3. Press the BASS/CLOCK button quickly. The number representing the minutes will blink on and off. The memory feature saves up to 40 4. Press the button to set the frequencies as presets in the radio’s minutes.
- Page 13 OPERATION PAIRING A BLUETOOTH 3. “ ” will stop flashing to indicate that ENABLED DEVICE pairing was successful. 4. After successfully pairing, you can begin 1. Select Bluetooth mode; refer playing music from your Bluetooth MODE SELECTION. The logo “ ”...
-
Page 14: Maintenance
MAINTENANCE WARNING: WARNING: To avoid serious Avoid using solvents personal injury, always remove the battery when cleaning plastic parts. Most plastics pack from the radio when cleaning or are susceptible to damage from various performing any maintenance. Contact a types of commercial solvents and may be qualified service technician for all repairs. -
Page 15: Warranty
CORDLESS JOBSITE RADIO WARRANTY 90-DAY MONEY BACK GUARANTEE: This MASTERFORCE® brand power tool carries our 90-DAY Money Back Guarantee. If you are not completely satisfied with your MASTERFORCE® brand power tool for any reason within ninety (90) days from the date of purchase, return the tool with your original receipt to any MENARDS®... - Page 16 © 2015 Menard, Inc., Eau Claire, WI 54703 06/2015...
