Intex 128454GN Owner's Manual
  1. Manuals
  2. Brands
  3. Intex Manuals
  4. Swimming Pool
  5. 128454GN
  6. Owner's manual

Intex 128454GN Owner's Manual

Jet & bubble deluxe octagon 201 x 71 cm
Hide thumbs Also See for 128454GN:
Table of Contents

Advertisement

Quick Links

Download this manual
Zusammengeführte PDF Datei. Die Originale sind im folgenden Verzeichnis verlinkt. / Merged PDF File. Original files are linked in the following list. / Sloučený soubor PDF.
Originály jsou propojeny v následujícím adresáři. / Egyesített PDF fájl. Az eredetiek a következő könyvtárban találhatók. / Zlúčený súbor PDF. Originály sú prepojené v
nasledujúcom adresári. / Združena datoteka PDF. Izvirniki so povezani v naslednjem imeniku. / Spojena PDF datoteka. Izvornici su povezani u sljedećem imeniku.

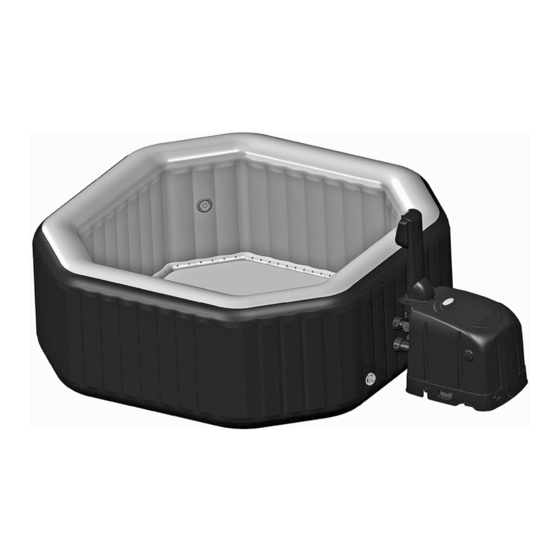

128454GN - PureSpa Jet & Bubble Deluxe Octagon Ø
201 x 71 cm
299IO
SPA Headrest
Service Center
Repair Kit
1510
Setup Video
2
31
37
39
40
42

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 128454GN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intex 128454GN

Summary of Contents for Intex 128454GN

  • Page 1 Originály jsou propojeny v následujícím adresáři. / Egyesített PDF fájl. Az eredetiek a következő könyvtárban találhatók. / Zlúčený súbor PDF. Originály sú prepojené v nasledujúcom adresári. / Združena datoteka PDF. Izvirniki so povezani v naslednjem imeniku. / Spojena PDF datoteka. Izvornici su povezani u sljedećem imeniku. 128454GN - PureSpa Jet & Bubble Deluxe Octagon Ø 201 x 71 cm...
  • Page 2 Ländern der Welt in Lizenz von/Intex Marketing Ltd. to/à/a/an Intex Development Co. Ltd., G.P.O Box 28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V., Venneveld 9, 4705 RR Roosendaal –...

  • Page 3: Table Of Contents

    (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English TABLE OF CONTENTS Warning..................3-6 Parts....................Product Information & Specifications........Set-up..................... 9-13 Salt Level Information..............Operation..................15-16 LED Code Chart................Minimize Heat Loss and Energy Consumption Advice.... Maintenance and Chemicals............

  • Page 4: Warning

    (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English IMPORTANT SAFETY RULES When installing and using this electrical equipment, basic safety precautions should always be followed, including the following. READ AND FOLLOW ALL INSTRUCTIONS DANGER • Risk of Accidental Drowning (especially children under 5 years). Caution shall be exercised to prevent unauthorized access to spa by children.
  • Page 5 (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English WARNING c) The user should check the water temperature before entering the spa. d) The use of alcohol, drugs, or medication before or during spa use may lead to unconsciousness with the possibility of drowning.
  • Page 6 • Do not allow the water in the spa to freeze. Do not turn on the spa when the water is frozen. • Do not use the spa if damaged in delivery and/or malfunctioning in any fashion. Contact the Intex service center for further direction.
  • Page 7 (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English WARNING • Barriers, covers, alarms, or similar safety devices are helpful aids, but they are not substitutes for continuous and competent adult supervision. Safety equipment • Keep a working phone and a list of emergency phone numbers near the spa. Safe use of the spa •...

  • Page 8: Parts

    (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English PARTS Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale. S AVE THESE INSTRUCTIONS Page 7...
  • Page 9 (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English PARTS (continued) Before assembling your product, please take a few minutes to check the contents and become familiar with all the parts. PART NO. REF. NO. DESCRIPTION QTY.

  • Page 10: Product Information & Specifications

    (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English PRODUCT SPECIFICATIONS Voltage / Frequency / Phase 220 – 240 V / 50 Hz / 1 PH Maximum seating capacity: 4 adults 6 adults Water capacity: 210 gal (795 L) 290 gal (1098 L) Inner/outer diameter: 59/79 in (150/201 cm)
  • Page 11 Lay out all the parts on the ground and make sure all the parts are accounted for. For missing or damaged parts contact the appropriate Intex Service Center listed in the separate “Authorized service Centers” sheet. Spa Control Unit Assembly Connect the control panel (3) cable plug into the receptacle on top of the spa control base and screw in the plug cover firmly by hand (see drawing 1).
  • Page 12 (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English SET UP (continued) Unscrew the control base inflation cap (9) to reveal the air blower inflation outlet, insert one end of the inflation hose (7) into the outlet and turn to the right to lock it (see drawing 3). Unscrew the air valve cap to reveal the stem in the up position for inflation. Insert the other end of the inflation hose (7) into the valve and turn to the right to lock it in position (see drawing 4). Press the button to turn on the control unit panel buttons first. Press the button to inflate the spa tub...
  • Page 13 (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English SET UP (continued) IMPORTANT The spa tub inflation/deflation valve incorporates an “air pressure release” function that automatically releases excess air when the spa tub internal pressure is between 1.5 - 2.5 psi (0.103 - 0.172 bar). Air pressure release valve. Inflation of spa in the morning.
  • Page 14 (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English SET UP (continued) Spa Control Unit Installation Connect the spa control unit to the spa tub (see drawing 9). Hand-tighten the connectors securely. Do not use tools to tighten. CAUTION: Do not sit, lean, cover or place any objects over the spa control unit.

  • Page 15: Salt Level Information

    (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English SALT LEVEL INFORMATION The spa comes with a built-in saltwater sanitation system. Common salt (sodium chloride) is made up of two elements, sodium and chloride. During the installation of the device, a measured quantity of salt is dissolved in the SPA water to make it slightly salty.

  • Page 16: Operation

    (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English OPERATION SPA CONTROL UNIT PANEL A: Heat Button B: Celsius/Fahrenheit Toggle Button C: Temperature Increase Button D: Temperature Decrease Button E: Water Filter Button F: Water Jet Button G: Sanitizer button H: LED Display I: On/Off Button...
  • Page 17 (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English SANITATION SYSTEM OPERATING INSTRUCTIONS 1. Activate the sanitation system: Press the sanitizer button on the control panel, this will activate the sanitation system as well as the filter pump. The sanitizer icon and the filter icon turn green. Flashing code “003H” appears on the control panel’s LED, indicating that the unit is ready to be programmed.

  • Page 18: Led Code Chart

    (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English LED CODE CHART LED Reading Definitions 001H Operating Hour (1 hour remaining) 002H Operating Hours (2 hours remaining) 003H Operating Hours (3 hours remaining) 004H Operating Hours (4 hours remaining) 005H Operating Hours (5 hours remaining) 006H...

  • Page 19: Maintenance And Chemicals

    Do not add chemicals if the spa is occupied. This can cause skin or eye irritation. Concentrated chlorine solutions can damage the spa tub. In no event is Intex Recreation Corp., Intex Development Co. Ltd., their related companies, authorized agents and service centers, retailers or employees liable to the buyer or any other party for costs associated with the loss of spa water, chemicals or water damage.
  • Page 20 (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English SPA WATER CHEMISTRY AND BALANCE (continued) Particular care should be taken with chemical treatment of the water with special attention to disinfectant limits and control of pH values. The use of ozone or UV, where applicable, shall always be accompanied by residual disinfection with an oxidising biocide (e.g.
  • Page 21 (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English SPA WATER CHEMISTRY AND BALANCE (continued) SPA Water Adjustment How to adjust the spa water chemistry when the levels are off the range. CAUTION: Always follow the chemical manufacturer’s directions, and the health and hazard warnings.
  • Page 22 (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English MAINTENANCE Maintenance of Spa Water and Cartridge Protect all the spa occupants from possible water-related illnesses by keeping the spa water clean and sanitized. Always practice good hygiene. To ensure proper spa water quality follow these procedures: 1. Inspect and clean the filter cartridge every day, and change the filter cartridge every 3 days.
  • Page 23 Reverse the above steps to reinstall the electrolytic cell. NOTE: Ensure the notch on the electrolytic cell is aligned with the ridge on the electrolytic cell housing. INTEX ® TEST STRIPS (PACKED WITH THE PRODUCT) The Test Strips can test the “Free Chlorine”, “pH”, “Total Alkalinity”...
  • Page 24 (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English MAINTENANCE (continued) Spa Tub Drainage Turn off and unplug the spa control unit. Connect the drain valve adaptor to a garden hose and point the other end of the garden hose to a suitable draining area (see drawing 12).

  • Page 25: Storage

    (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English MAINTENANCE (continued) Spa Surround Barefoot areas and relaxing areas around the spa shall be cleaned on a regular basis. No cleaning water may flow into the spa or spa water cycle. The dirt and cleaning agents shall be rinsed carefully to drain in the spa surround. Spa Tub and Cover Air Bladder Repair Use the enclosed repair patch to repair any puncture: •...

  • Page 26: Troubleshooting

    • Turn off and unplug the spa. Let it cool down and DOES NOT WORK restart all over again. • If problem persists contact Intex Service Center. JETS OUTPUT ARE • Low water level. • Add water between MIN and MAX level.
  • Page 27 • Turn off and unplug the spa. Let it cool down and BLOWER DOES NOT restart all over again. WORK • If problem persists contact Intex Service Center. IMPORTANT If you continue to experience difficulty, please contact our Consumer Service Department for assistance. See separate “Authorized Service Centers” sheet.
  • Page 28 • Electrolytic cell cord is loose. • Add salt. See “Salt Level Information”. • Possible electrolytic cell failure. • Ensure that the cell cord is plugged firmly into the cell receptacle. • Contact Intex Service Center. Replace the cell if needed. • High salt level. • Partially drain the pool and refill it with fresh water. See “Salt Level Information”. • Water temperature too low.

  • Page 29: Filter Pump Motor Disassembly

    (299IO) SPA (JET + BUBBLE) ENGLISH 7.5” X 10.3” PANTONE 295U 08/20/2018 English FILTER PUMP MOTOR DISASSEMBLY If there is a need to replace the filter motor (for qualified technician only), follow below steps to disassemble it: IMPORTANT: You must drain out any remaining water inside the piping system of the control base before replacing any parts. Tools required: One adjustable wrench and one Philip screwdriver.

  • Page 30: Warranty

    Other than this warranty, and other legal rights in your country, no further warranties are implied. To the extent possibly in your country, in no event shall Intex be liable to you or any third party for direct or consequential damages arising out of the use of your PureSpa, or Intex or its agents’ and employees’...
  • Page 31 (267) SPA HEADREST ENGLISH, FRENCH 4.875” X 7.25” 04/09/2018 ® INTEX OWNER'S MANUAL SPA HEADREST READ AND FOLLOW ALL INSTRUCTIONS BEFORE USING THIS PRODUCT WARNING • Assembly and disassembly by adults only. This product is not a toy. • This is not a flotation device. • Remove product before placing a cover over the spa tub. FAILURE TO FOLLOW THESE WARNINGS MAY RESULT IN SERIOUS INJURY OR DEATH.
  • Page 32 (267) SPA HEADREST SPANISH, GERMAN 4.875” X 7.25” 04/09/2018 ® INTEX MANUAL DE USUARIO APOYACABEZAS DEL SPA LEA, COMPRENDA Y SIGA TODAS LAS INSTRUCCIONES CUIDADOSAMENTE ANTES DE INSTALAR Y UTILIZAR ESTE PRODUCTO ADVERTENCIA • El montaje y desmontaje se deberá realizar sólo por adultos. Este producto no es un juguete. • Esto no es un objeto flotante. • Retirar todos los productos antes de colocar la tapa del spa. NO SEGUIR LAS INSTRUCCIONES DE SEGURIDAD PUEDE OCASIONAR LESIONES GRAVES, ELECTROCUCIÓN O LA MUERTE.
  • Page 33 (267) SPA HEADREST ITALIAN, DUTCH 4.875” X 7.25” 04/09/2018 ® MANUALE UTENTE DELLA INTEX POGGIATESTA SPA LEGGERE ATTENTAMENTE E CAPIRE LE ISTRUZIONI DI SEGUITO RIPORTATE PRIMA DI MONTARE ED UTILIZZARE IL PRODOTTO ATTENZIONE • La pompa deve essere assemblata e disassemblata solo da un adulto. Questo prodotto non è un giocattolo. • Non è un dispositivo di galleggiamento. • Togliere qualuque prodotto prima di posizionare la copertura della Spa. IL MANCATO RISPETTO DELLE AVVERTENZE RIPORTARE POTREBBE CAUSARE LESIONI GRAVI O MORTE.
  • Page 34 (267) SPA HEADREST PORTUGUESE, DANISH 4.875” X 7.25” 04/09/2018 ® INTEX MANUAL DO USUÁRIO ENCOSTO DE CABEÇA PARA O SPA LEIA E SIGA CORRETAMENTE AS INSTRUÇÕES DE MONTAGEM E SEGURANÇA AVISOS • Deve ser montado e desmontado somente por adultos. Este produto não é um brinquedo. • Este não é um dispositivo de flutuação. • Nunca permita ninguém sentar, levantar, ou equilibrar-se no porta-copos do Spa. NÃO SEGUIR ESTES AVISOS PODE CAUSAR LESÕES GRAVES OU MORTE.
  • Page 35 (267) SPA HEADREST POLISH, RUSSIAN 4.875” X 7.25” 04/09/2018 ® INSTRUKCJA OBSŁUGI FIRMY INTEX ZAGŁÓWEK SPA PRZECZYTAJ I POSTĘPUJ ZAWSZE ZGODNIE ZE WSZYSTKIMI ZASADAMI ZAWARTYMI W INSTRUKCJI ZANIM ZACZNIESZ MONTAŻ PRODUKTU OSTRZEŻENIE • Montaż i demontaż tylko przez osoby dorosłe. Ten produkt nie jest zabawką. • To nie jest sprzęt pływający. • Usuń produkt przed umieszczeniem pokrywy na wannie Spa. NIE PRZESTZEGANIE TYCH OSTRZEŻEŃ MOŻE SPOWODOWAĆ POWAŻNE OBRAŻENIA LUB ŚMIERĆ.
  • Page 36 备注：该插图只做说明之用。 可能不代表真实的产品。不 按比例。 11921 排气 / 充水栓 ©2018 Intex Marketing Ltd. - Intex Development Co. Ltd. - Intex Recreation Corp. All rights reserved/Tous droits réservés/Todos los derechos reservados/Alle Rechte vorbehalten. Printed in China/Imprimé en Chine/Impreso en China/Gedruckt in China. ®™ Trademarks used in some countries of the world under license from/®™ Marques utilisées dans certains pays sous licence de/Marcas registradas utilizadas en algunos países del mundo bajo licencia de/Warenzeichen verwendet in...
  • Page 37 Per avere maggiori informazioni riguardo la manutenzione, riparazione, ordinazione delle parti di ricambio contattate uno degli uffici elencati nella lista sotto o visitate il sito www.intexcorp.com per consultare le risposte alle domande più frequenti. Dit is de adressenlijst van alle Intex afdelingen. Voor vragen over service of het bestellen van onderdelen, gelieve contact op te nemen met het adres in uw regiogebied.
  • Page 38 Development Co. Ltd., G.P.O Box 28829, Hong Kong & Intex Recreation Corp., P.O. Box 1440, Long Beach, CA 90801 • Distributed in the European Union by/Distribué dans l’Union Européenne par/Distribuido en la unión Europea por/Vertrieb in der Europäischen Union durch/Intex Trading B.V., Venneveld 9, 4705 RR Roosendaal – The Netherlands www.intexcorp.com...
  • Page 39 REPAIR KIT KIT DE RÉPARATION PARCHE DE REPARACIÓN Debido a restricciones en el transporte, no se incluye cola En raison des restrictions de transport, la colle n’est pas Due to shipping restrictions, glue is not provided. Use PVC or de pegado. Utilice una cola de pegado con base de PVC o fournie.
  • Page 40 (1510) SPA GROUNDING INSTRUCTION 7.5” X 10.3” PANTONE 295U 08/22/2014 English 1510 IMPORTANT: Do not setup the spa on wooden decks or platforms. Do not put any insulation material between the ground and the control base unit. For outdoor installation – the spa control base unit shall be setup on a smooth and level cement ground.
  • Page 41 (1510) SPA GROUNDING INSTRUCTION 7.5” X 10.3” PANTONE 295U 08/22/2014 English 1510 IMPORTANTE: Não monte o Spa em decks de madeira ou plataformas. Não coloque nenhum material de isolamento entre o solo e a base da unidade de controle. Para a instalação ao ar livre - a base da unidade de controle do Spa deve ser confi...
  • Page 42 (1901) setup video QR code instruction EN FR SP GE IT DU PT DA PL RU JA CH 7.5” X 10.3” 05/30/2018 1901 QR Code / Code QR / Código QR / QR-Code / Codice QR / QR code / Código QR / QR-kode / Kod QR / QR-код...
  • Page 43 (1901) setup video QR code instruction GR, CZ, HR, LV, LT, SK, SLO, RO, BG, TR, SRB, HU 7.5” X 10.3” 05/30/2018 1901 Κωδικός QR / QR kód / QR kôd / QR kods / QR kodas / QR kód / Koda QR / Cod QR / QR код...
