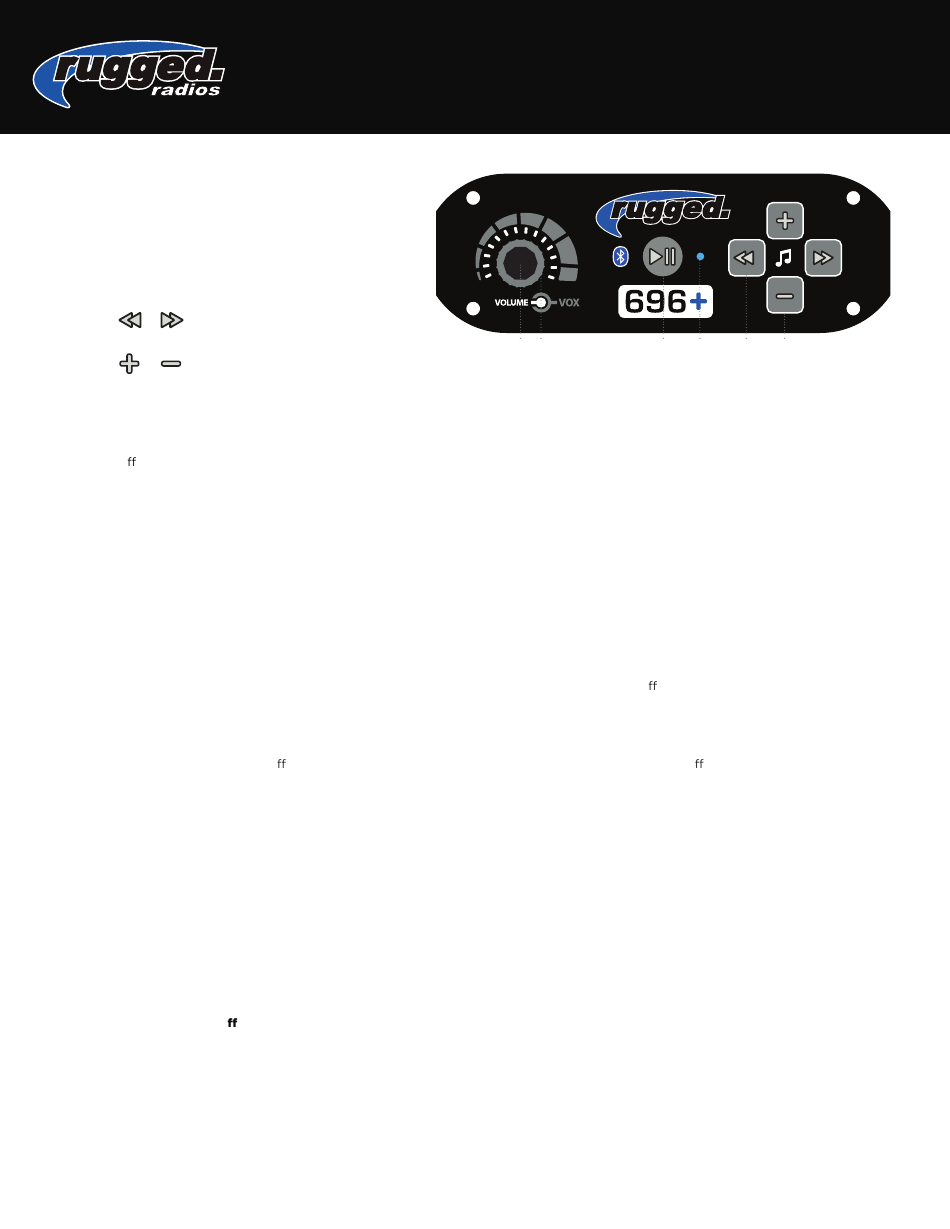

Rugged Radios 696 Plus User Manual

1. COMMUNICATION VOLUME / VOX

VOLUME / VOX knob (1A) controls intercom volume.
Knob (1B) controls voice activation (VOX) sensitivity.

2. PLAY / PAUSE

Plays or pauses music, answers or ends phone calls.

3. LED

Blue indicates power is on, red indicates transmitting.

4. SKIP

Quick press or skips forward or reverse.

5. MUSIC VOLUME

Quick press or increases/decreases volume.

Intercom Operation

Power On / O the intercom by rotating the volume control (1A) clockwise / counterclockwise.

VOX Adjustment

Rotate the VOX and VOLUME all the way clockwise, putting the mic in an open state. Listen for the ambient sound picked up. Slowly rotate
the VOX counter-clockwise one click at a time until the ambient noise is silenced. Now set VOLUME at about 50%, position the mic
AGAINST THE LIPS, and begin speaking normally. You should hear your own voice (Side-Tone). Adjust volume for comfort. If your voice does
not open the mic, increase VOX slightly (clockwise). If the mic opens too easily, decrease VOX slightly (counter-clockwise).
NOTE: Bluetooth audio will attenuate or "dim down" when VOX activates.
PRO TIPS
• The higher the background noise level (engine, wind, etc.), the further counterclockwise you will need to adjust the VOX control.
• Be sure to have all helmet / headset microphones positioned so they are touching the lips. This ensures proper microphone
activation and promotes noise canceling.
• If the music is always quiet, adjust the VOX control on the intercom until the mic turns o
• Only driver can speak on cell phone call.

Bluetooth Pairing for Music and Cell

• Start with the intercom powered o
• Turn on the intercom.
• Turn on the phone or device's bluetooth and begin scanning (scanning is automatic on most phones).
• Wait for "RUGGED696+" to be displayed on the list of found devices.
• Select "RUGGED696+" and wait for the device to pair. If pairing is not successful, restart the process.

2-Way Radio Use

Received audio is controlled by your radio's volume control, not the intercom volume control. Push-To-Talk (PTT) Buttons are only used for
transmitting over a 2-way radio connected to your intercom. To transmit, press and hold the PTT button, speak, then release when finished.
PRO TIPS
• PTT buttons only activate one mic (ie: Driver PTT activates Driver mic). If receiving radios do not hear your voice but hear a
"click" indicating your radio is transmitting, verify your PTT and headset cables are in the correct ports.
• When transmitting the LED on both the intercom and radio will illuminate red.
• The radio's hand mic is incompatible with intercom systems. We do recommend storing it in the vehicle in case of emergency
(in which case, power o
Rugged Radios
696 PLUS INTERCOM
USER MANUAL
and the bluetooth function of your phone or device powered o .
the intercom).
| www.ruggedradios.com
1A 1B 2
and music volume increases.
| 888-541-7223
3 4 5
