home casual PALAMOS Quick Start Manual

PALAMOS DEEP SEATING CHAIR
IMPORTANT: PLEASE READ COMPLETE INSTRUCTION SHEET PRIOR TO ASSEMBLY!
Identify all parts packed in carton against the parts list. Remove all protective
materials, place parts on a nonabrasive surface to avoid scratching. If any parts
are missing or damaged, DO NOT attempt to assemble. Please contact our
customer service center (Monday-Friday 9:00 a.m.-5:00 p.m.CST) at
1-866-538-7735 (fax:952-946-0031), e-mail: custserv@homecasual.net or
visit our website at www.homecasual.net.

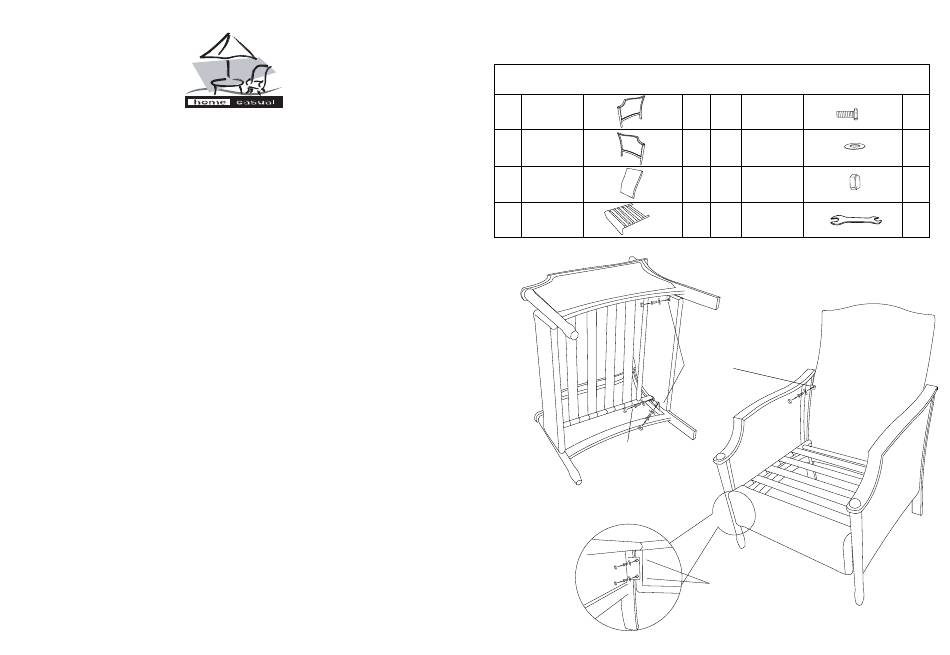

STEP 1
Place chair back (C) on a flat, soft surface.
Attach chair arm (left) (A) to chair back (C) by using bolts (E) with metal washers (F)
through each hole of the chair arm and into the chair back (C). Repeat this step for
chair arm (right) (B). (DO NOT TIGHTEN COMPLETELY !)
STEP 2
Attach chair seat (D) to the chair arm by using bolts (E) with metal washers (F)
through each hole of the chair arm and into the chair seat (D).
(DO NOT TIGHTEN COMPLETELY !)
STEP 3
Attach chair seat (D) to the chair back (C) by using bolts (E) with metal washers (F)
through each hole of the chair seat and into the chair back.
STEP 4
Tighten all bolts with the Hex wrench. Cover all bolts with plastic bolt caps.
Place the cushion on the chair seat.
Your chair is now ready for use.
Thank you for choosing a Home Casual product!
Parts List
CHAIR ARM
A
(LEFT WHEN
SITTING)
CHAIR ARM
B
(RIGHT WHEN
SITTING)
C
CHAIR BACK
D
CHAIR SEAT
A
C
D
B
Step 3
(detail photo)
2
E
BOLT (M6x15)
2 F
METAL WASHER
PLASTIC BOLT
G
2
CAP
HEX WRENCH
H
2
Step 1
C
B
D
Step 2
20
20
20
1
A
