Table of Contents

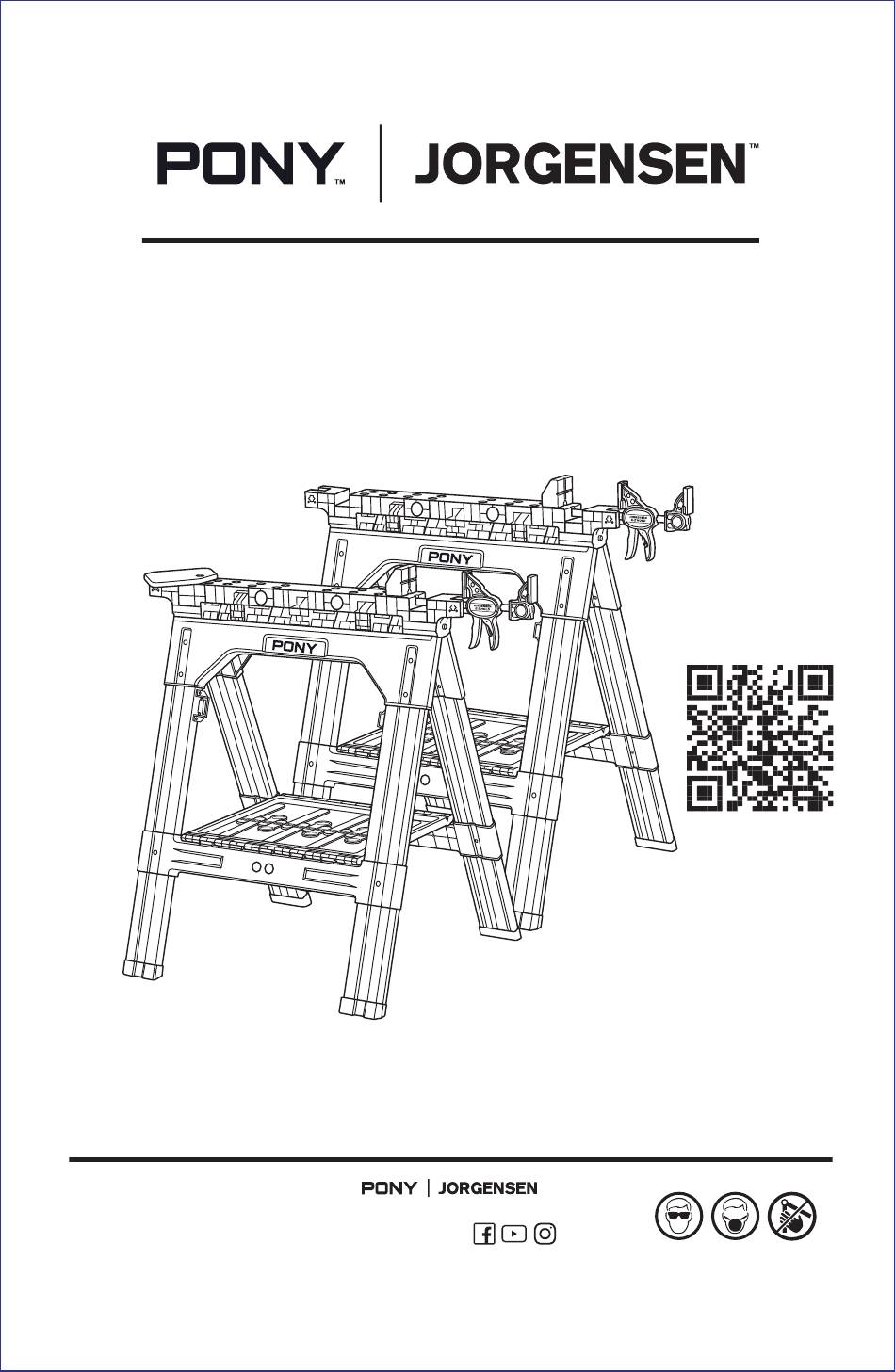

#60400
OWNER'S GUIDE
GUIDE DE L'UTILISATEUR
INSTRUCCIONES DE USO
PUS H
PUS H
PUS H
PUS H
PUS H
PUS H
SCAN TO VIEW VIDEO
SAISIR L'IMAGE POUR
VISIONNER LA VIDÉO
ESCANEAR PARA VER VÍDEO
CLAMPING SAWHORSES
TRÉTEAUX À MÂCHOIRES
CABALLETES DE SUJECIÓN
271 Mayhill Street Saddle Brook, NJ 07663 USA
ponyjorgensen.com
Made in China | Fabriqué en Chine | Hecho en China
Rev 08/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JORGENSEN 60400 and is the answer not in the manual?

Questions and answers

Related Manuals for Pony JORGENSEN 60400

Summary of Contents for Pony JORGENSEN 60400

  • Page 1 #60400 OWNER'S GUIDE GUIDE DE L’UTILISATEUR INSTRUCCIONES DE USO PUS H PUS H PUS H PUS H PUS H PUS H SCAN TO VIEW VIDEO SAISIR L’IMAGE POUR VISIONNER LA VIDÉO ESCANEAR PARA VER VÍDEO CLAMPING SAWHORSES TRÉTEAUX À MÂCHOIRES CABALLETES DE SUJECIÓN 271 Mayhill Street Saddle Brook, NJ 07663 USA ponyjorgensen.com...
  • Page 2 IMPORTANT Please read the instructions in this booklet thoroughly before use. Understanding how this sawhorse works and setting it correctly is fundamental to obtaining a satisfactory result. WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may cause injury and misuse.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Do not load with more than 600 lbs. (272 kgs) on one piece sawhorse and 1200 lbs. (545 kgs) on two sawhorses. Do not leave heavy loads on work surface for extended periods of time. 2. Ensure Sawhorse is set up on firm, level ground. Check for stability before each use. 3.
  • Page 4 OPERATION: OPENING THE SAWHORSE The portable clamping Sawhorses are packaged completely folded. To open: 1. Place the Sawhorse upright on the floor. 2. Open the legs fully until the tool tray is flat. The Sawhorse legs and tool tray should create an “A” shape. (Figure 1) PUS H PUS H PUS H...
  • Page 5 Adjust the trigger clamp according to your needs. (Figure 3) Figure 3 PUSH Remove the stationary jaw from the clamp by pushing the press button. Insert the trigger clamp to the slot on Sliding the moveable jaw along the the sides of the sawhorse. bar of the clamp to the other end.
  • Page 6 Bench dogs and quick clamps can be used for multiple clamping options.(Figure 6) Figure 6 PU SH PUS H PUS H PUS H PUS H PU SH 12" E-Z HOLD Trigger Clamps can be used independently if desired. PUSH ONE-HAND CLAMPING QUICK RELEASE LEVER EXPANDING...
  • Page 7 Using standard off the shelf lumber, a premade project panel for the tabletop, you can build yourself a solid wood sawhorse desk.(Figure 7) Figure 7 Use the built-in tool tray for hardware and other parts storage. (Figure 8) PUS H PUS H Figure 8...
  • Page 8 ANGLE CLAMP ADAPTER APPLICATION The Sawhorse comes with an angle clamp adapter which is perfect for joining corners when using with the Pony angle clamp. (Figure 9) Figure 9 P U S H P U S H P U S H...

  • Page 9: Maintenance

    If repair is not practical, Pony | Jorgensen may elect to replace the product or refund the purchase price in exchange for return of the defective product. Please contact Pony | Jorgensen by calling 1-800-776-2228 or contact marketing@ponyjorgensen.com.
