Summary of Contents for Adaptiv Mini CAM-PO3-AD

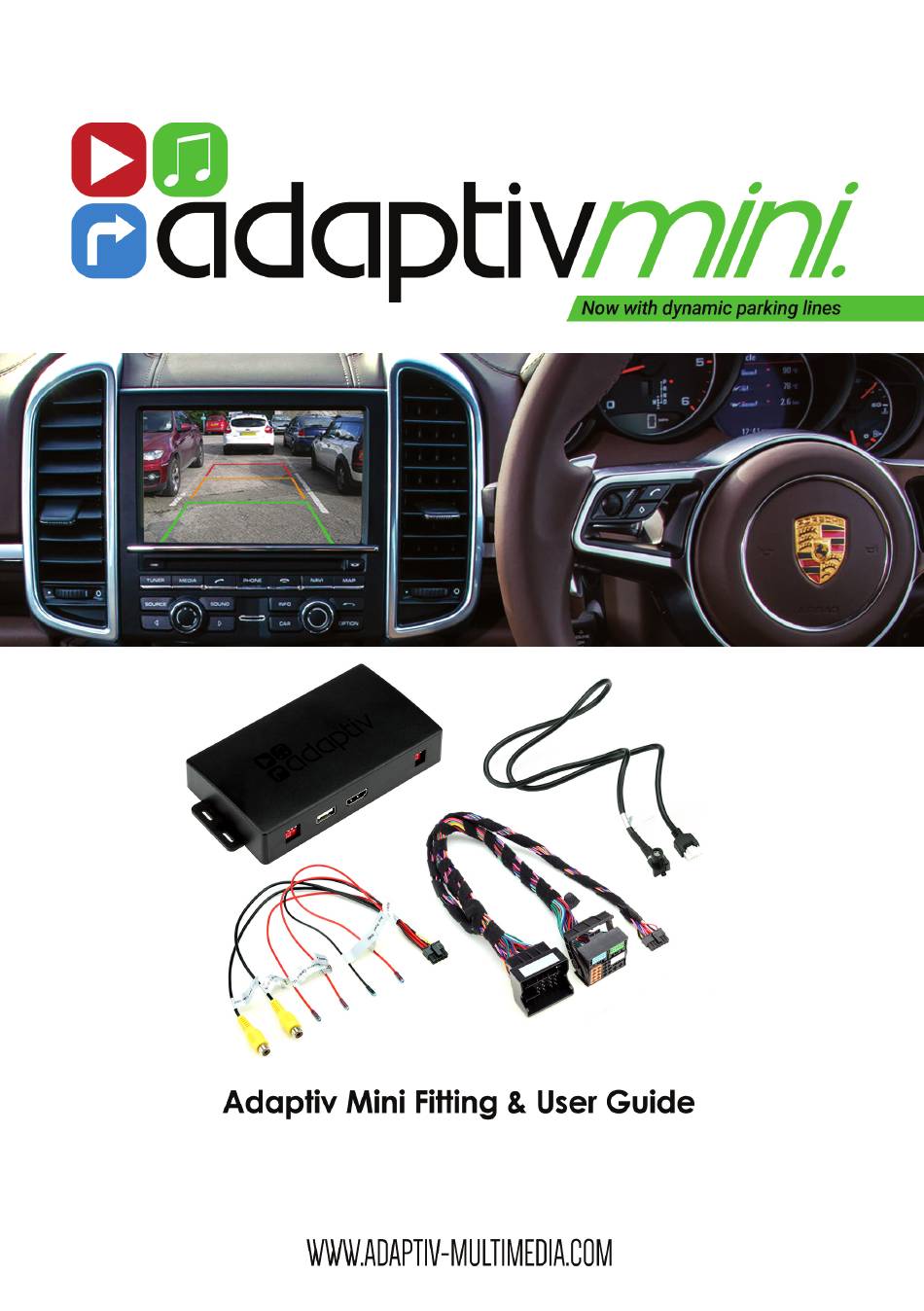

- Page 1 012020_V1 CAM-PO3-AD WWW.ADAPTIV-MULTIMEDIA.COM...
- Page 2 ABOUT Adaptiv Mini Adaptiv Mini allows HDMI and Camera input to the OEM screen. Includes removable dynamic parking guidelines. This plug and play, Mini interface adds HDMI to connect your Apple or Android device allowing you to display the contents on the vehicles original screen. Inputs for front and rear aftermarket cameras also come as standard with the Mini.
- Page 3 CONNECTION DIAGRAM NOTE: All connections are made at the rear of the OEM head unit. No connections need to be made directly to the display. DIP SWITCH SETTINGS DIP 1: DIP 3: Whether the vehicle has Whether the vehicle OEM reverse camera has aftermarket reverse ( ON: YES OFF: NO ) camera ( ON: YES OFF:...
- Page 4 HDMI Access Select AUX In from the OEM Source Menu. Hold MEDIA Button for 2 seconds to switch between OEM screen and Adaptiv mini HDMI screen. Video In Motion Warning - 10mph Hold MENU Button (or press top right corner of...
